Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Corsica V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

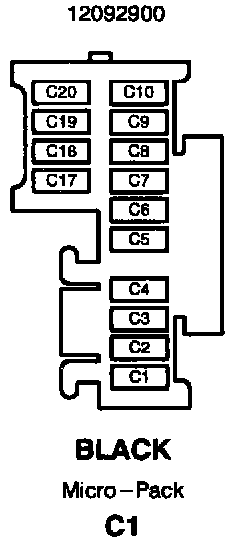

Harness Connector Faces: Radio- C1:

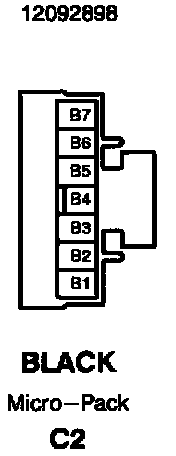

Harness Connector Faces: Radio- C2:

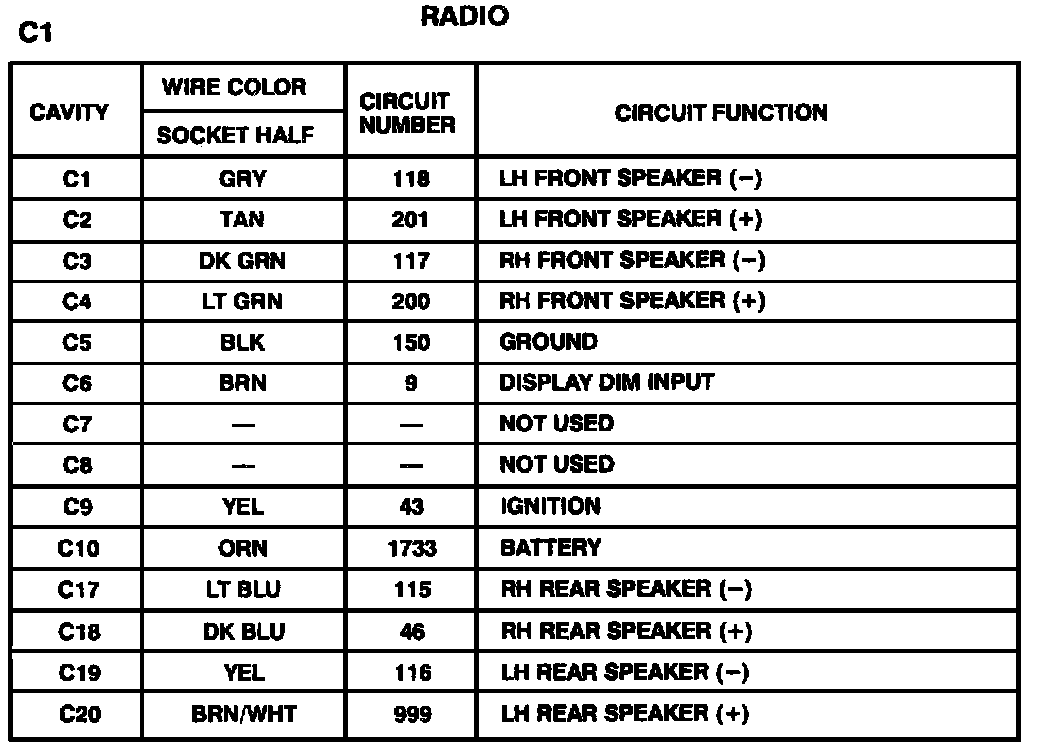

Harness Connector Faces: Radio- C1 (Description):

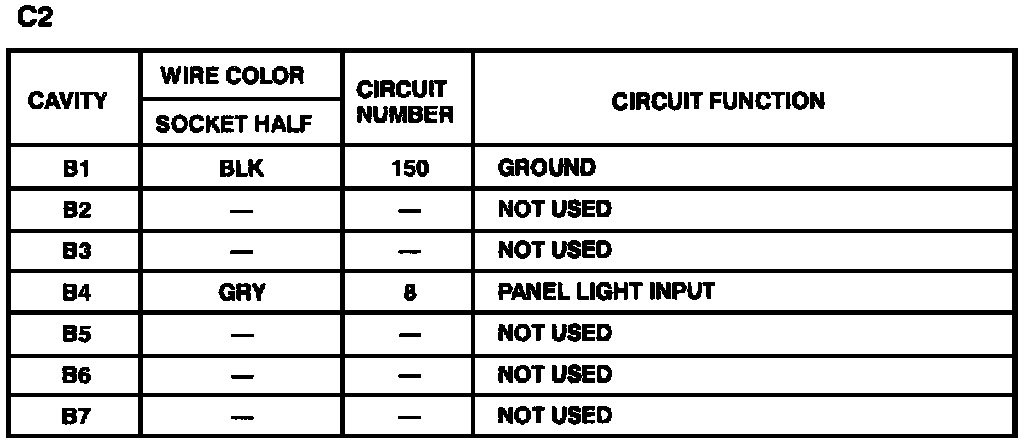

Harness Connector Faces: Radio- C2 (Description):
