Home >> Chevrolet >> 1994 >> Corsica V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Coolant Level Indicator Lamp >> Testing and Inspection

Coolant Level Indicator Lamp: Testing and Inspection

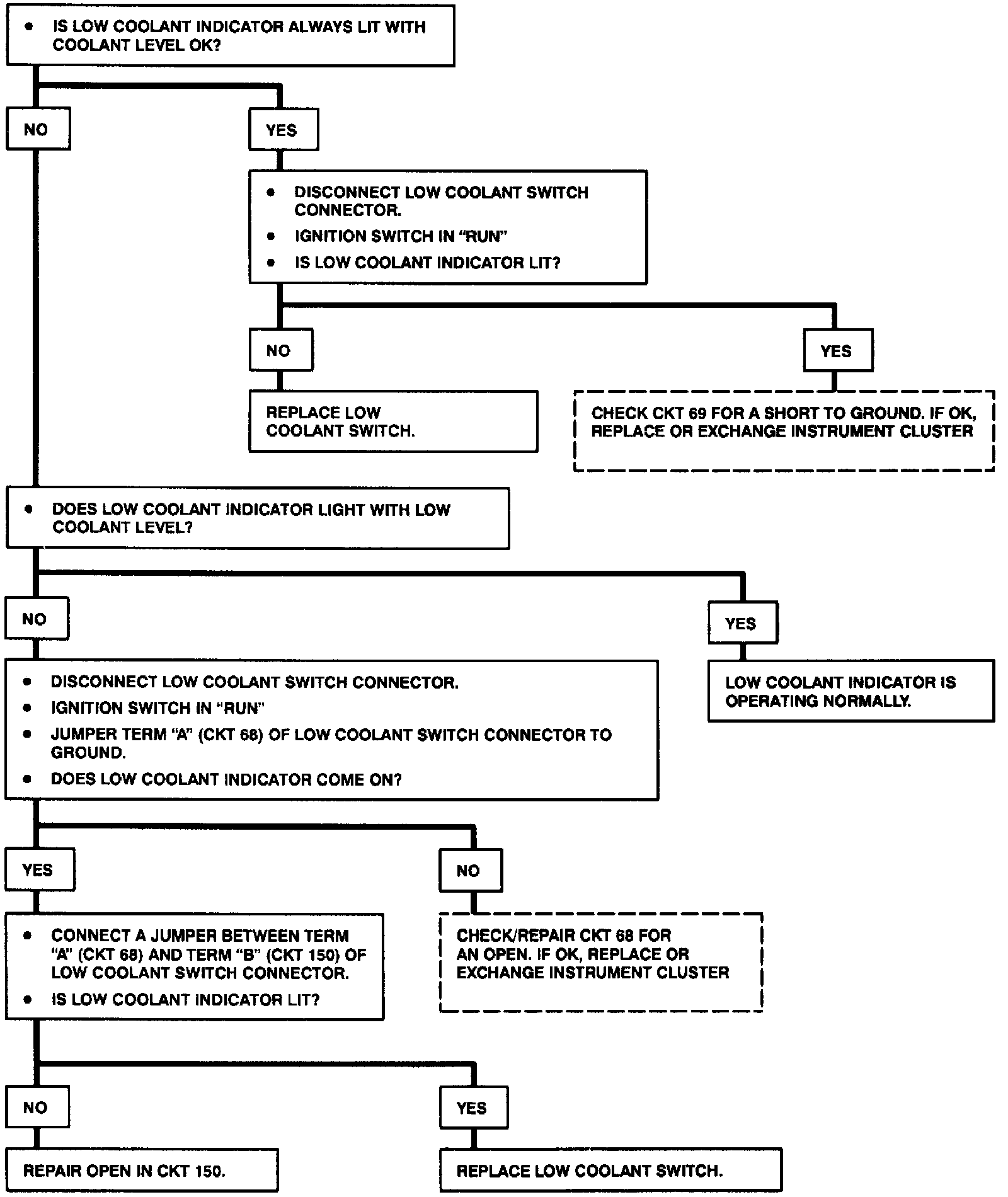

Fig. 34 Chart 5: Low Coolant Indicator Does Not Operate Properly:
