Corsica V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
With Gage Cluster
With Gage Cluster

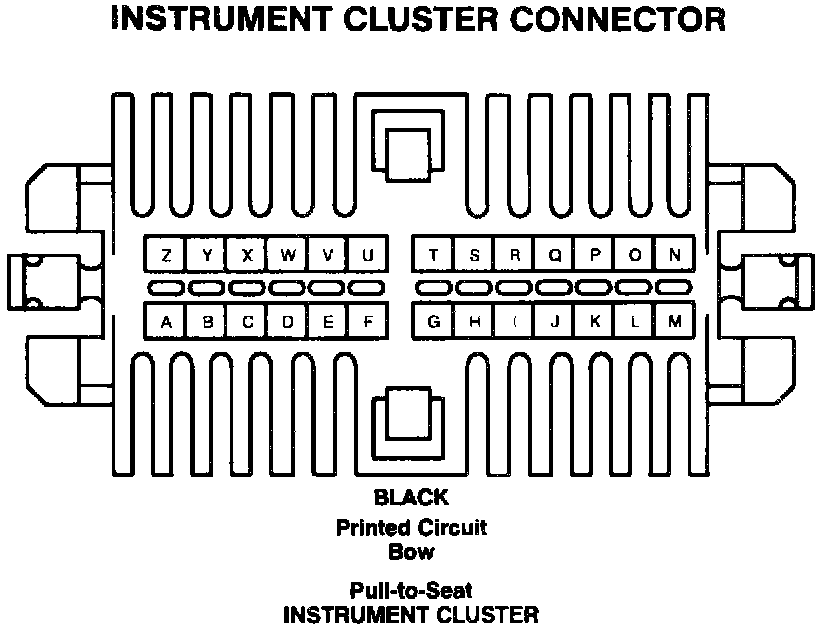

Instrument Cluster Connector:

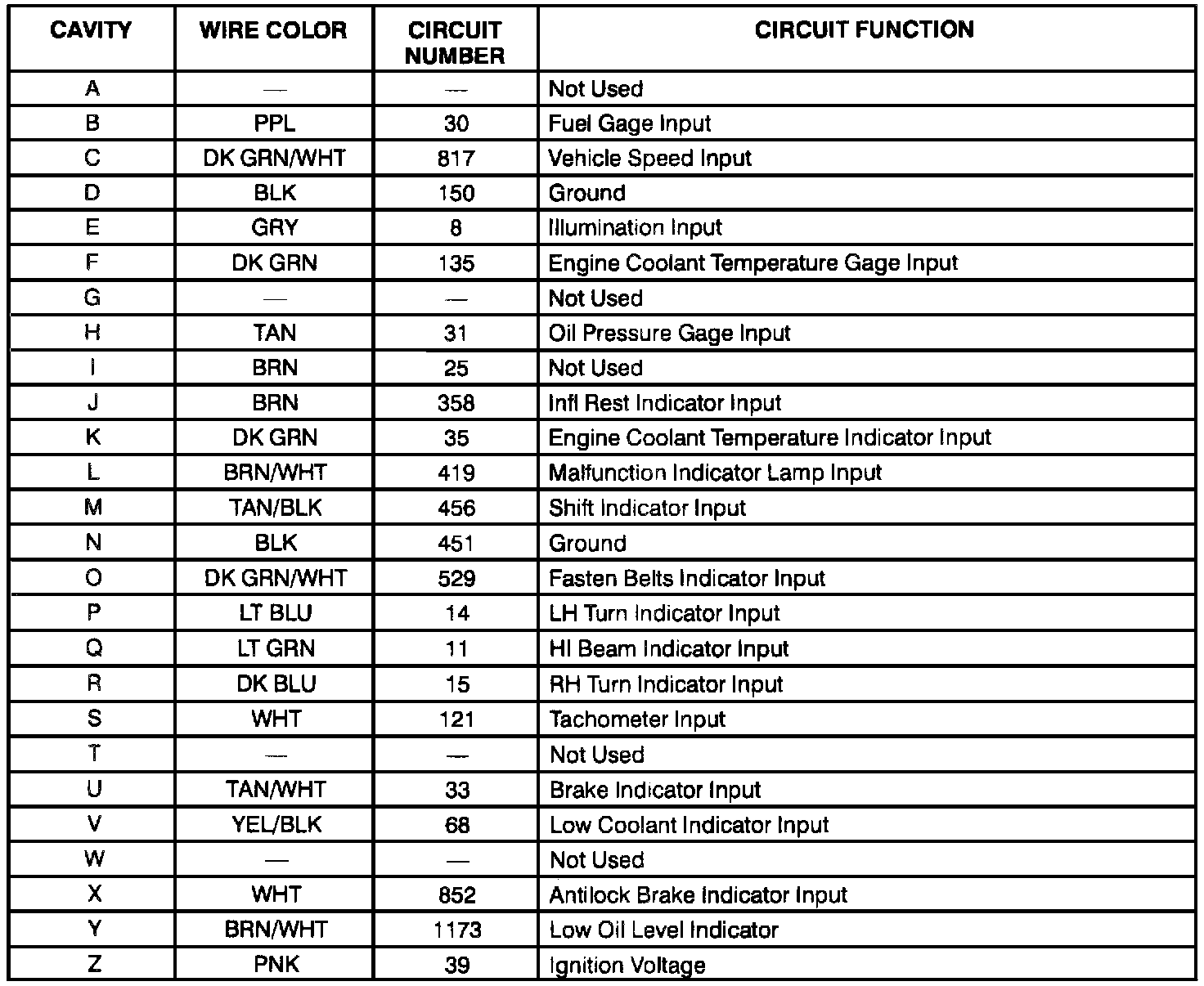

Instrument Cluster Connector:
