Oil Pressure Gauge: Testing and Inspection

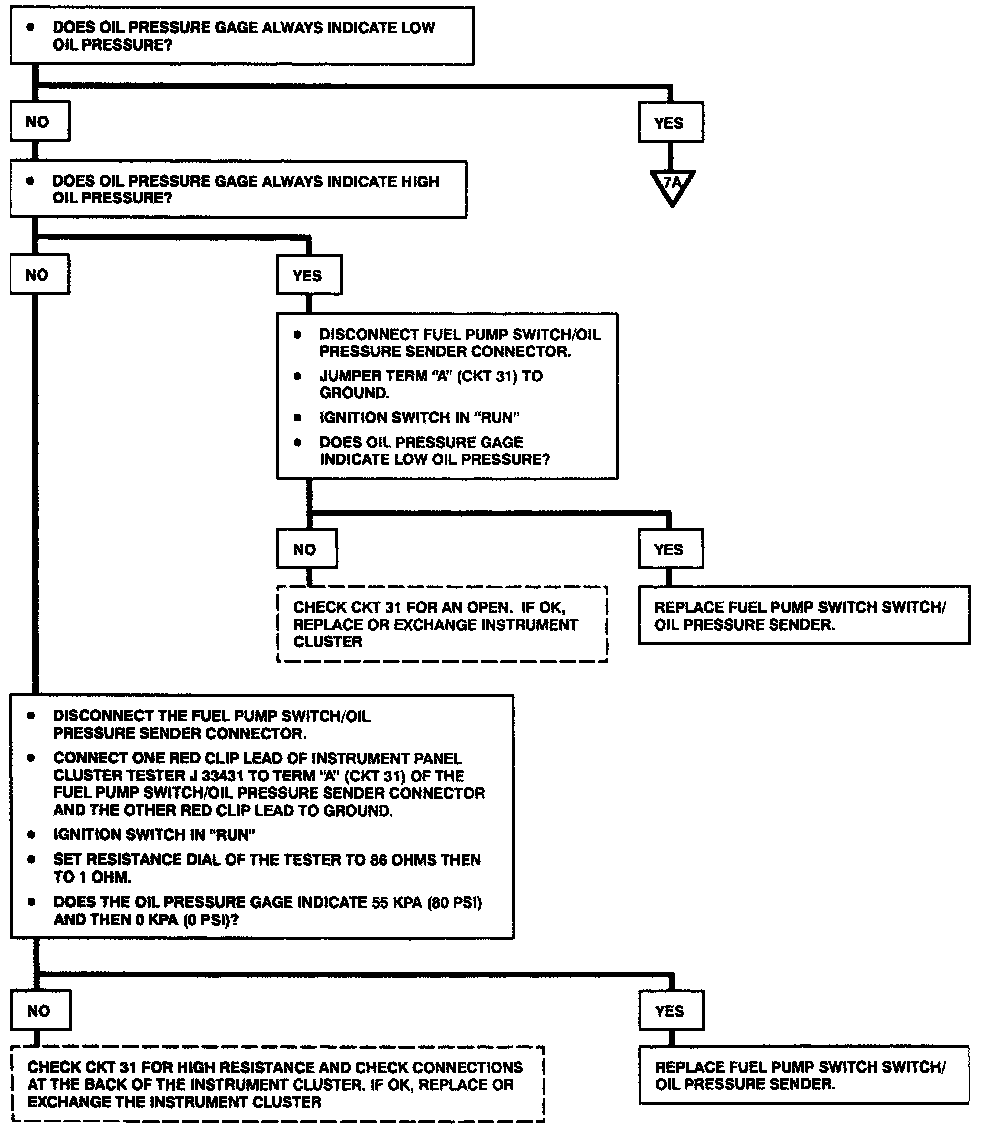

Fig. 36 Chart 7: Oil Pressure Gauge Does Not Operate Properly (Part 1 Of 2):

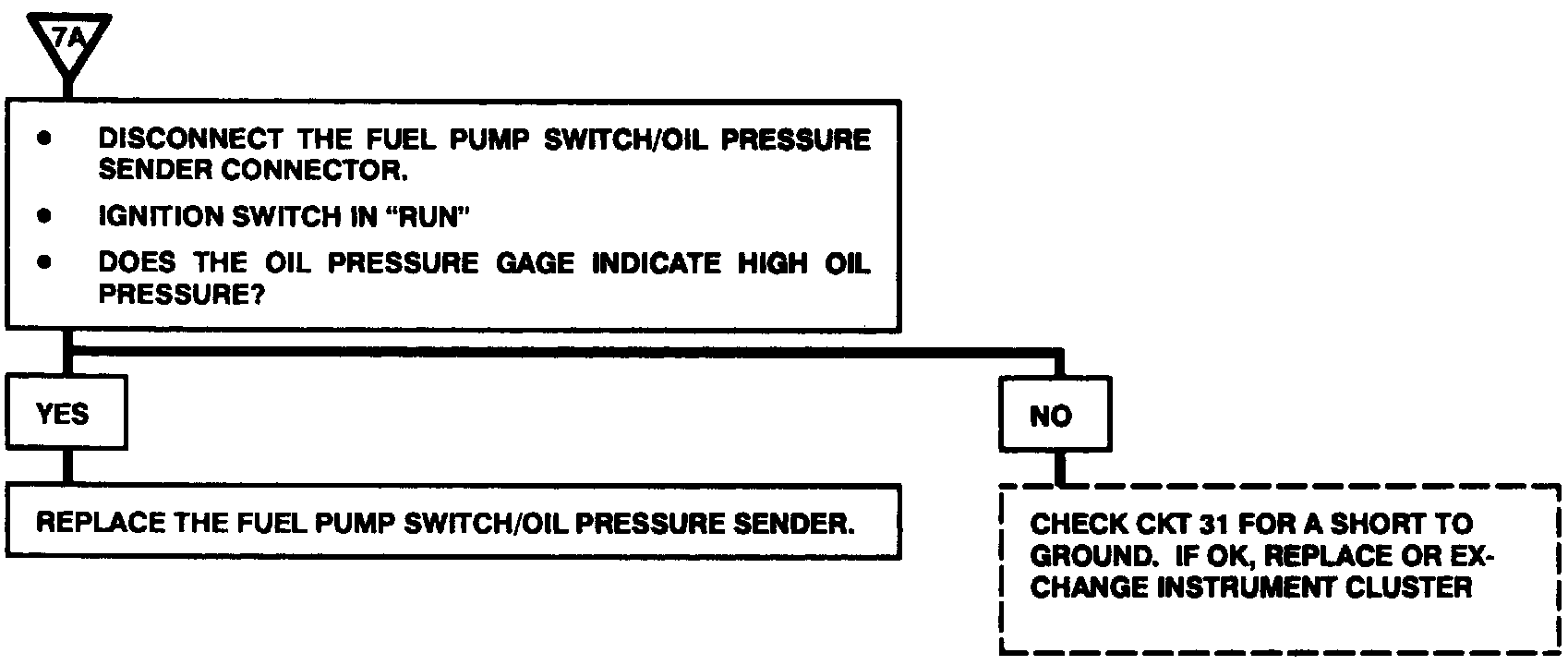

Fig. 36 Chart 7: Oil Pressure Gauge Does Not Operate Properly (Part 2 Of 2):
