Brake Light Switch: Description and Operation

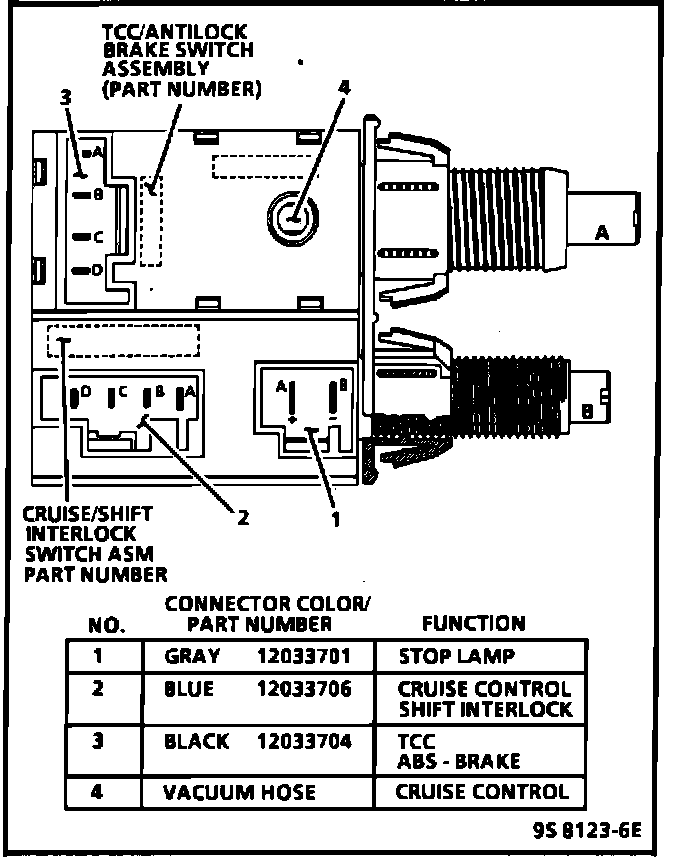

Brake (TCC And Cruise Input) Switch ID:

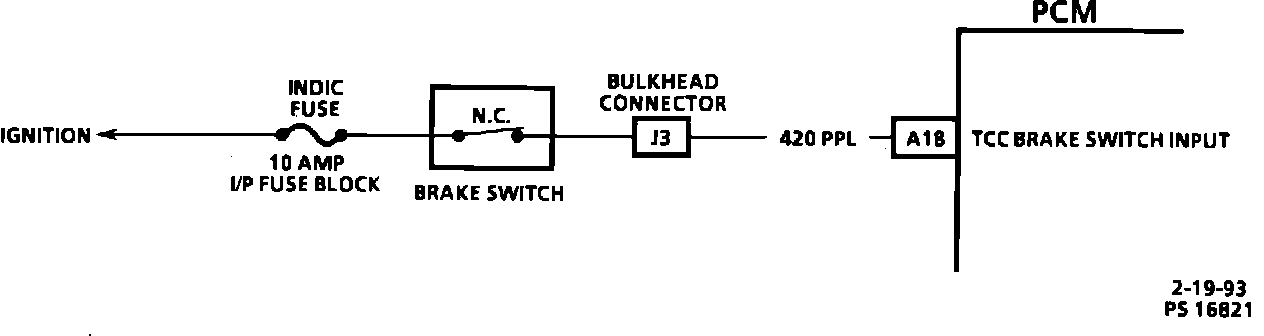

Brake Switch (TCC Brake Input) Circuit Diagram:







PURPOSE
The input from the brake switch tells the PCM to disengage the torque converter clutch and the cruise control.

LOCATION
The brake switch is located under the dashboard at the upper stop for the brake pedal lever.
