Engine Controls & Malfunction Indicator Lamp (MIL)

Multiport Fuel Injection: Engine Controls And Malfunction Indicator Lamp:



Multiport Fuel Injection: Engine Controls And Malfunction Indicator Lamp:

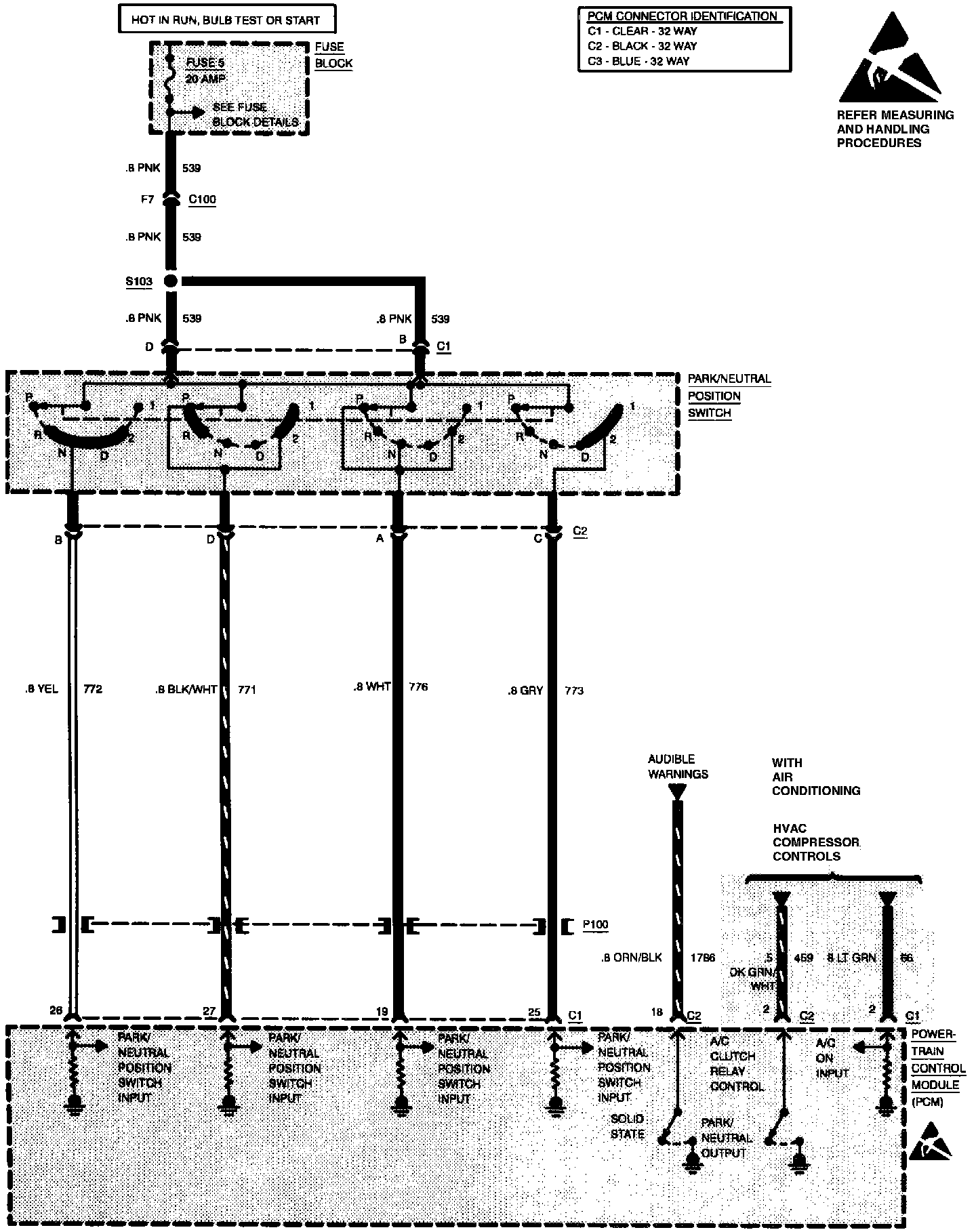

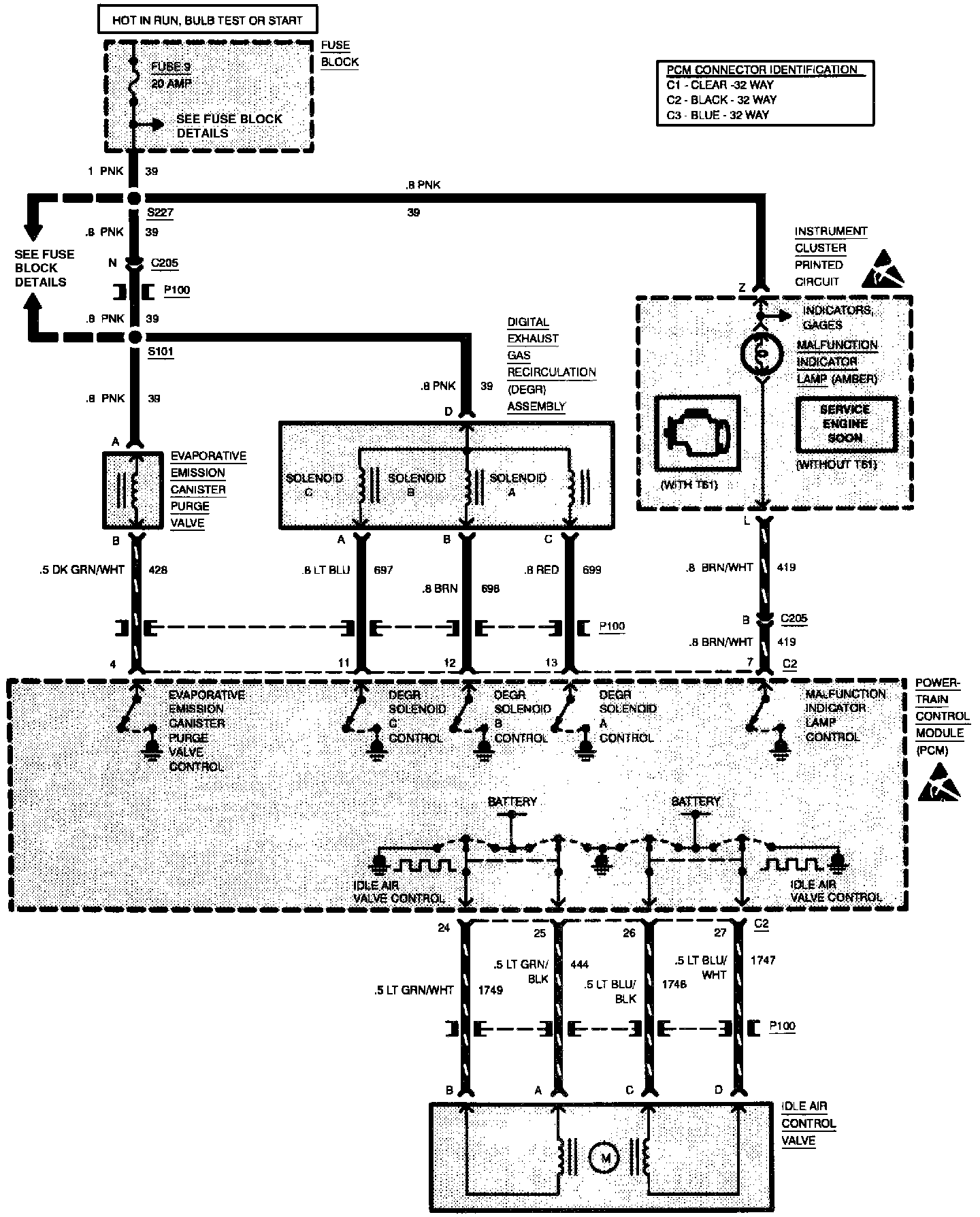

Wiring Diagram:
