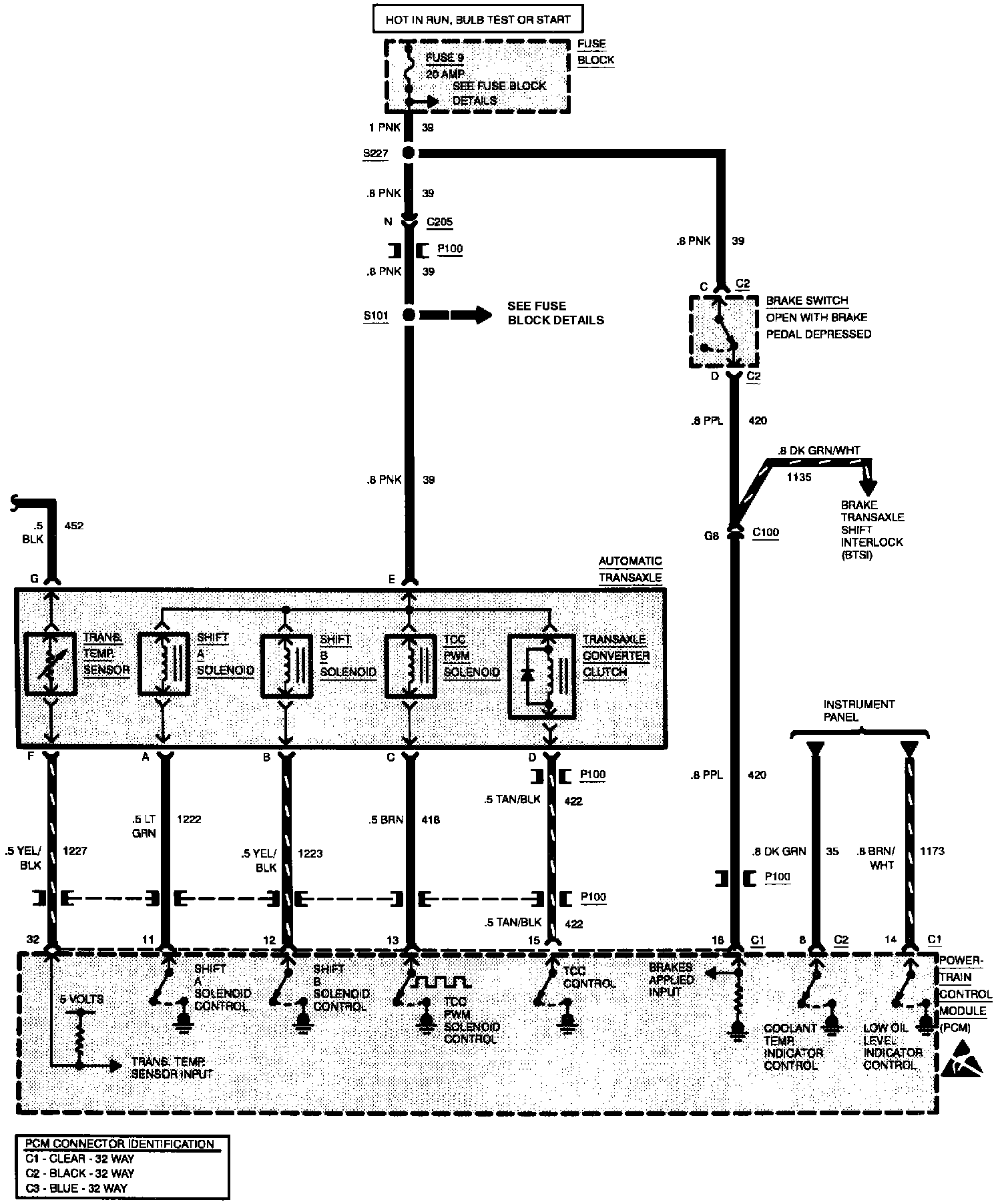

Torque Converter Clutch, Indicator Controls

Multiport Fuel Injection: Torque Converter Clutch/Indicator Controls:
