Wiring Diagrams

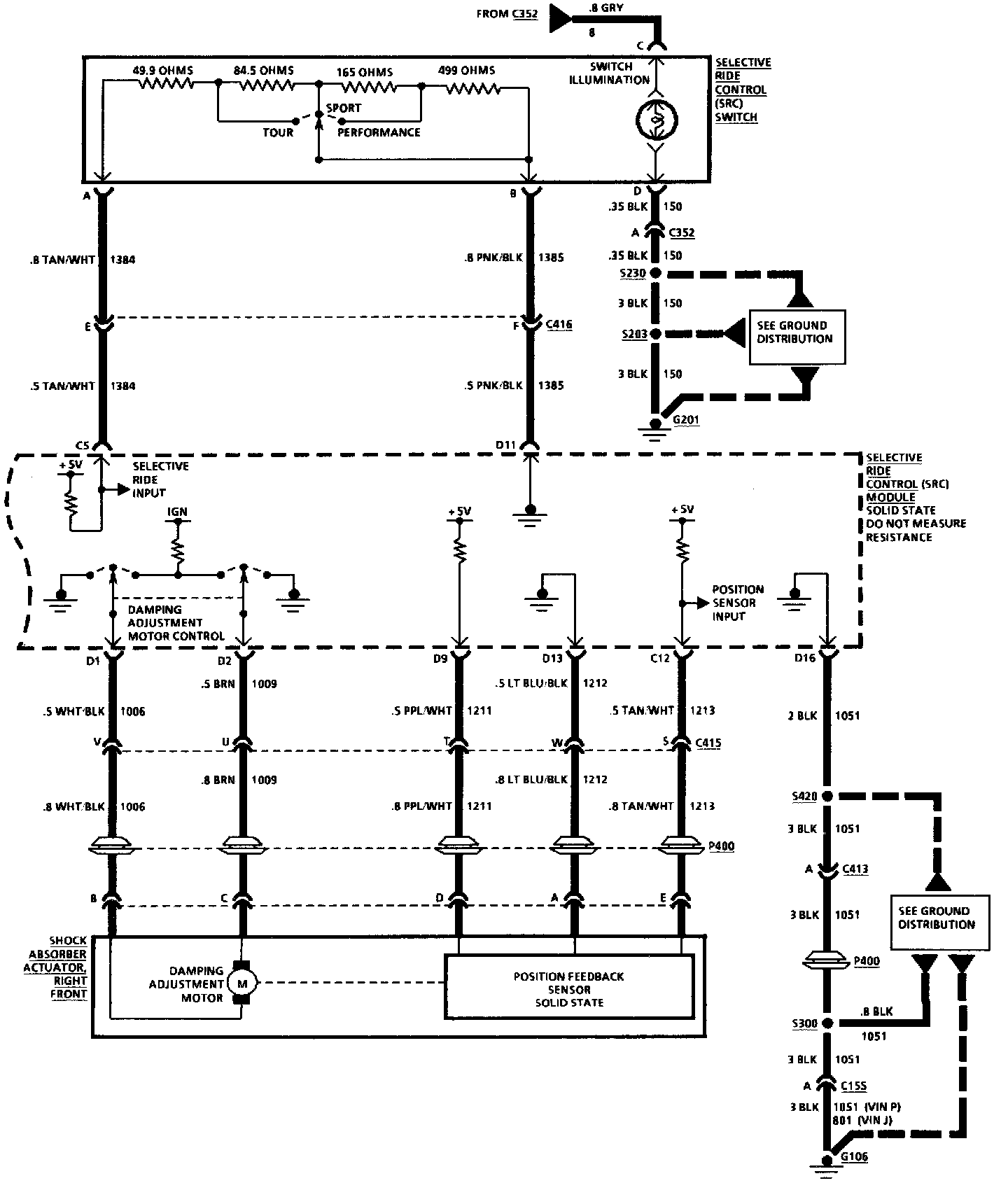

Ride Control: Selective Ride (Part 1 Of 4):

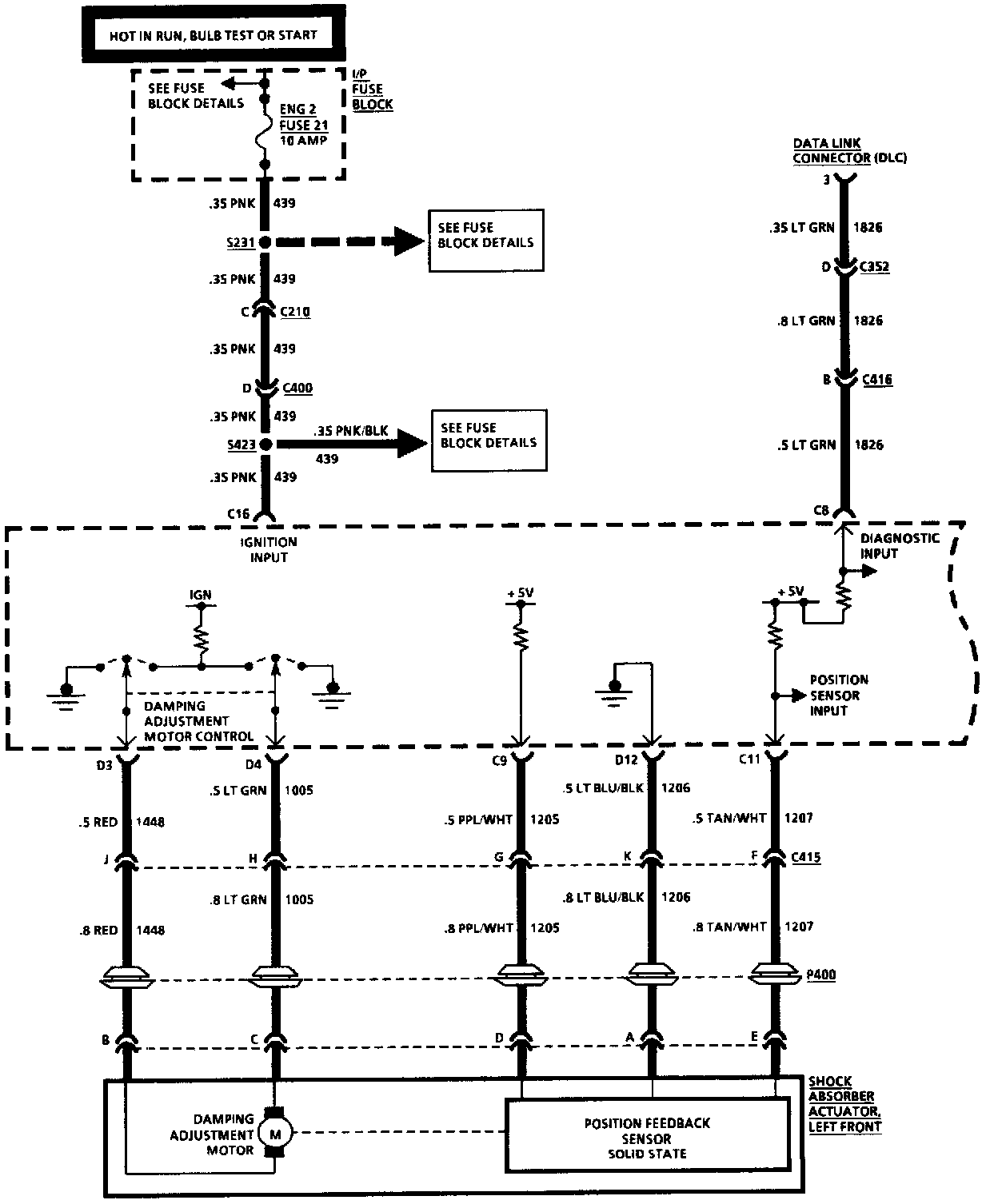

Ride Control: Selective Ride (Part 2 Of 4):

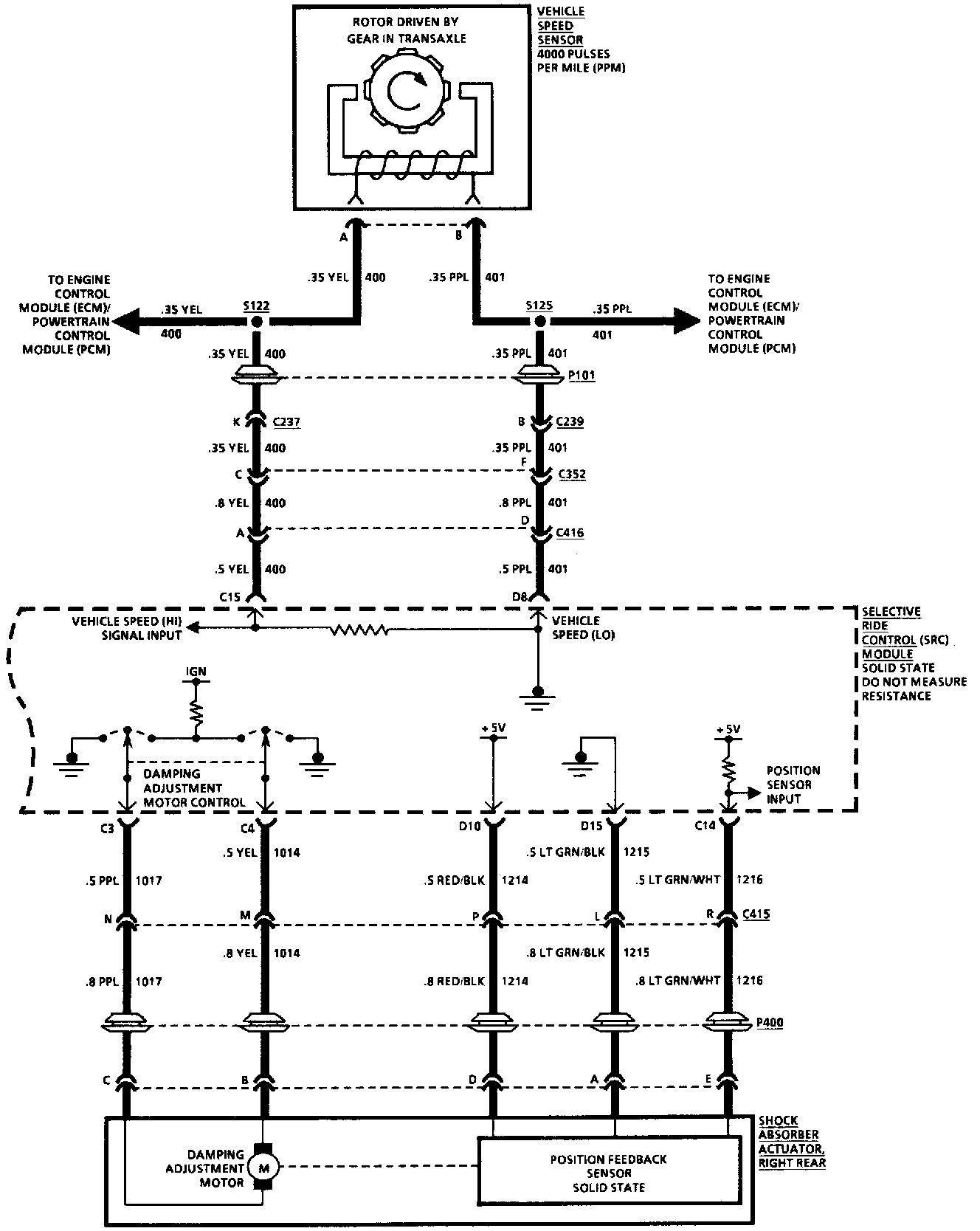

Ride Control: Selective Ride (Part 3 Of 4):

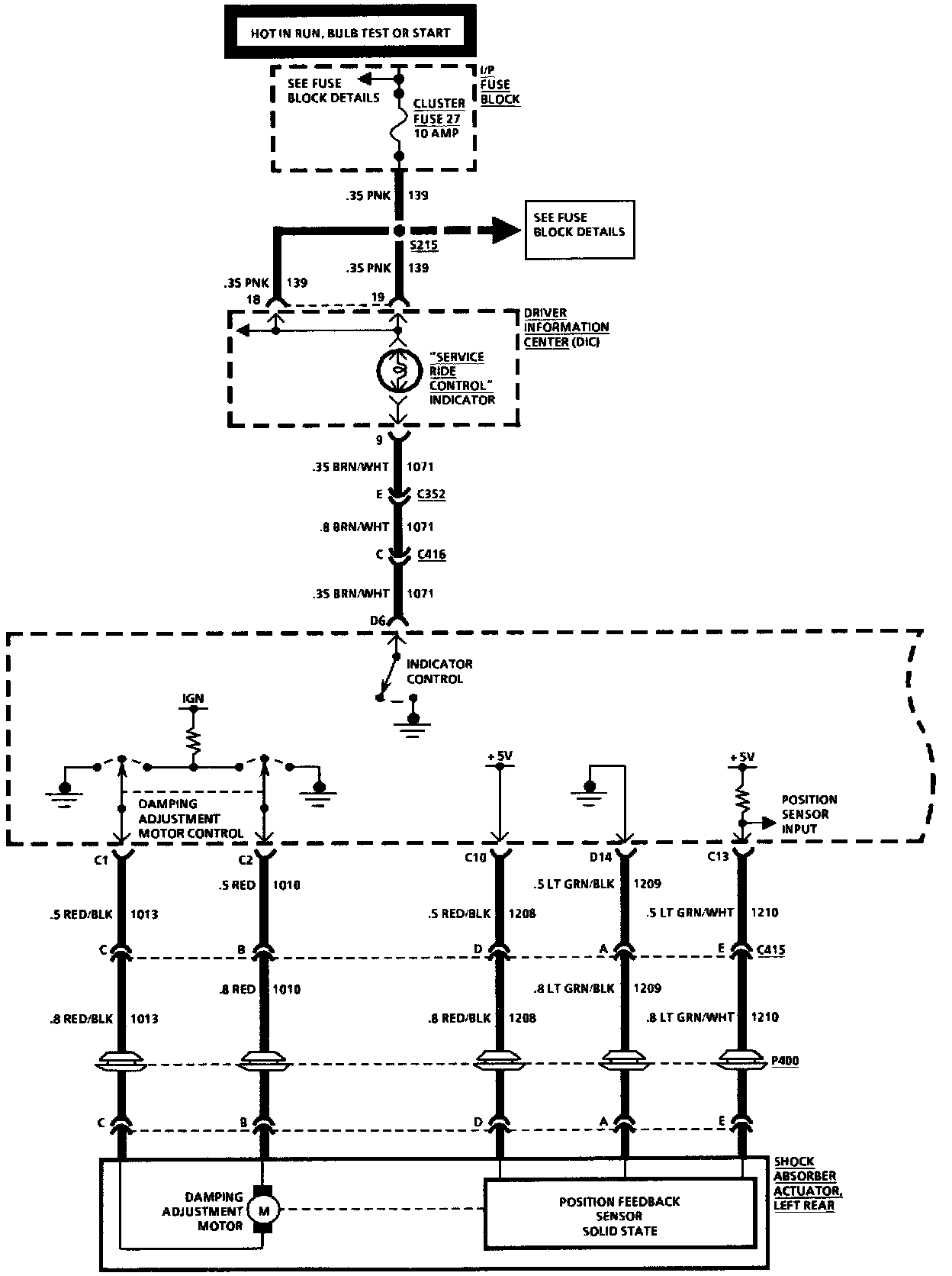

Ride Control: Selective Ride (Part 4 Of 4):
