Primary Injector
Primary Injector

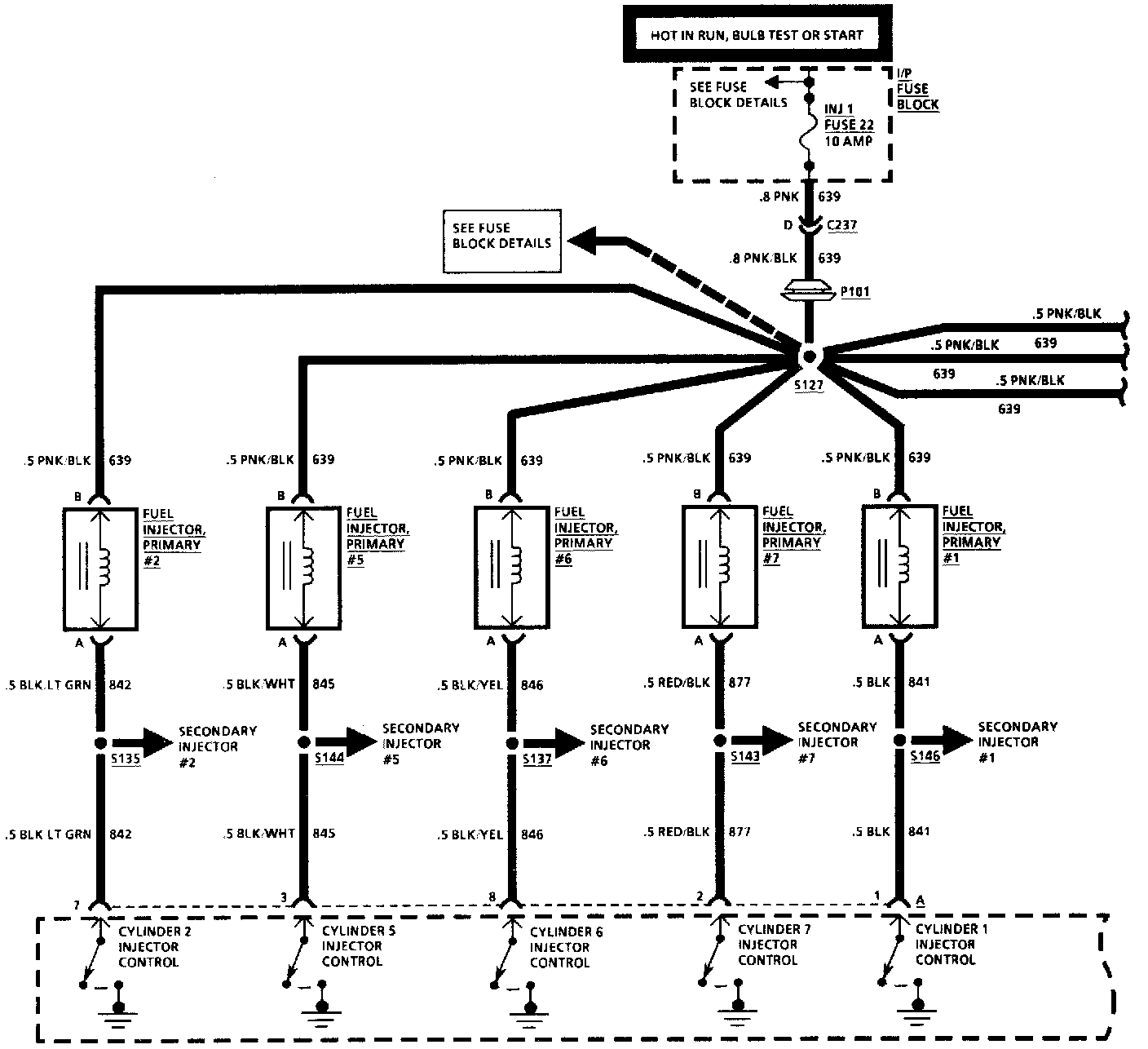

Fuel Control And Fuel Delivery: Primary Injector Circuit (Part 1 Of 2):

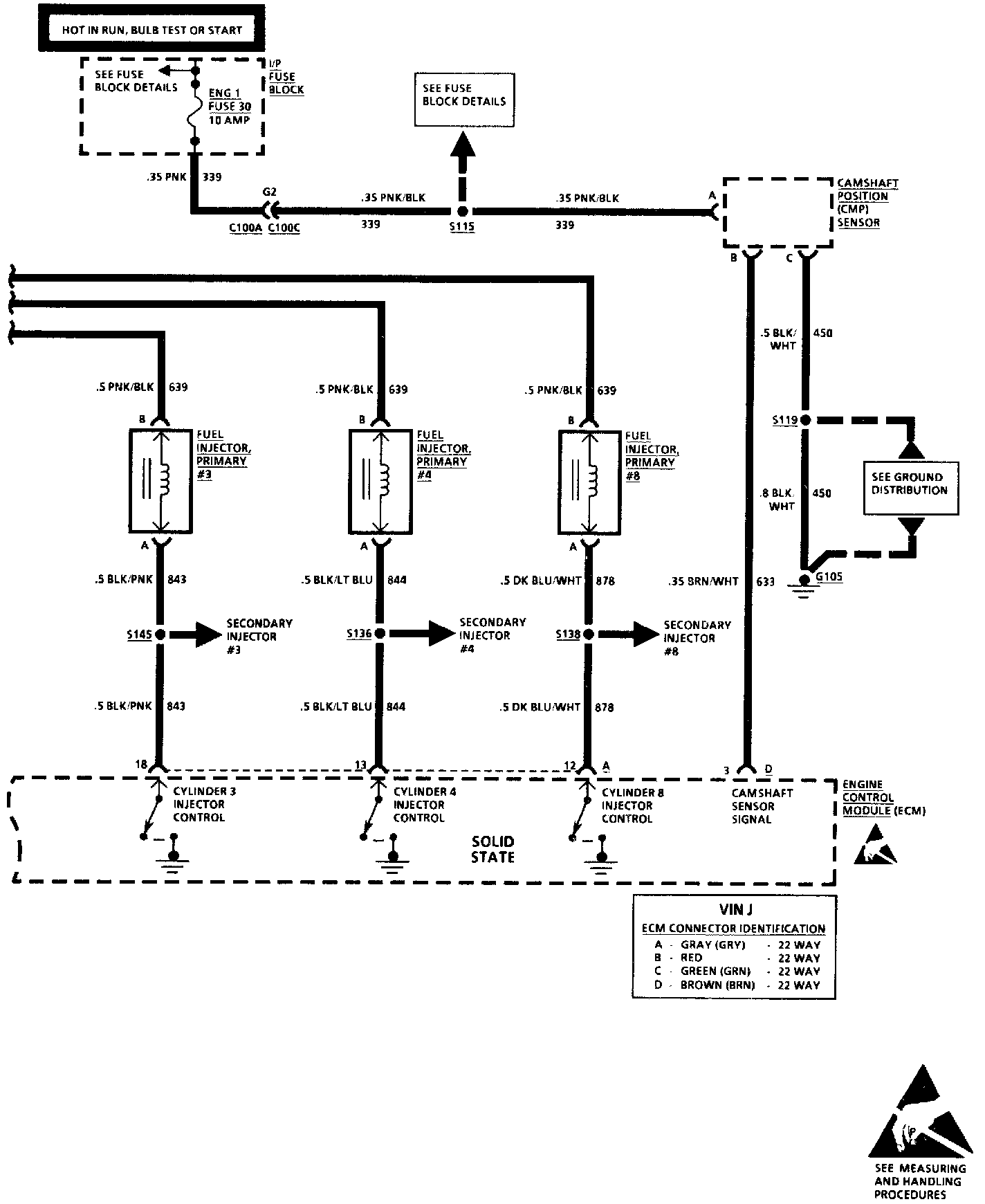

Fuel Control And Fuel Delivery: Primary Injector Circuit (Part 2 Of 2):
