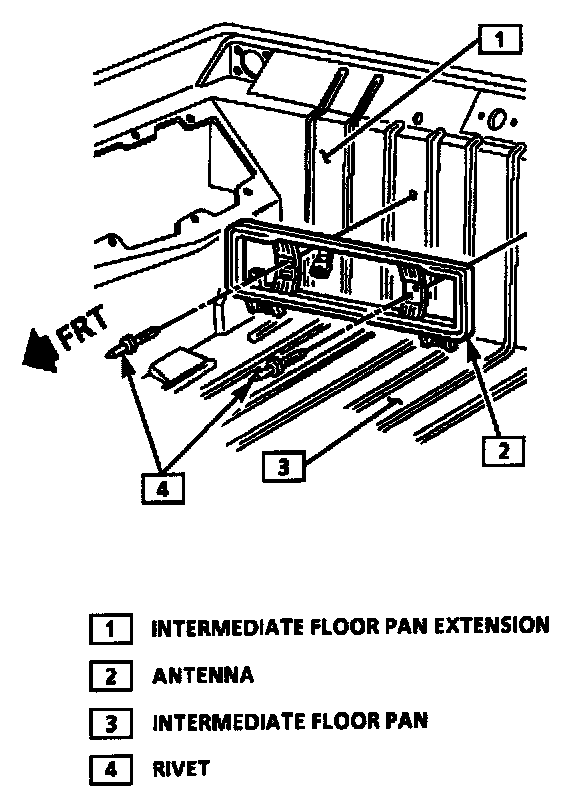

Rear Antenna (Coupe Only)

Rear Antenna (Coupe Only):

Remove or Disconnect
1. Open rear lift window (hatch).

2. Rear floor stowage compartment handle.

3. Separate hook and loop fastener from stowage compartment doors and roll carpet back over rear panel.

4. Fold down carpet insulator to access antenna.

5. Harness connector.

CAUTION: Before drilling out antenna rivets place a stop on drill bit 1/4 inch from the tip to prevent drill bit from passing too far through the body panel and puncturing fuel tank. Puncturing the fuel tank could result in fuel leakage and possible fire causing personal injury or property damage.

6. Drill out mounting rivets.

7. Antenna by pulling firmly on each adhesive pad.

Install or Connect
1. Rivet antenna to body panel.

2. Harness connector.

3. Reposition carpet insulator.

4. Reposition carpet.

5. Stowage compartment handle.

6. Close rear lift window.
