Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
Ignition Coil

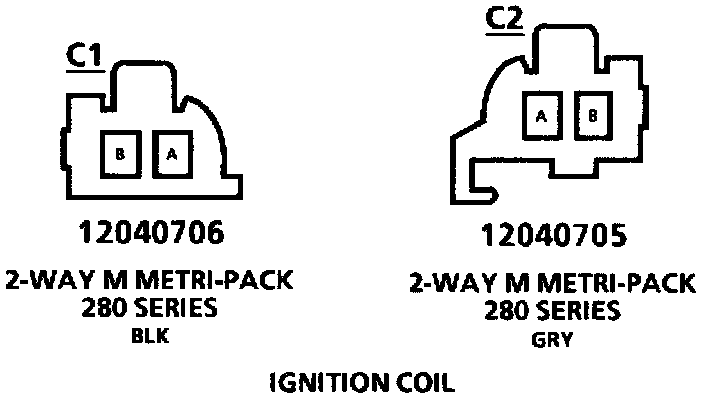

Ignition Coil, C1 & C2:

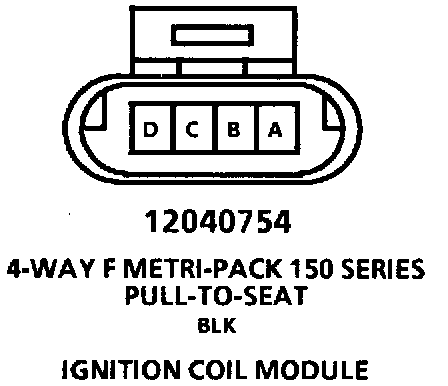

Ignition Coil Module:

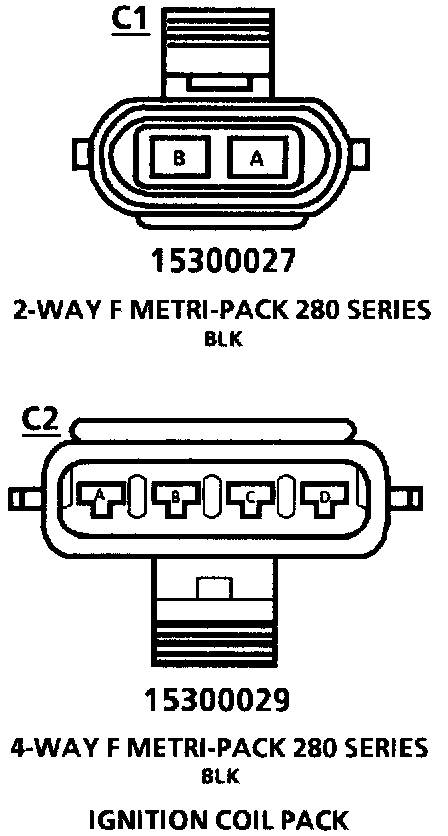

Ignition Coil Pack, C1 & C2:
