Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display

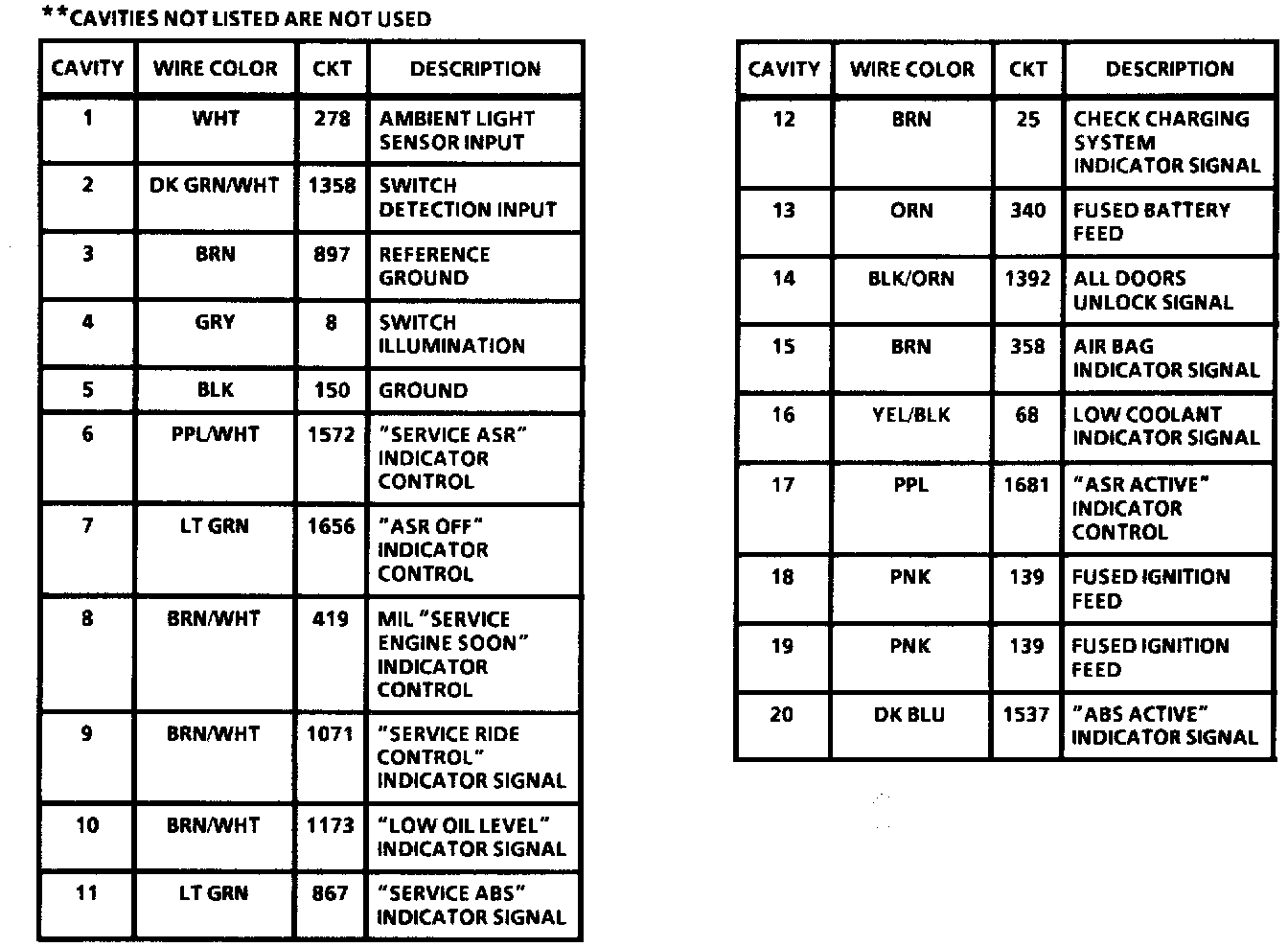

Driver Information Center (DIC):
Driver Information Center (DIC):
