Keyless Entry

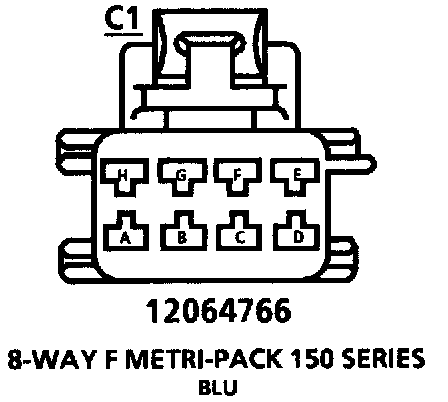

Passive Keyless Entry: C1:

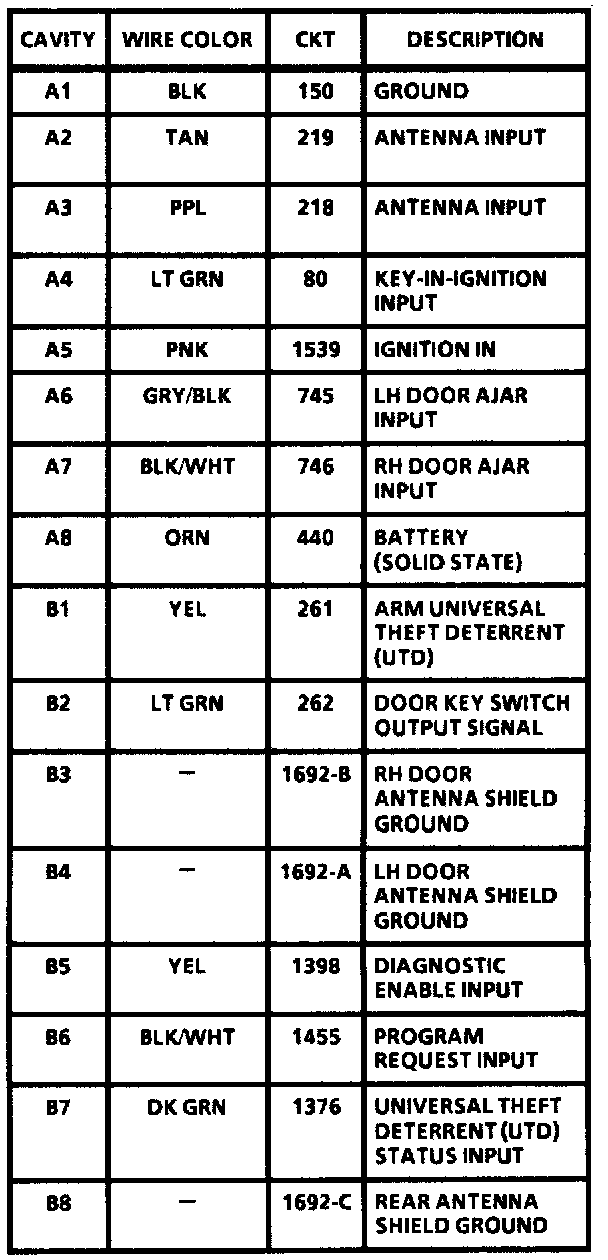

Passive Keyless Entry: C2:

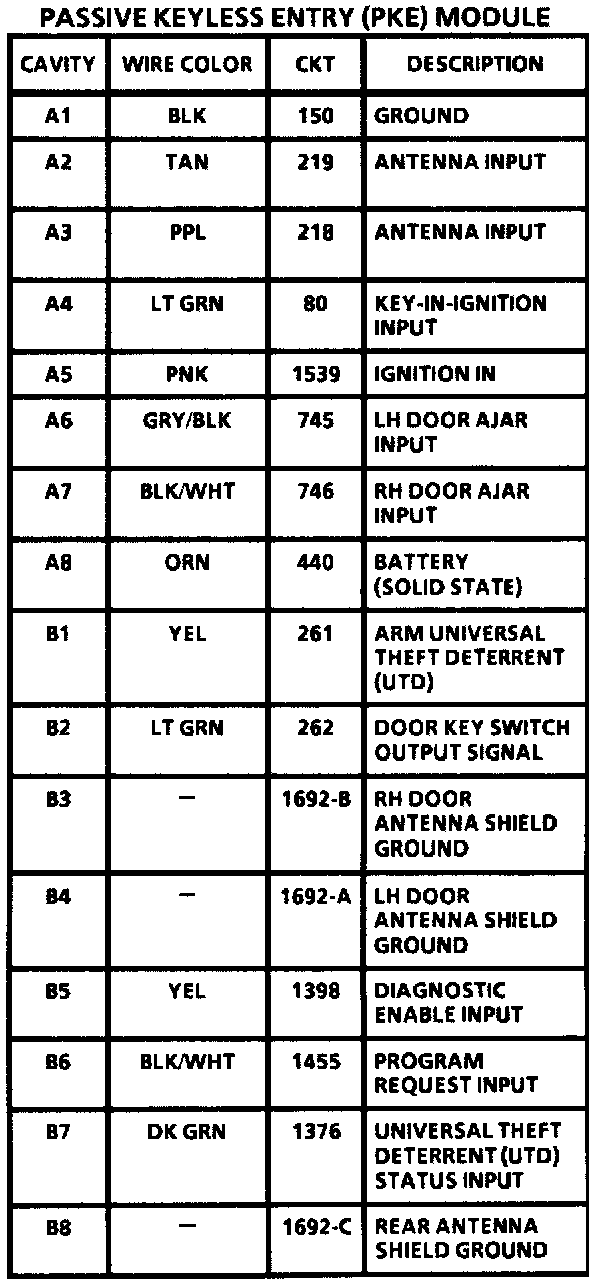

Passive Keyless Entry: C1:



Passive Keyless Entry: C2:
