Radio/Stereo

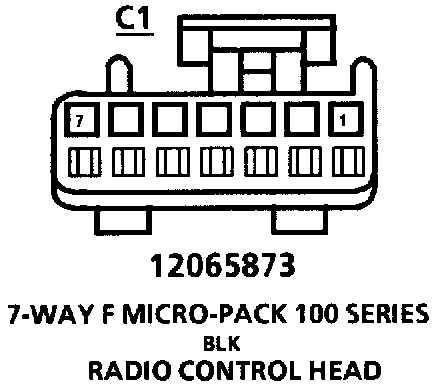

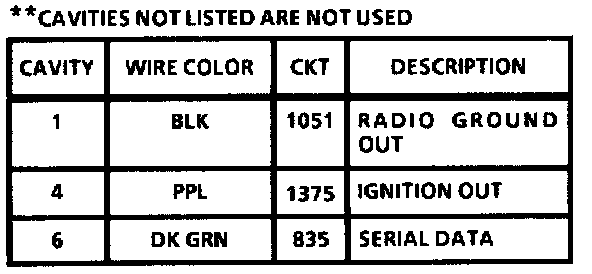

Radio Control Head: C1:

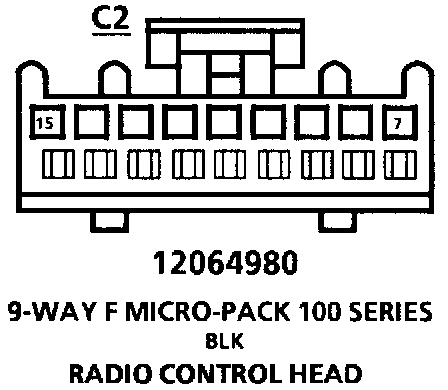

Radio Control Head: C2:

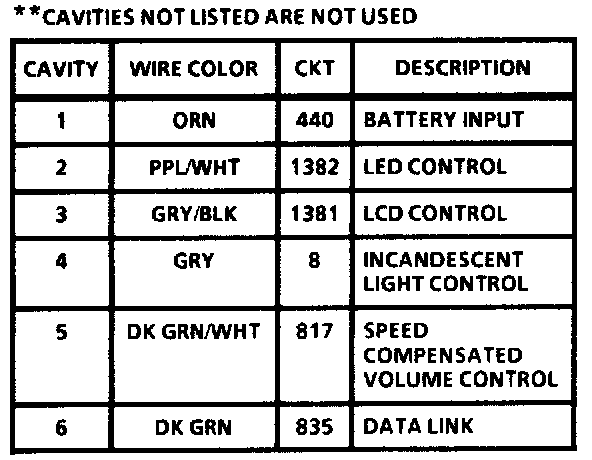

Radio Control Head: C1:

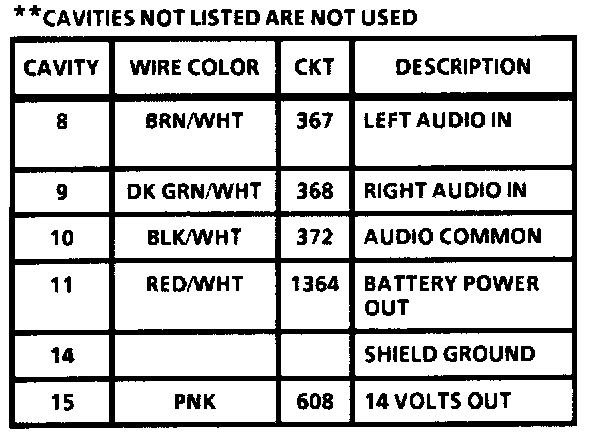

Radio Control Head: C2:

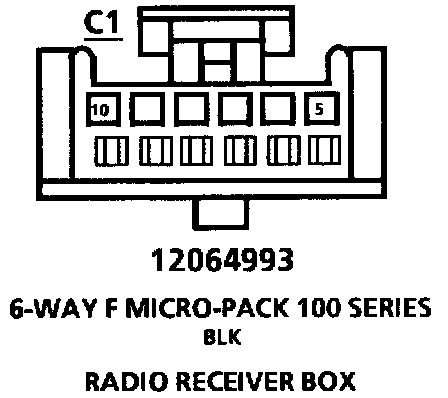

Radio Receiver Box: C1:

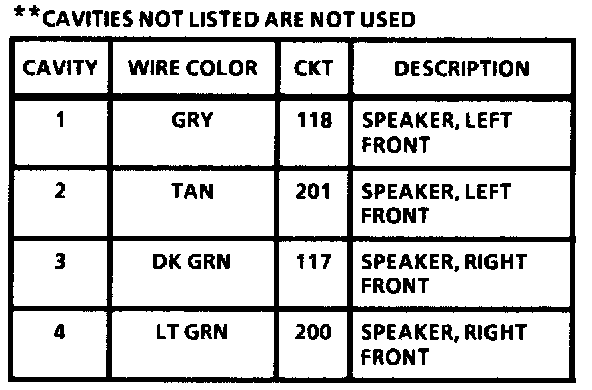

Radio Receiver Box: C1:

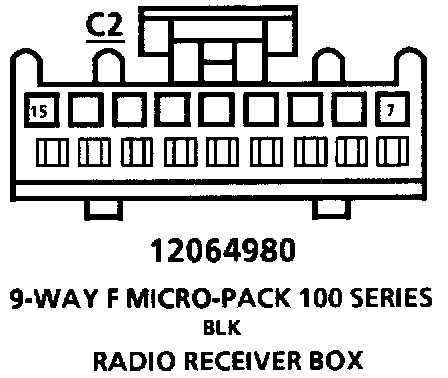

Radio Receiver Box: C2:

Radio Receiver Box: C3:

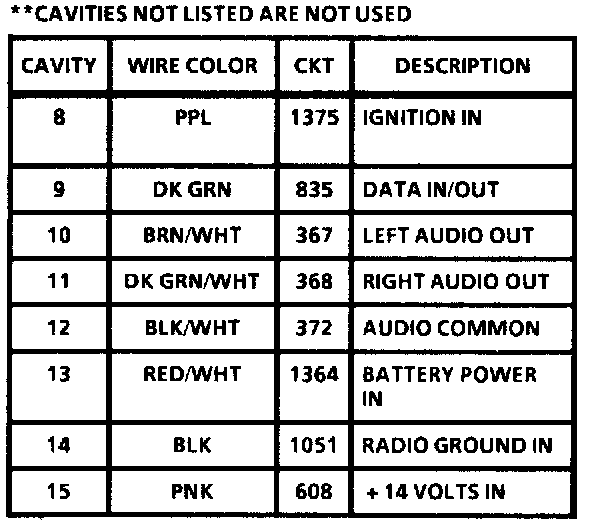

Radio Receiver Box: C2:

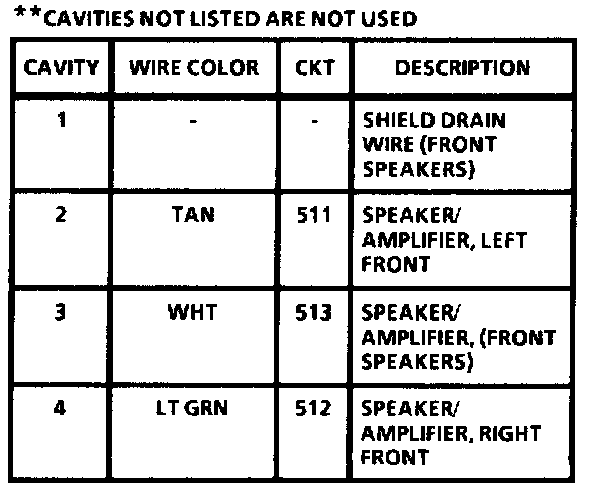

Radio Receiver Box: C3:

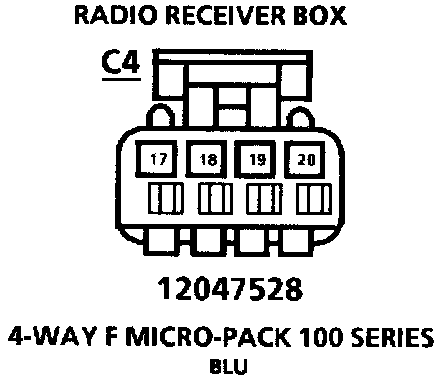

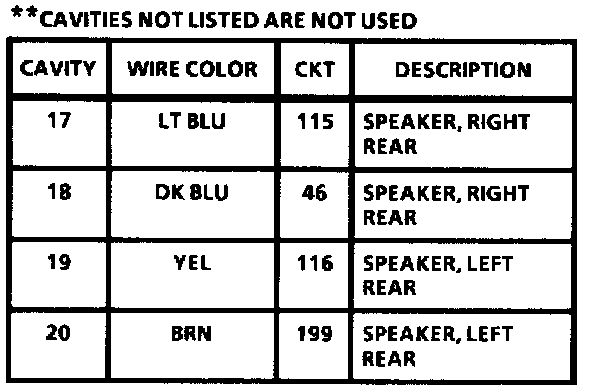

Radio Receiver Box: C4:

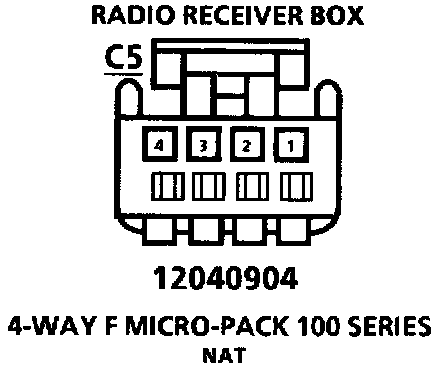

Radio Receiver Box: C5:

Radio Receiver Box: Without Bose:

Radio Receiver Box: Without Bose:

Radio Receiver Box: With Bose:

Radio Receiver Box: With Bose:

Bose Relay, Defogger Relay, Delayed Accessory Bus (DAB) Relay, Hatch Release Relay And Starter Enable Relay:

Throttle Position (TP) Sensor And Interface Module:
