Antilock Brake System

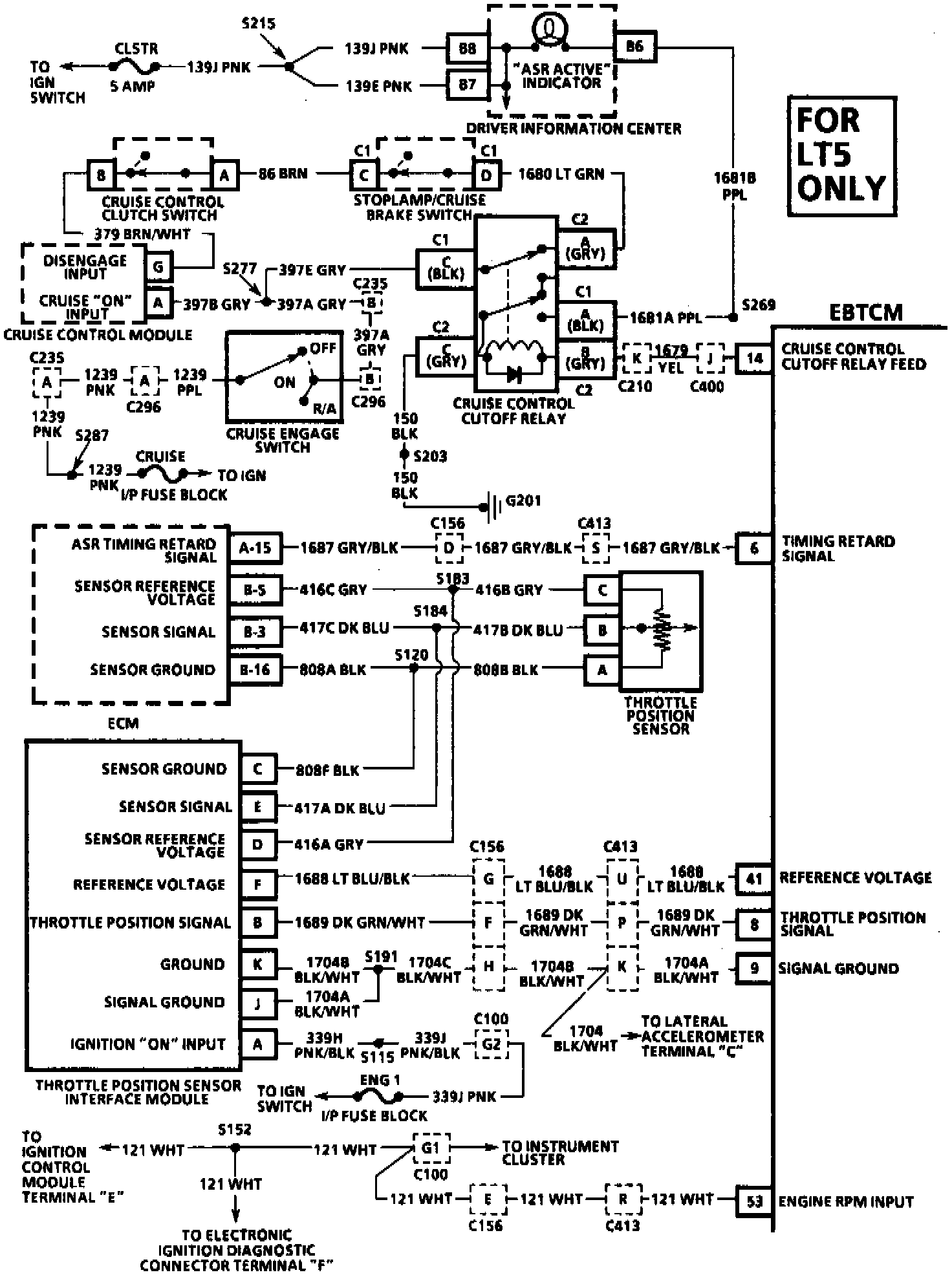

Fig. 4 ABS Wiring Circuit (Part 1 Of 6).:

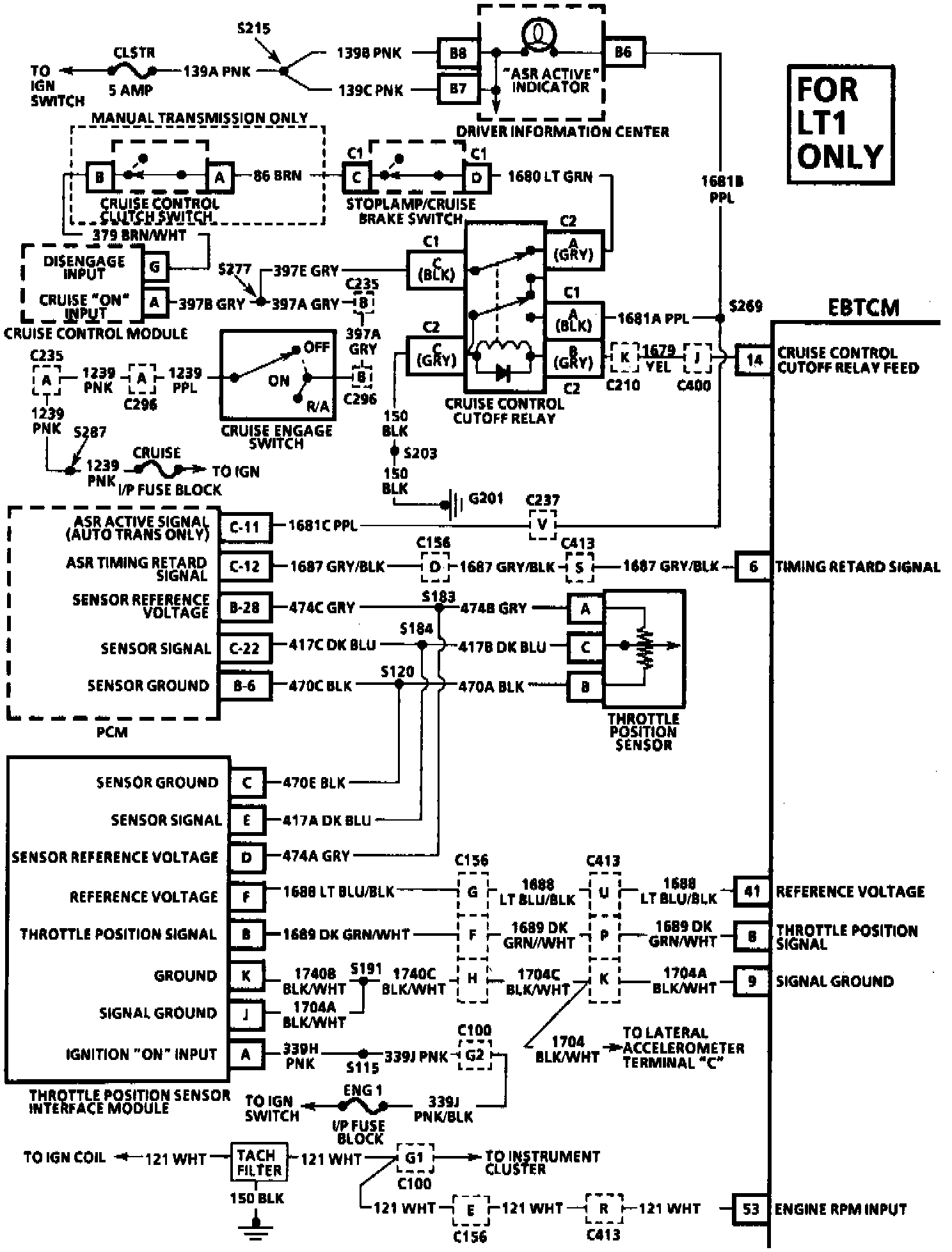

Fig. 4 ABS Wiring Circuit (Part 2 Of 6).:

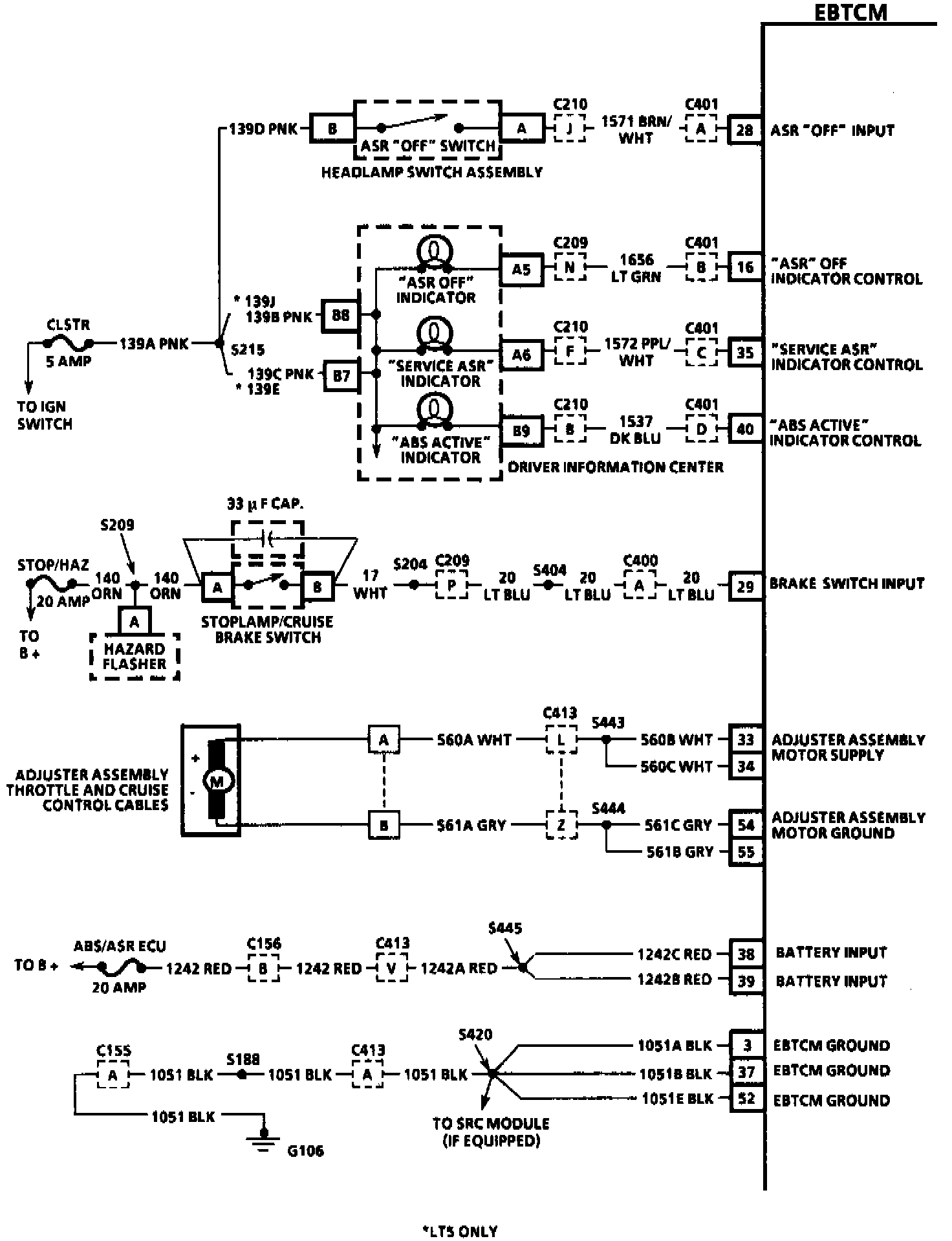

Fig. 4 ABS Wiring Circuit (Part 3 Of 6).:

Fig. 4 ABS Wiring Circuit (Part 4 Of 6).:

Fig. 4 ABS Wiring Circuit (Part 5 Of 6).:

Fig. 4 ABS Wiring Circuit (Part 6 Of 6).:

Refer to ABS wiring circuits, Fig. 4 when performing troubleshooting procedures.
