Brake Warning System

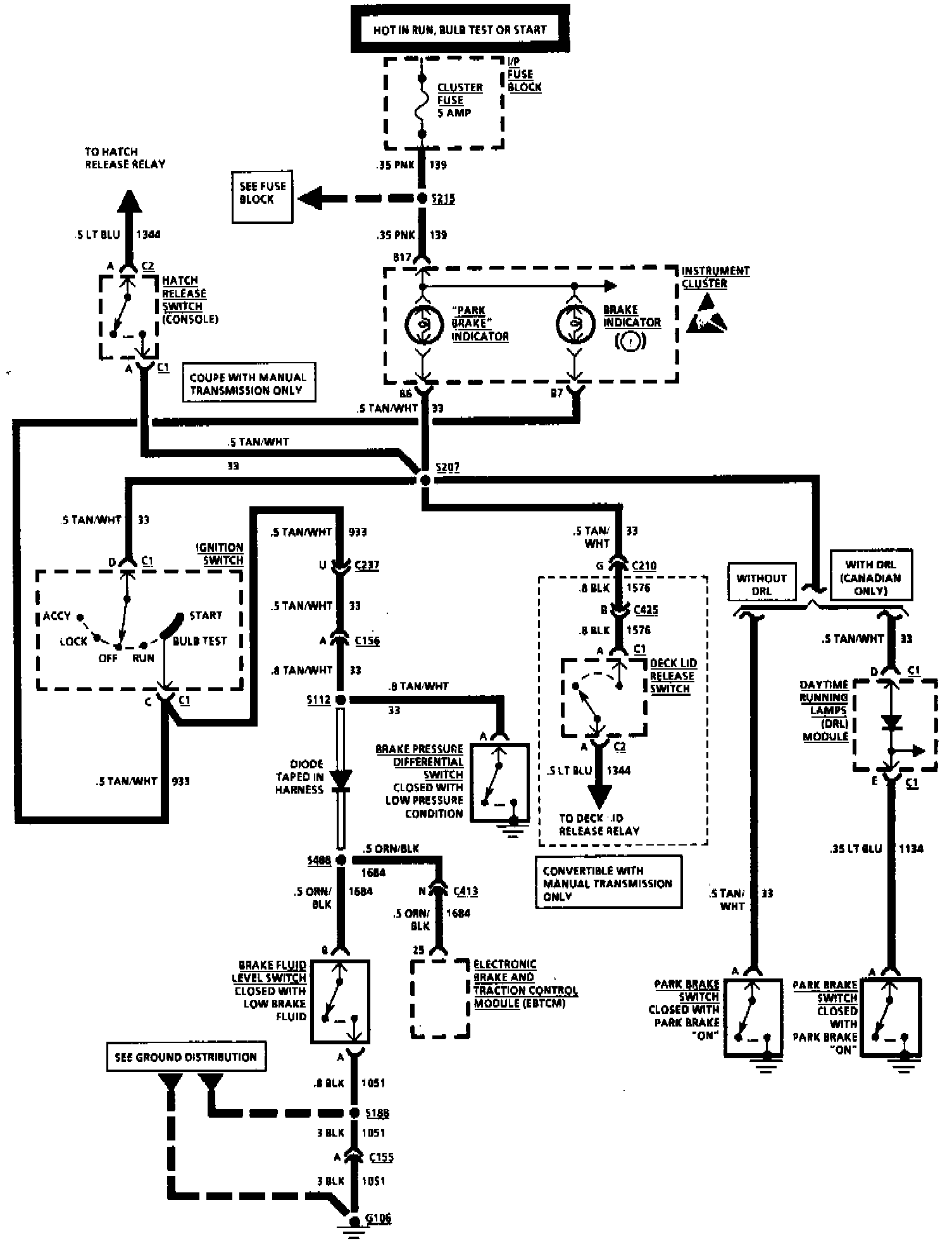

Fig. 82 Brake Warning System Wiring Diagram.:






Refer to Fig. 82 brake warning system wiring diagrams.
