Audible Warning Device

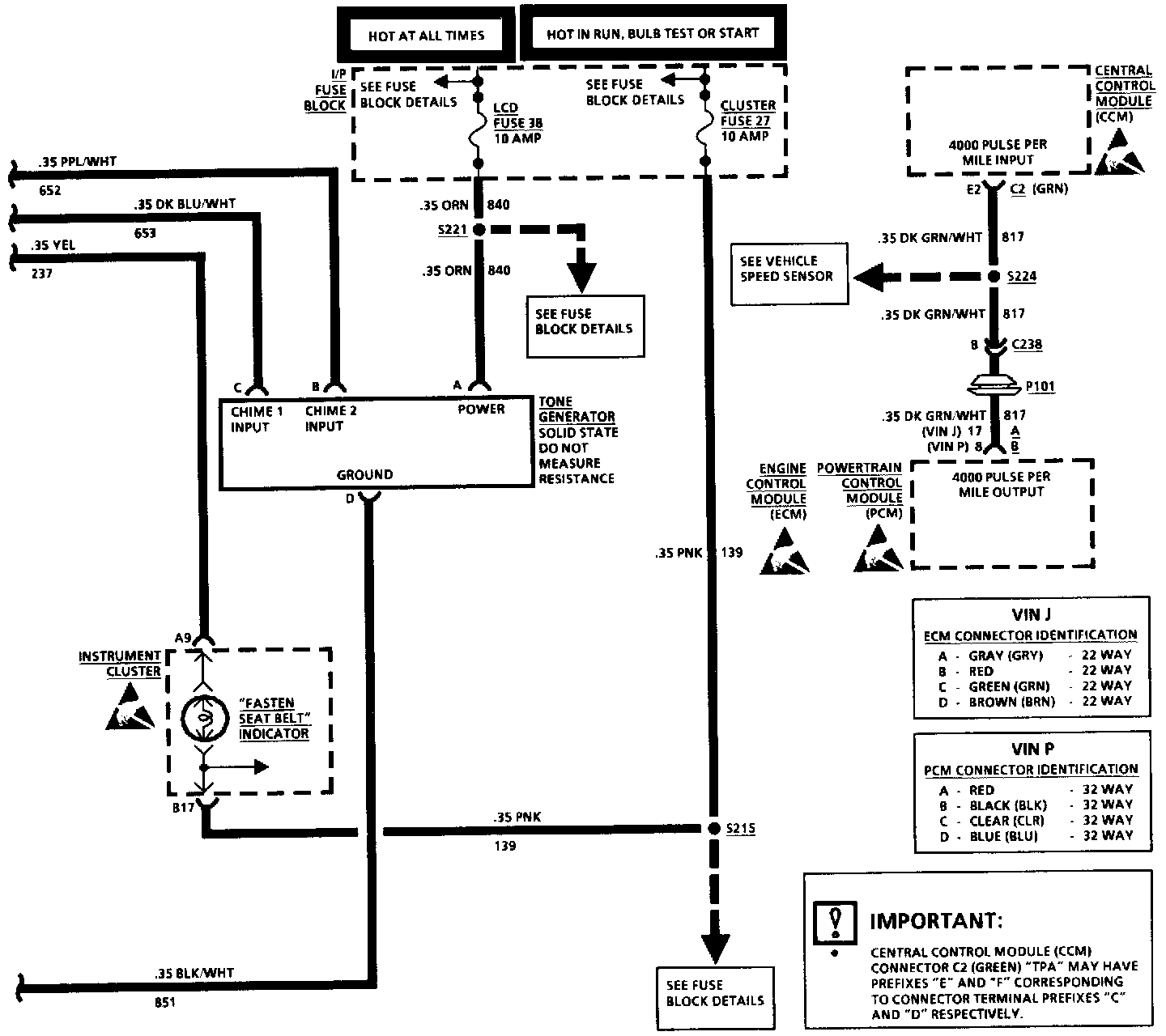

Audible Warnings: Key-In-Ignition/Lights ON/Seat Belt/Turn Signals (Part 1 Of 2):

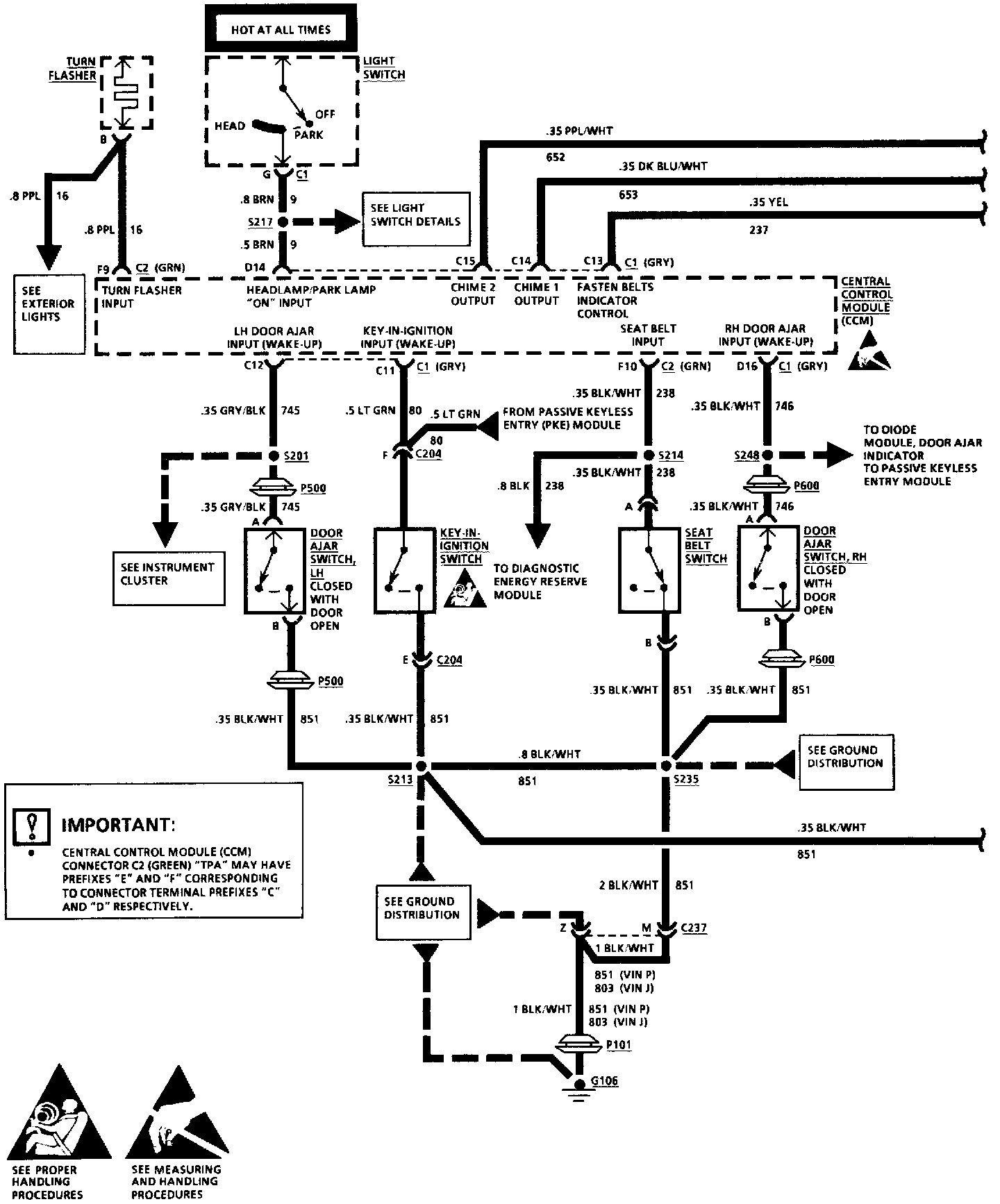

Audible Warnings: Key-In-Ignition/Lights ON/Seat Belt/Turn Signals (Part 2 Of 2):
