Home >> Chevrolet >> 1994 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Fog/Driving Lamp

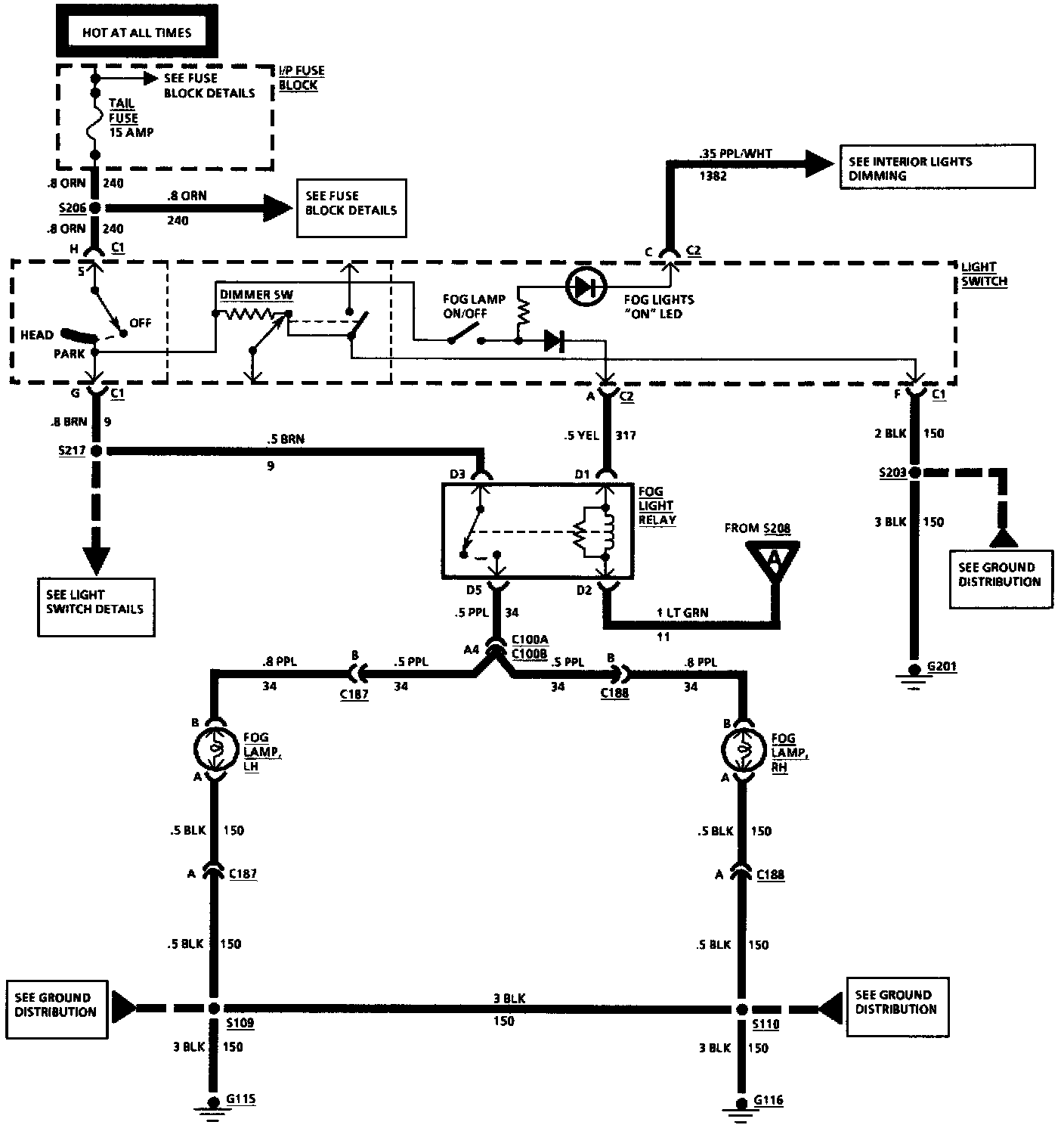

Fog/Driving Lamp

Headlights And Fog Lights: Fog Lights:
