Home >> Chevrolet >> 1994 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Manual Air Conditioning

Manual Air Conditioning

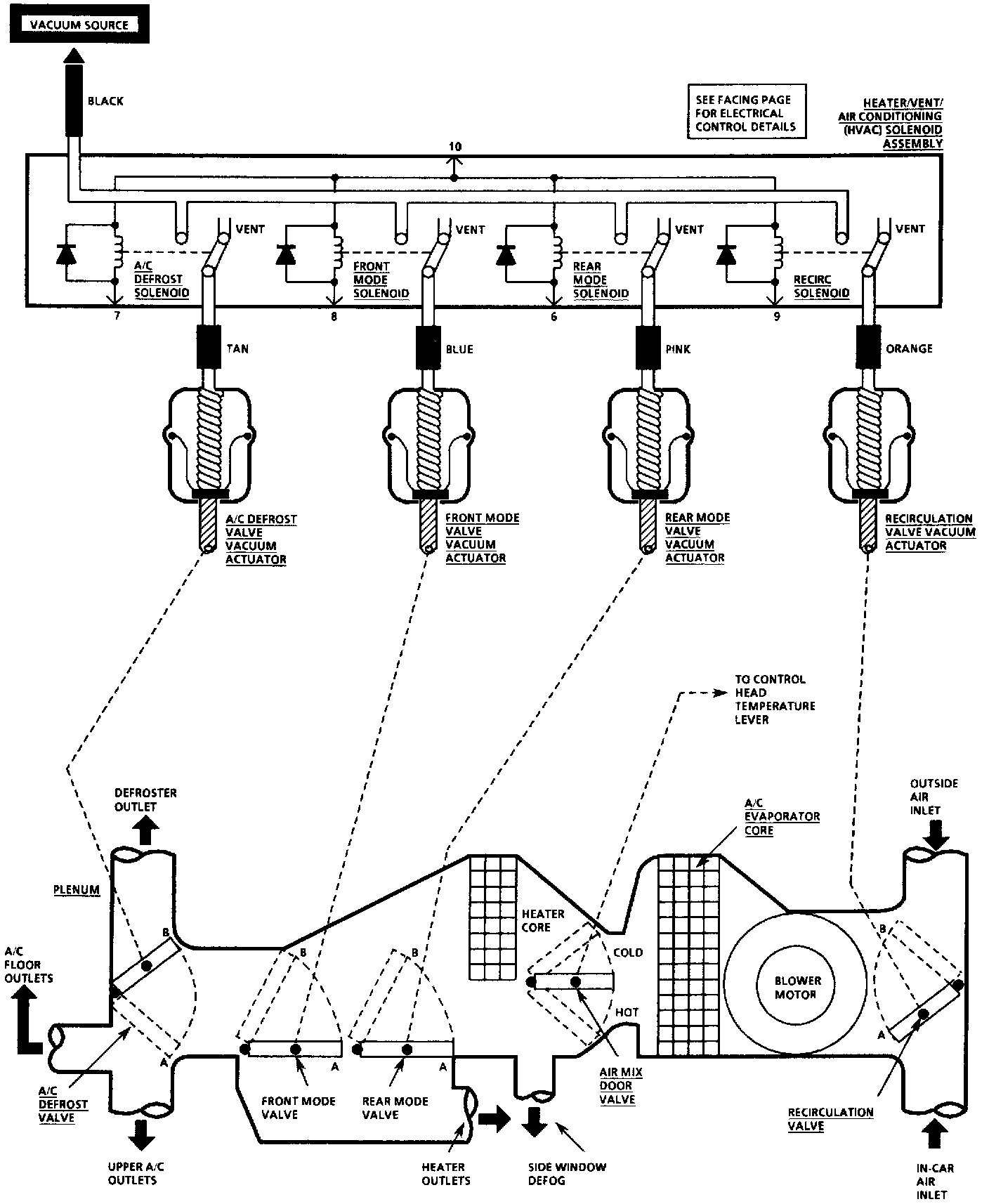

HVAC Air Delivery And Temperature Control: C60, Manual (Part 1 Of 2):



HVAC Air Delivery And Temperature Control: C60, Manual (Part 2 Of 2):
