I/P Harn to Temperature Door Jumper Harn
I/P Harn to Temperature Door Jumper Harn

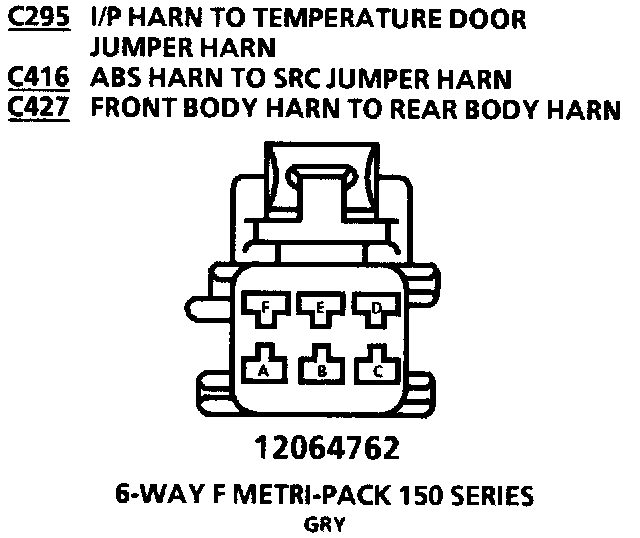

C295: I/P Harn To TEMP Door Jumper Harn, C416: ABS Harn To SRC Jumper Harn, C427: Front Body Harn To Rear Body Harn:
