Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators and Panel Lamps
Indicators and Panel Lamps

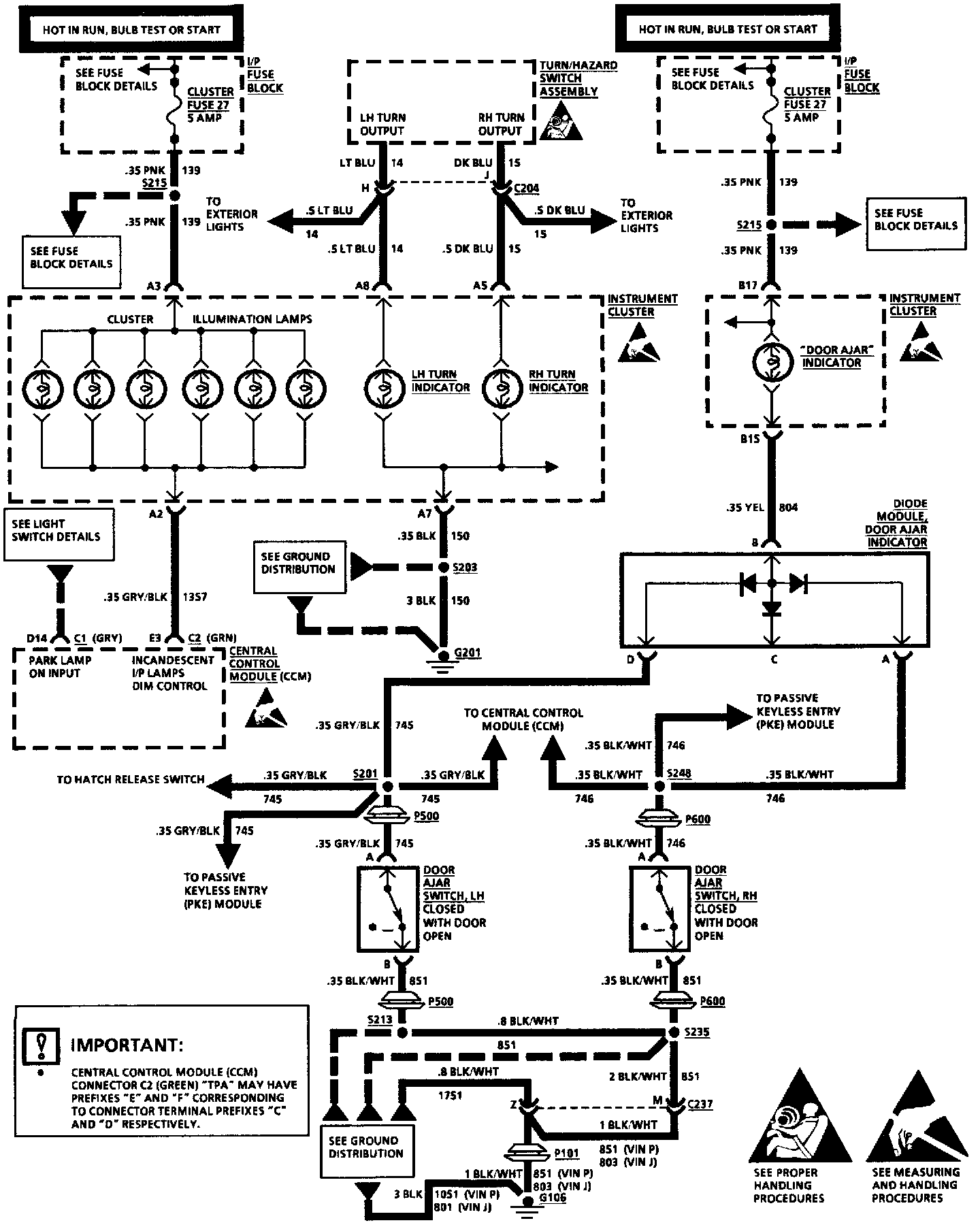

Instrument Cluster: Indicators And Panel Lamps:
