Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Light Switch Details
Light Switch Details

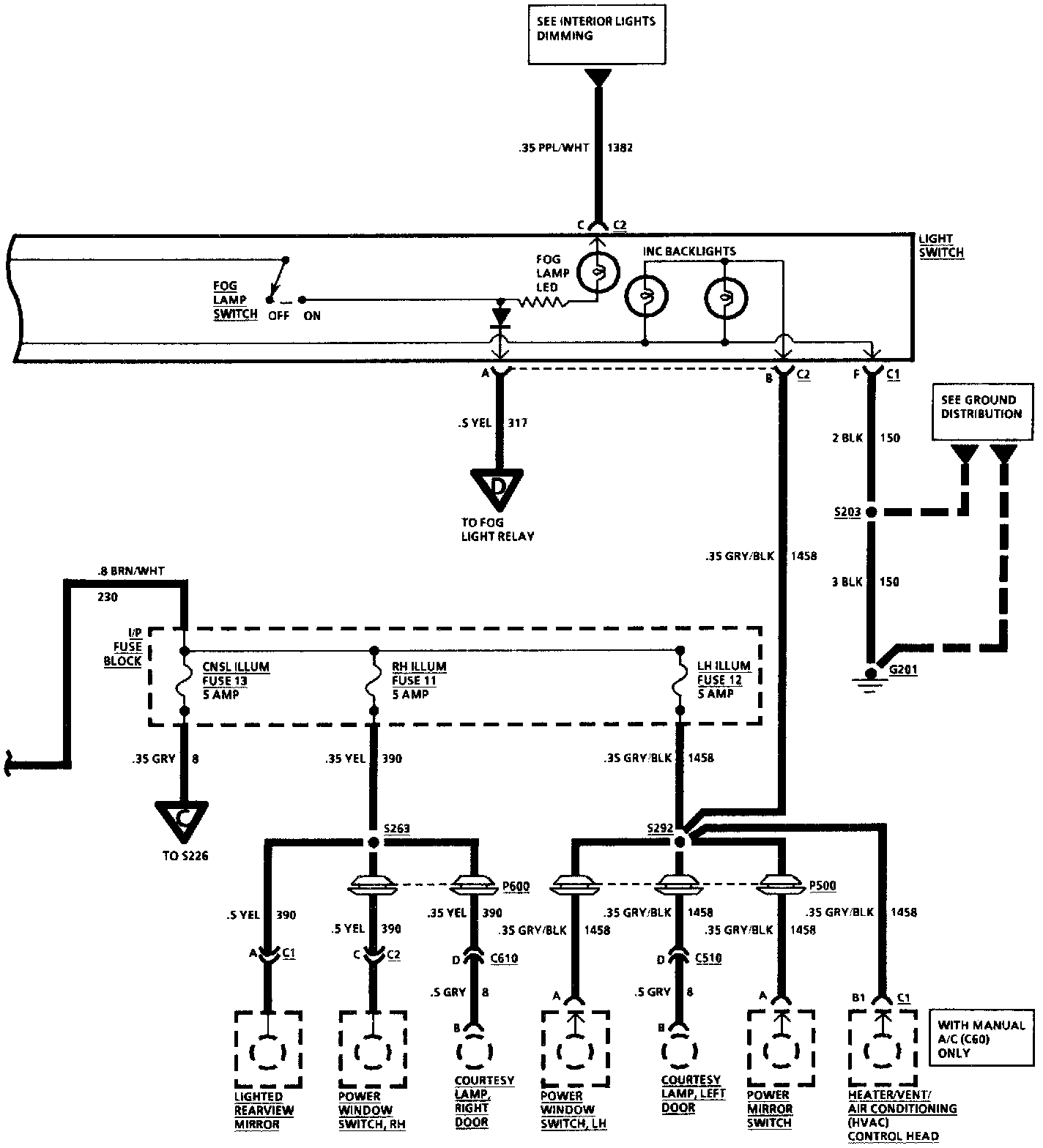

Light Switch Details (Part 1 Of 4):

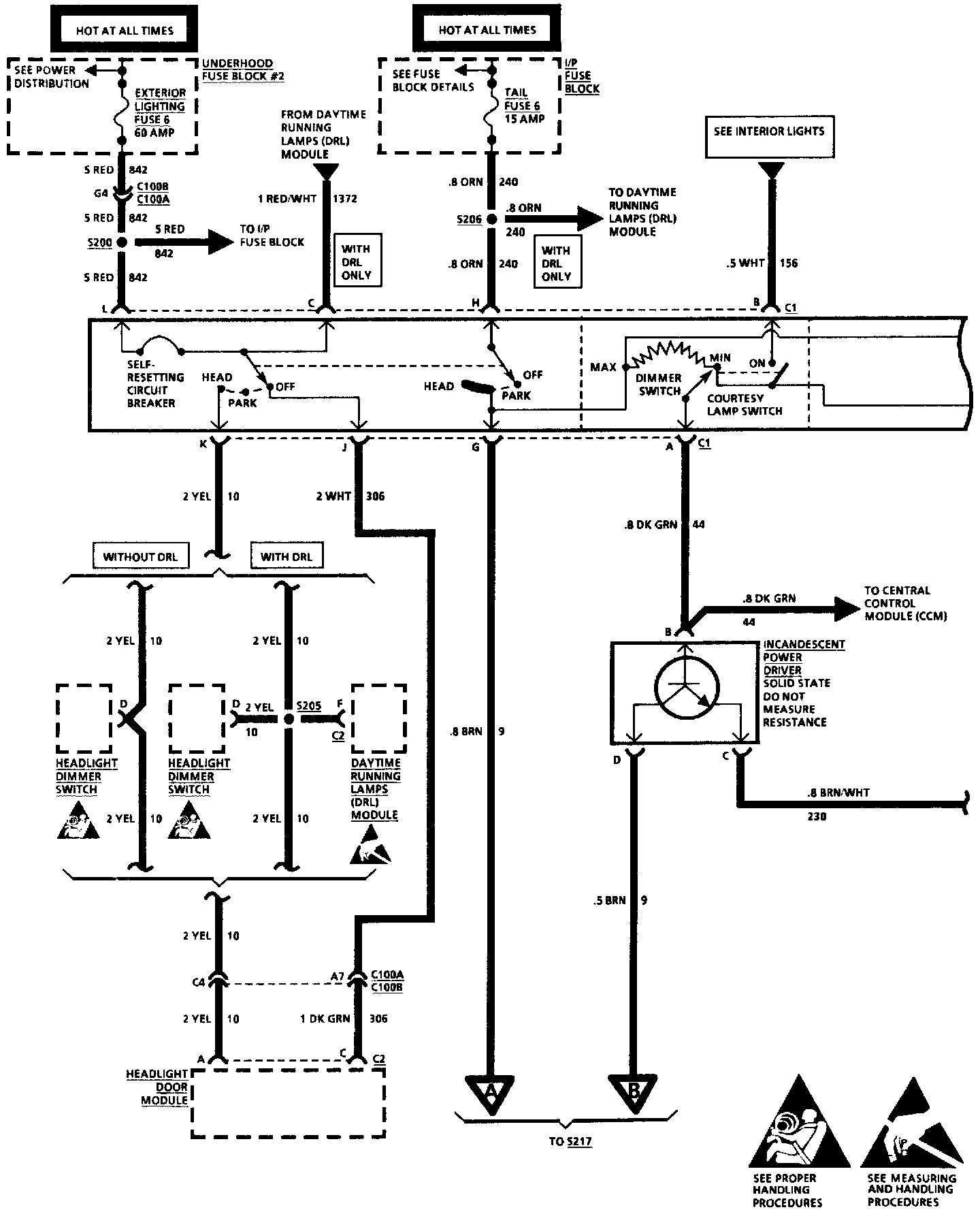

Light Switch Details (Part 2 Of 4):

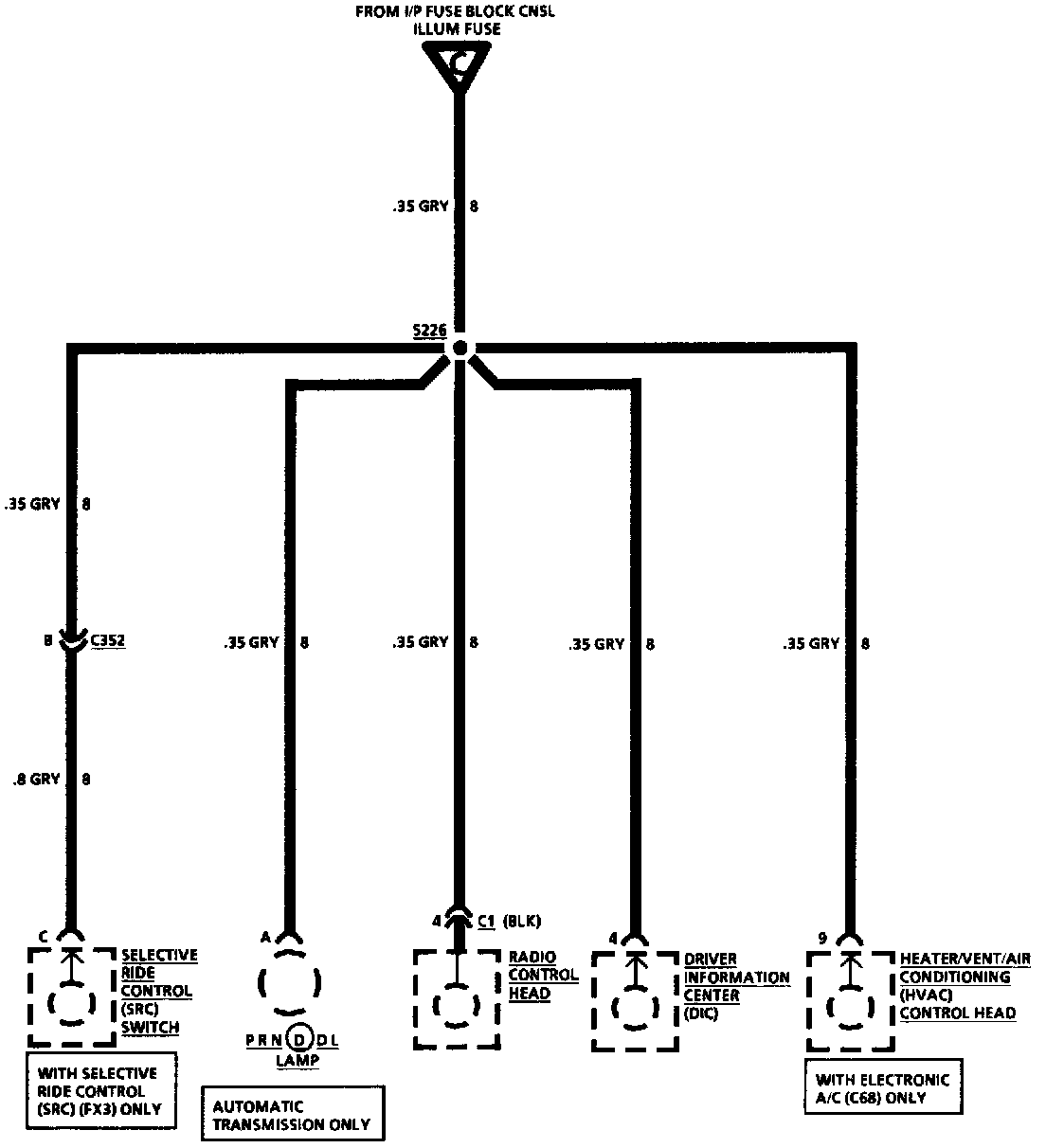

Light Switch Details (Part 3 Of 4):

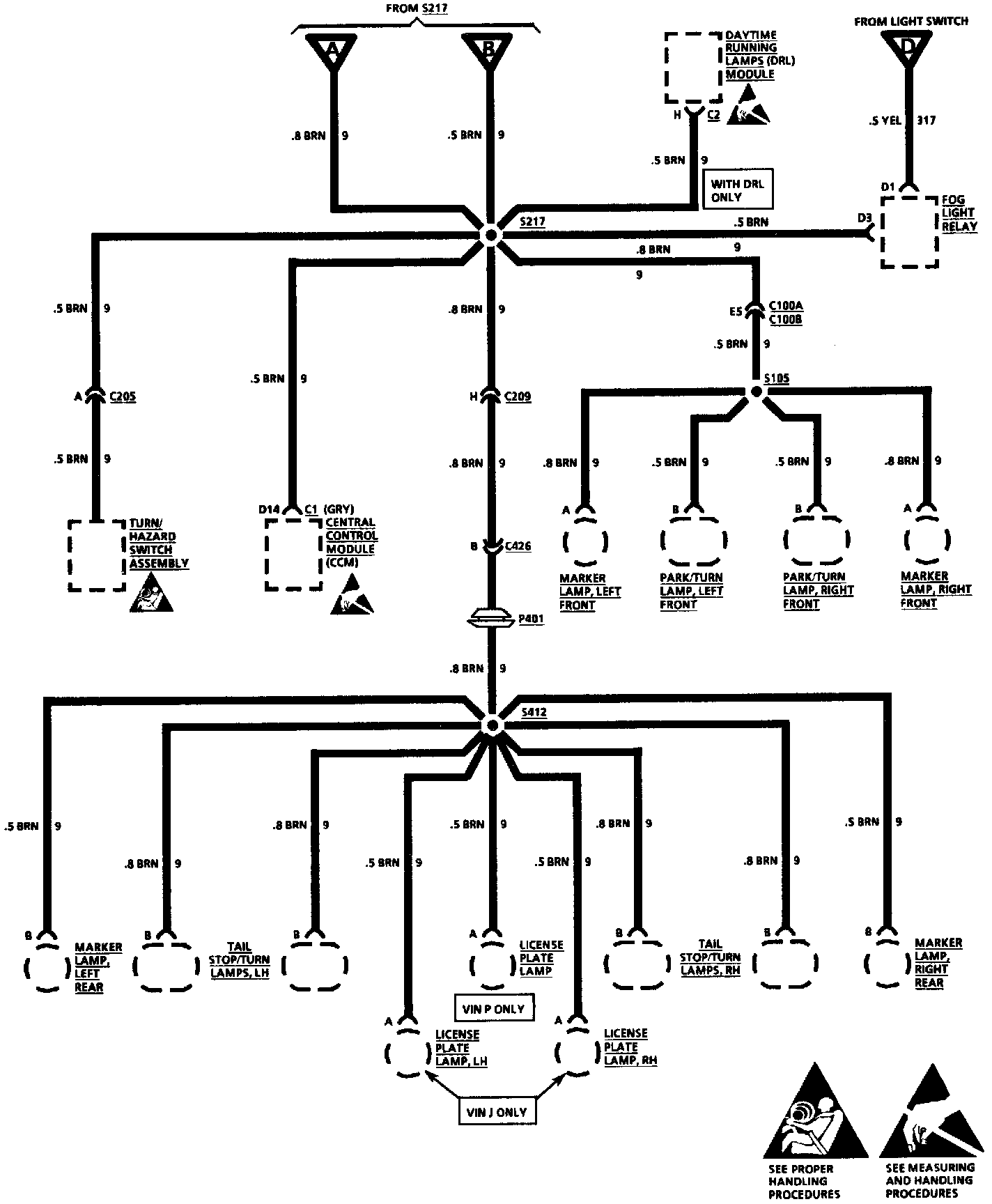

Light Switch Details (Part 4 Of 4):
