Chevrolet
>>
1994
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle Controls
Automatic Transmission/Transaxle Controls

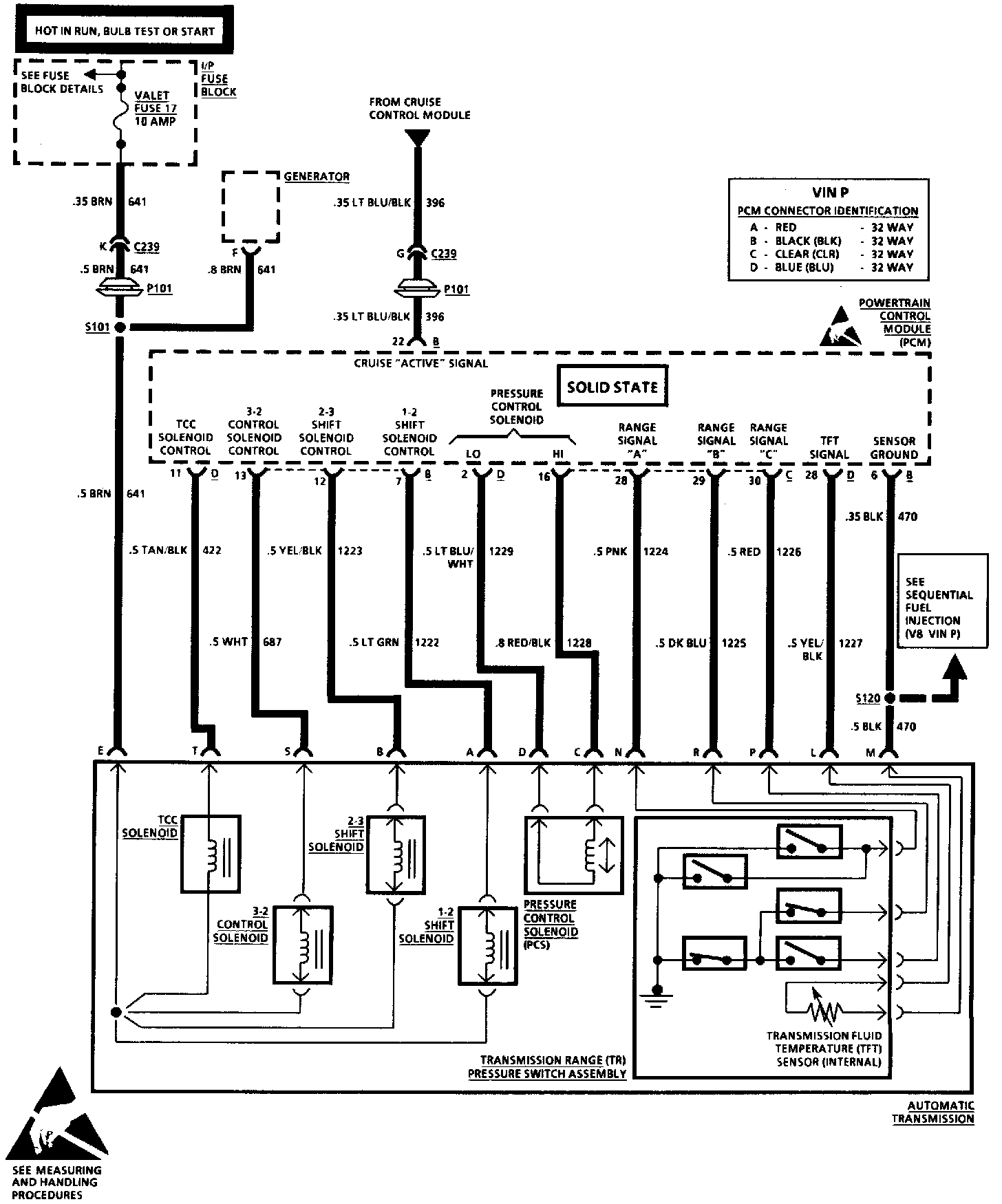

Electronic Transmission Controls:
