Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Lumina V6-191 3.1L VIN T MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

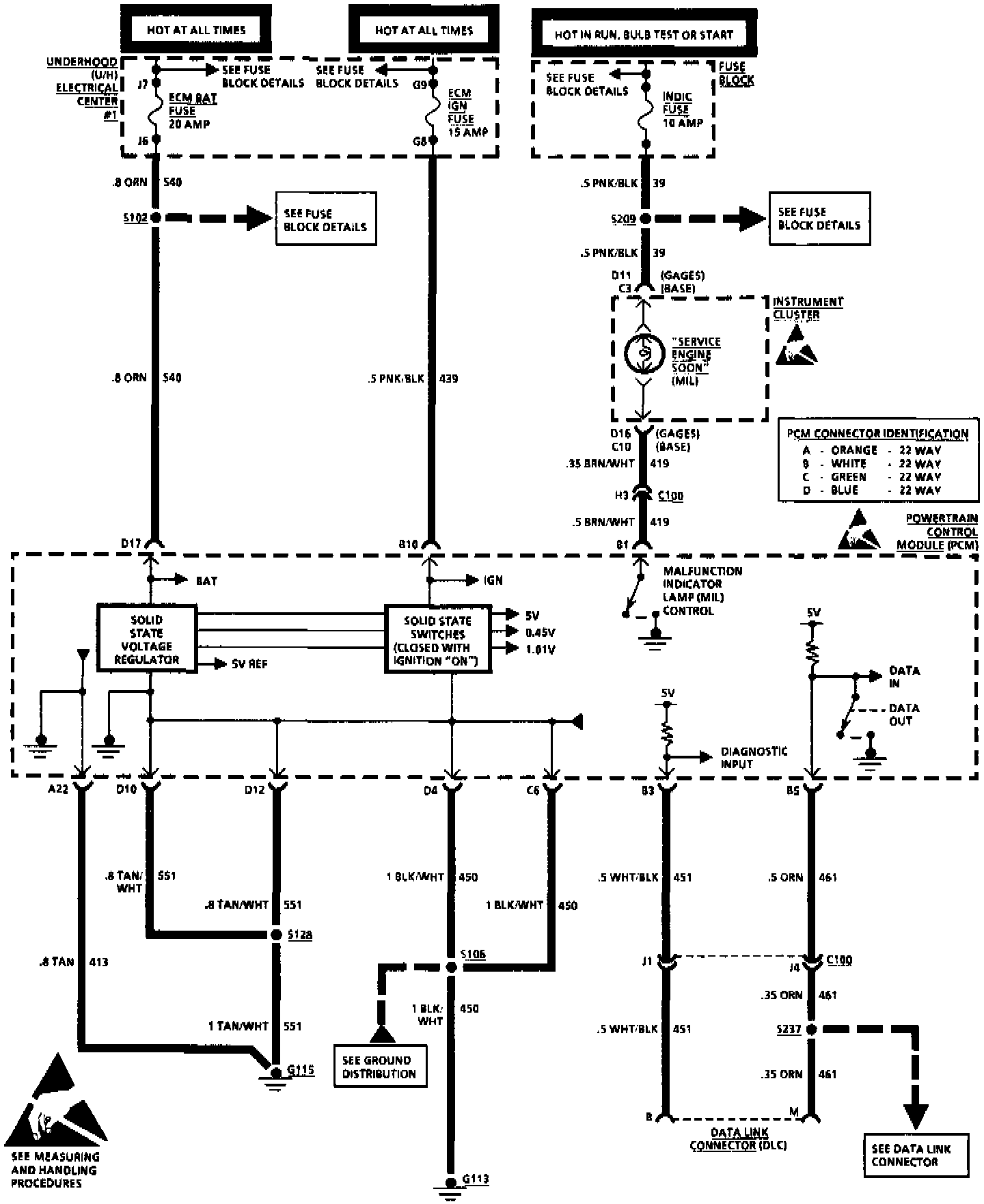

Power, Ground, DLC & Malfunction Indicator Lamp (MIL)
Power, Ground, DLC & Malfunction Indicator Lamp (MIL)
Power, Ground, DLC And MIL:
