Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Lumina V6-191 3.1L VIN T MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

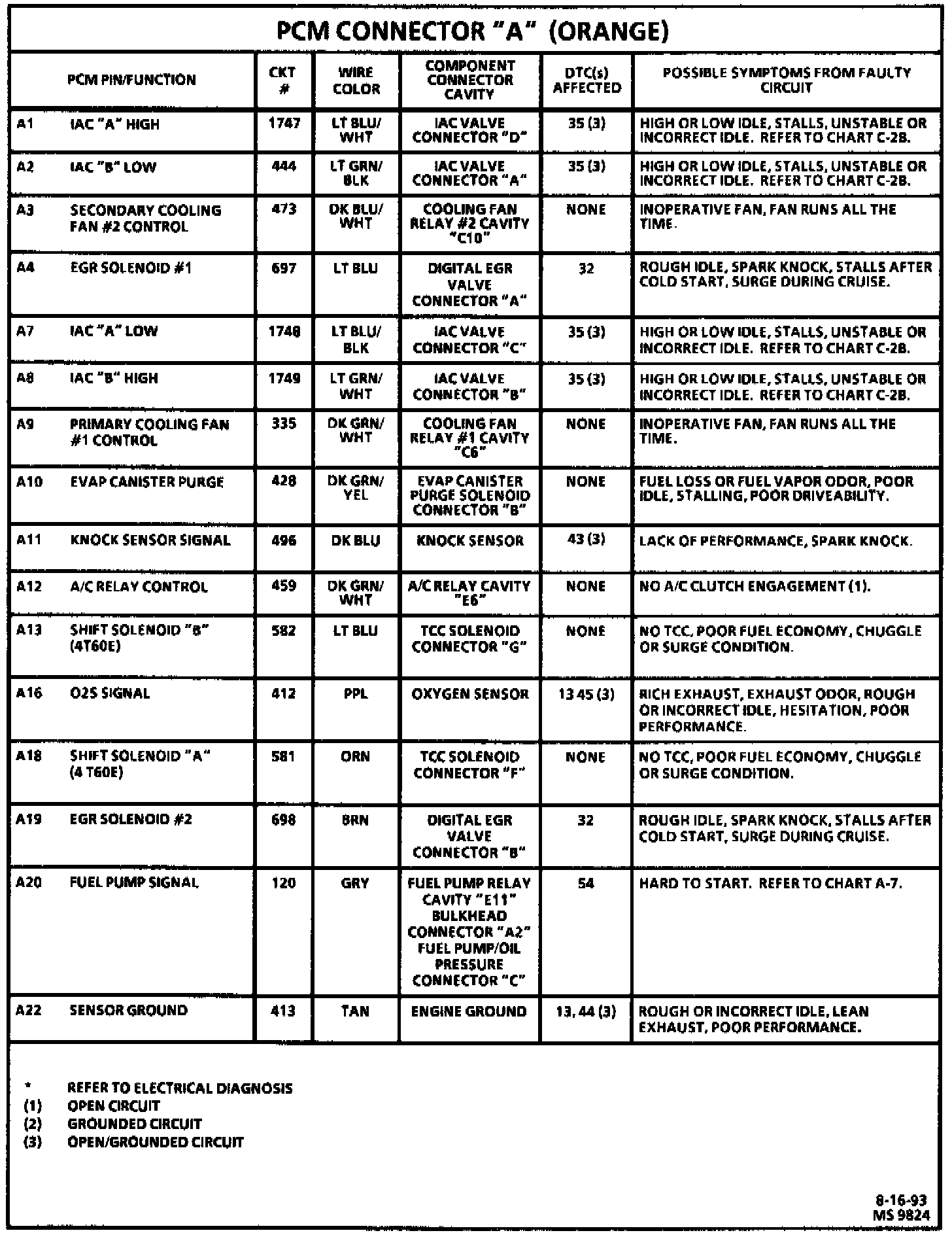

PCM Connector Symptom Chart:
PCM Connector Symptom Chart:
PCM Connector Symptom Chart:
PCM Connector Symptom Chart:
