Engine Controls

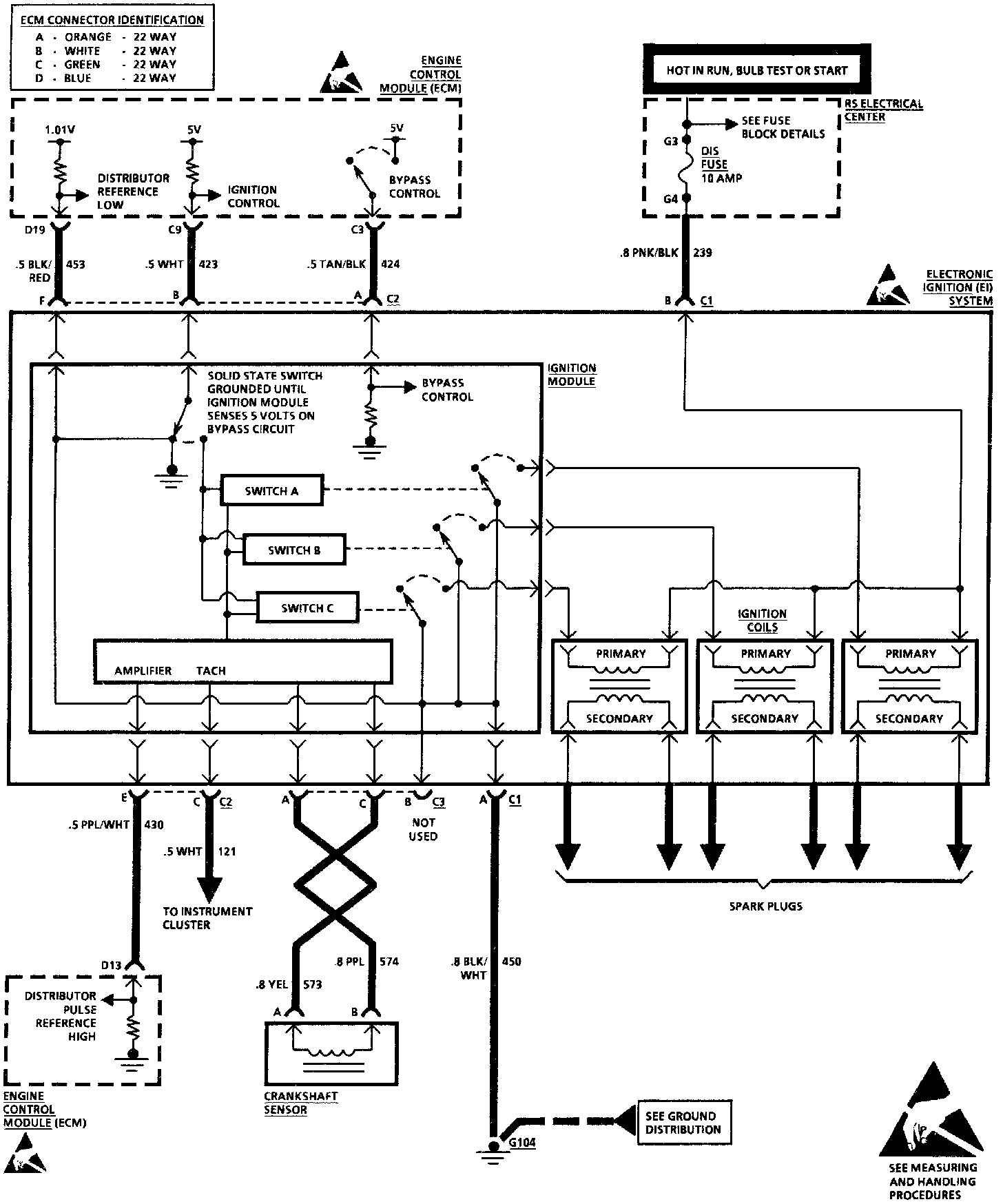

Multiport Fuel Injection: Electronic Ignition System:

Multiport Fuel Injection: Engine Data Sensors:

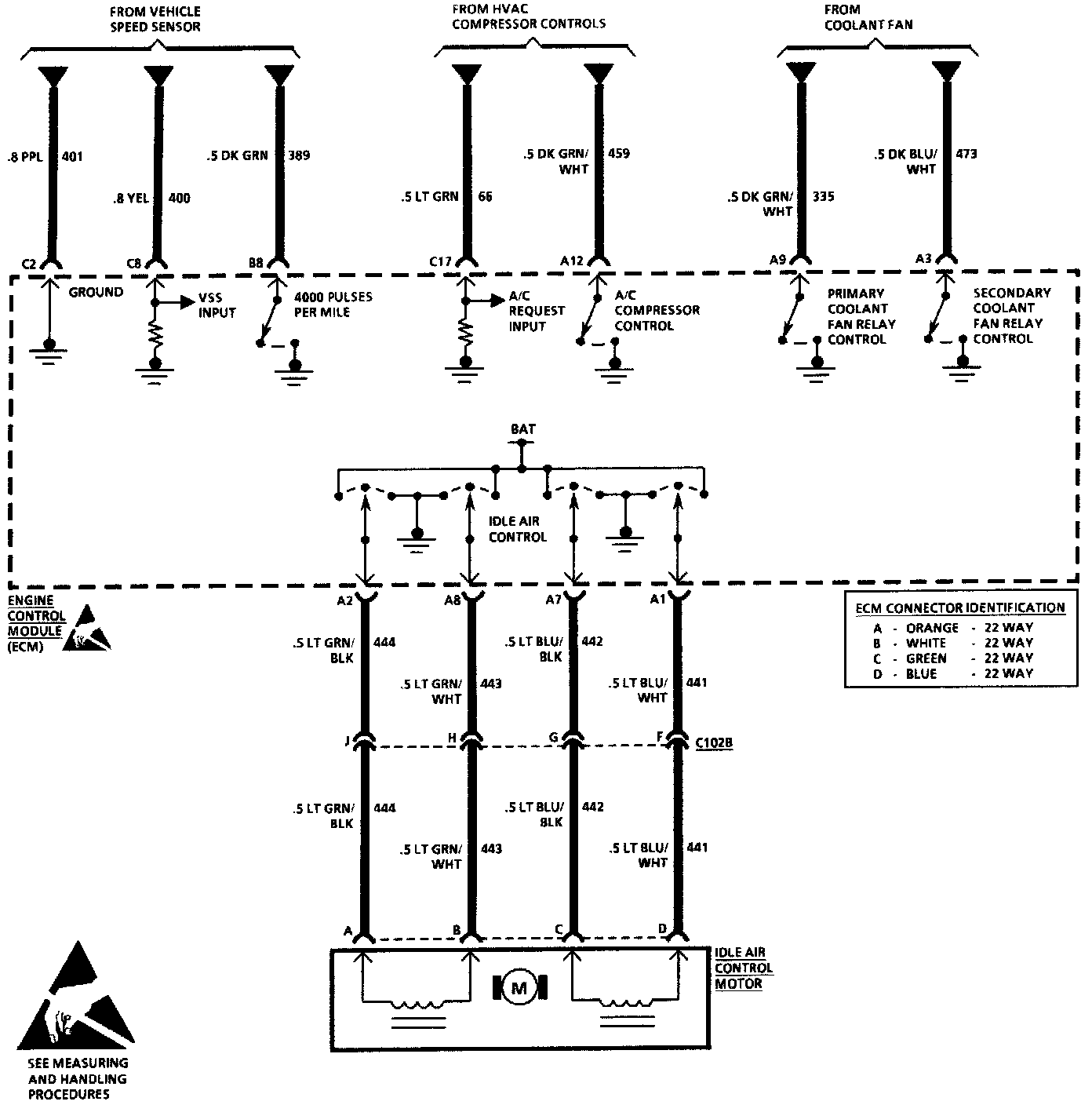

Multiport Fuel Injection: Idle Air Control, Fuel Control And Vehicle Speed Sensors:

Multiport Fuel Injection: Idle Air Control, Fuel Control And Vehicle Speed Sensors Cont.:

Multiport Fuel Injection: Fuel Injector, Malfunction Indicator Lamp And Automatic Transaxle:

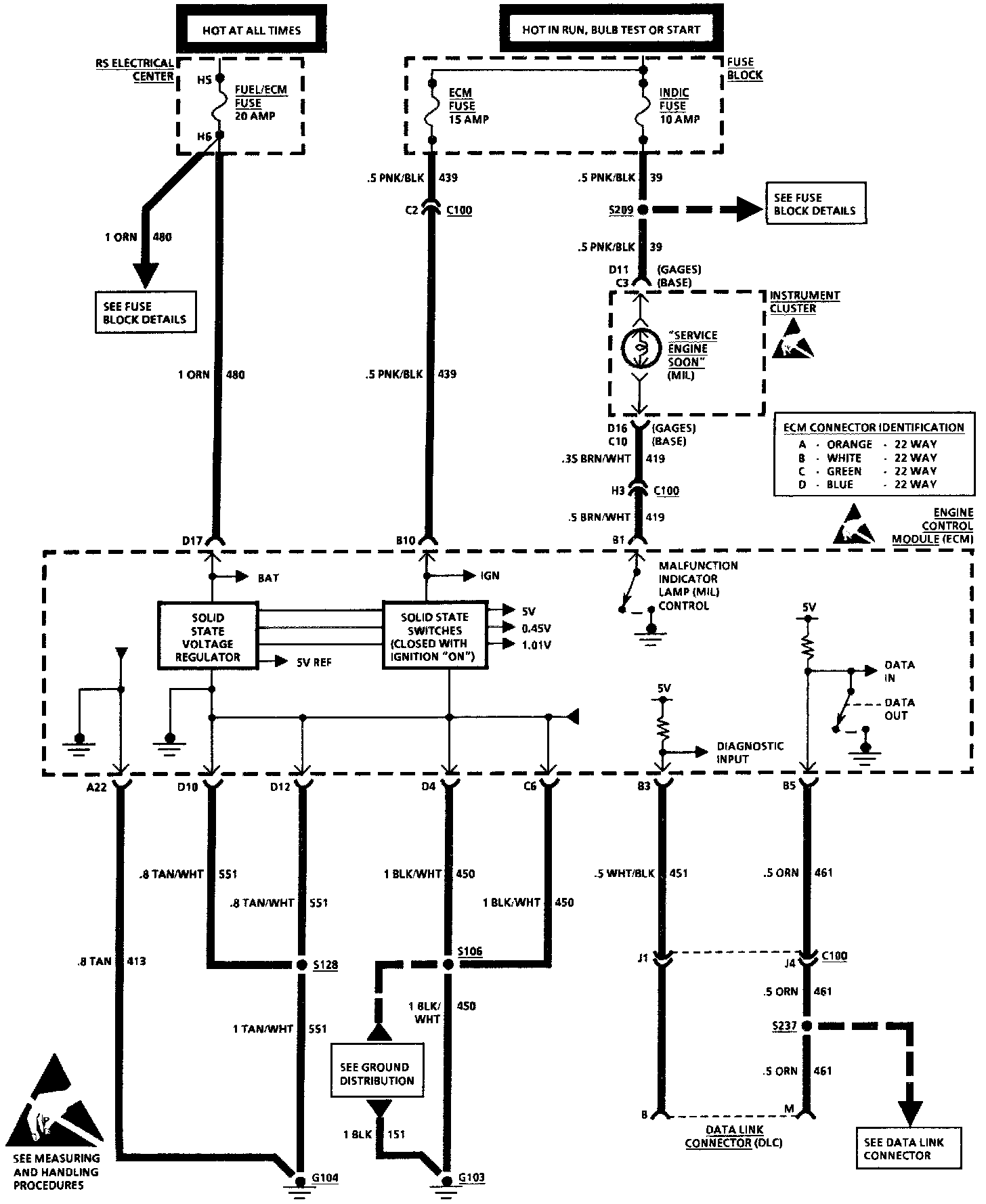

Multiport Fuel Injection: Power, Ground, DLC And Malfunction Indicator Lamp:

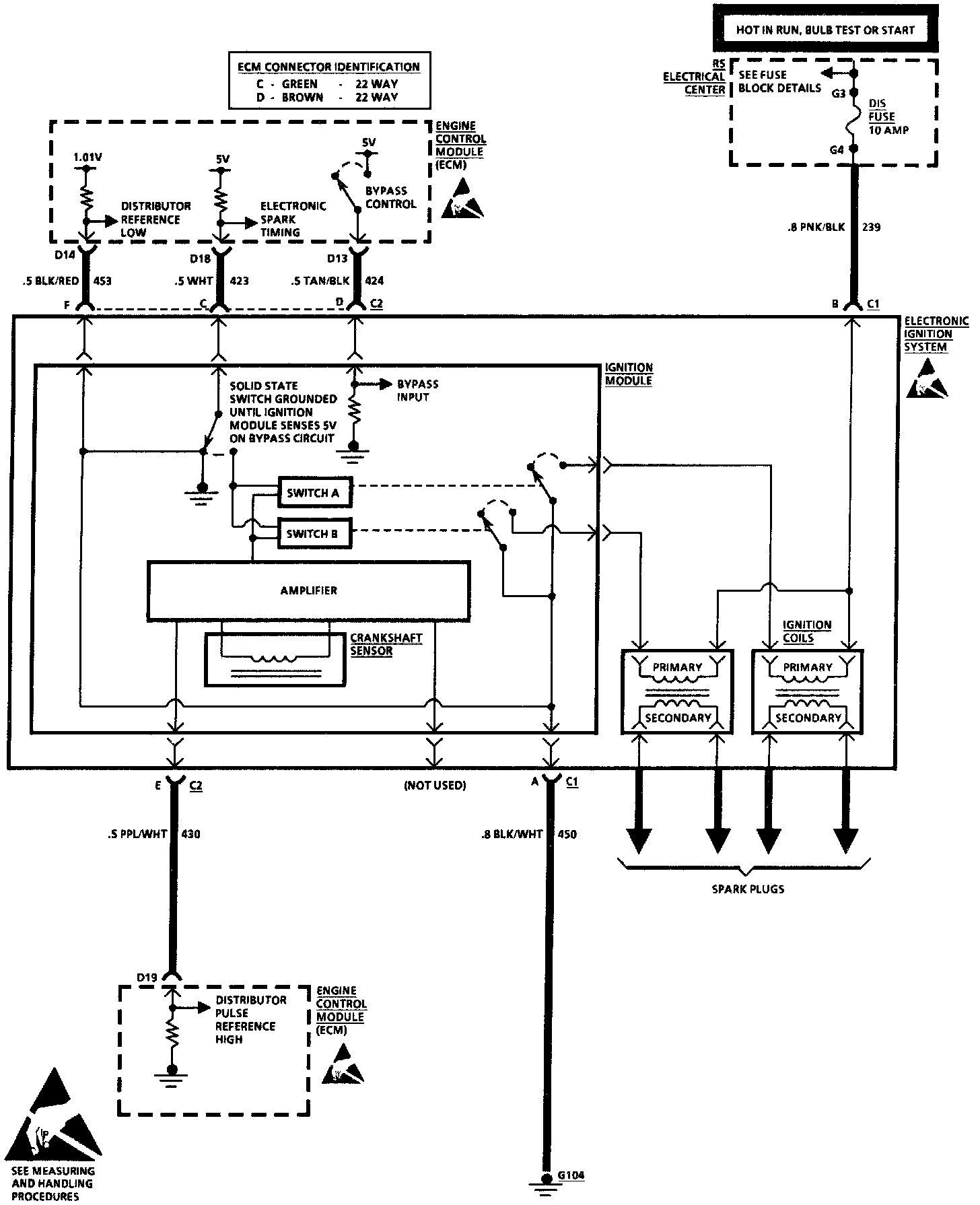

Multiport Fuel Injection: Electronic Ignition System:

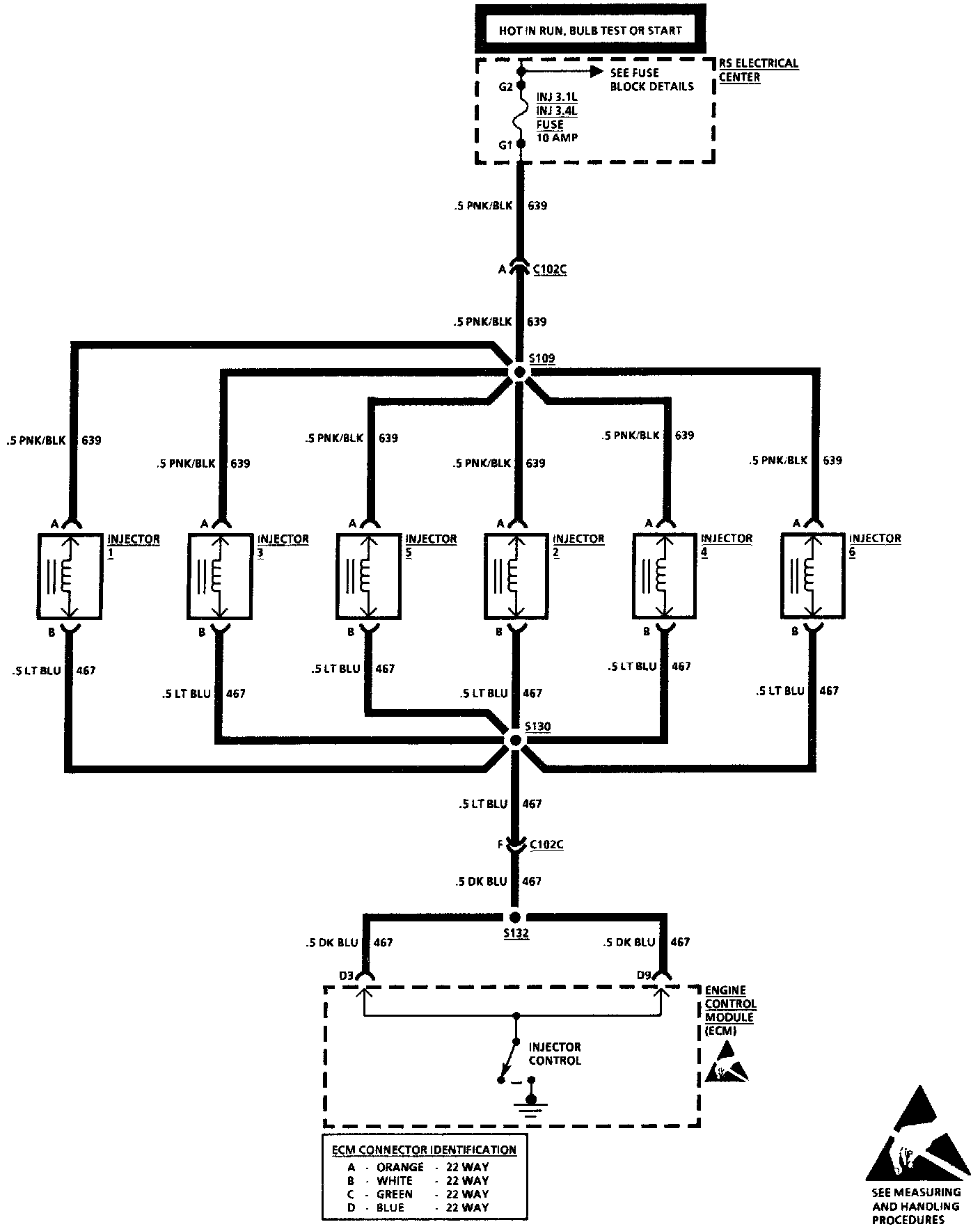

Multiport Fuel Injection: Fuel Injector And Fuel Control:

Multiport Fuel Injection: Fuel Injector And Fuel Control Cont.:

Multiport Fuel Injection: Engine Data Sensors:

Multiport Fuel Injection: Engine Data Sensors Cont.:

Multiport Fuel Injection: Automatic Transaxles:

Multiport Fuel Injection: Automatic Transaxles:

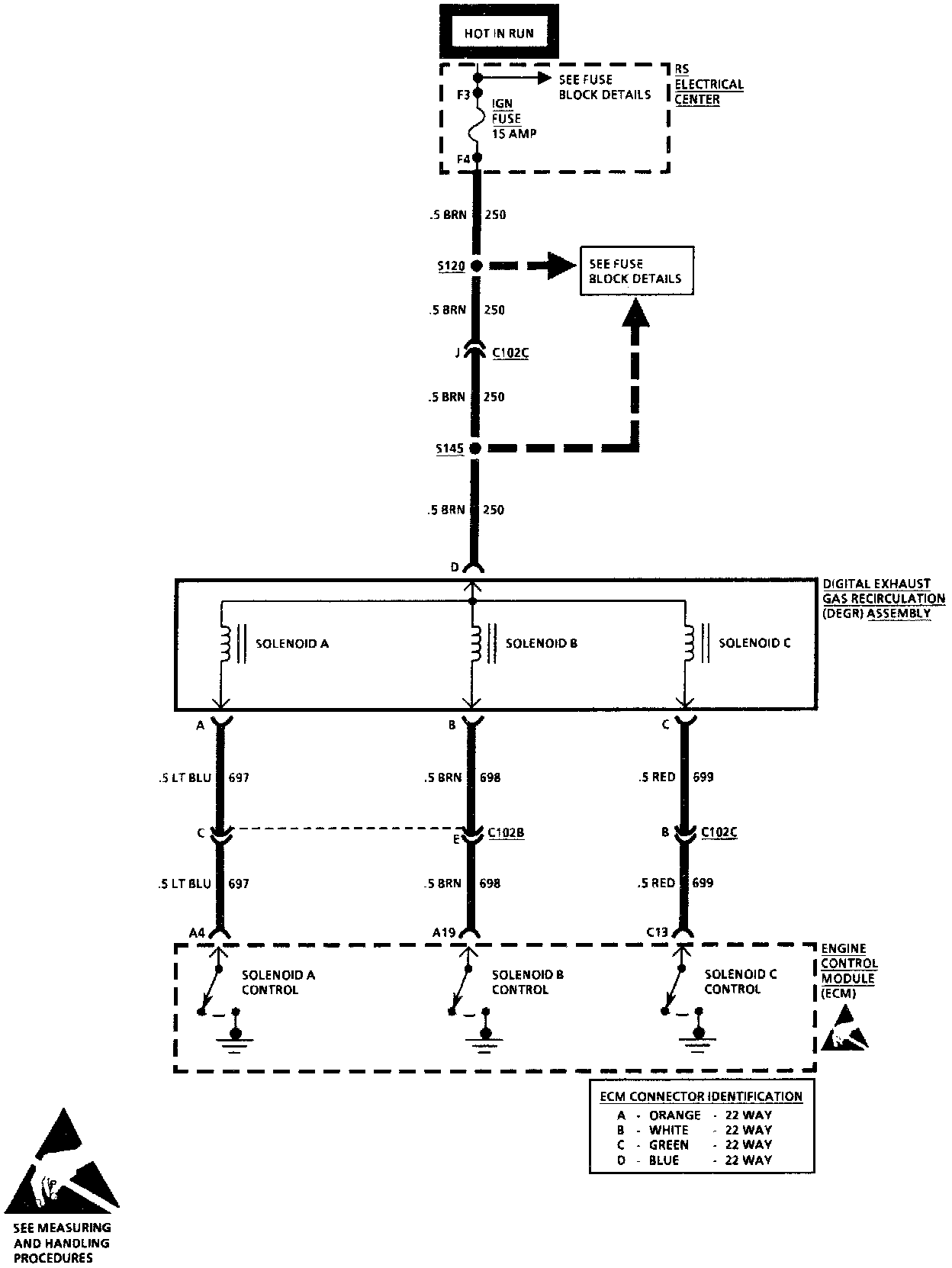

Multiport Fuel Injection: Digital Exhaust Gas Recirculation:

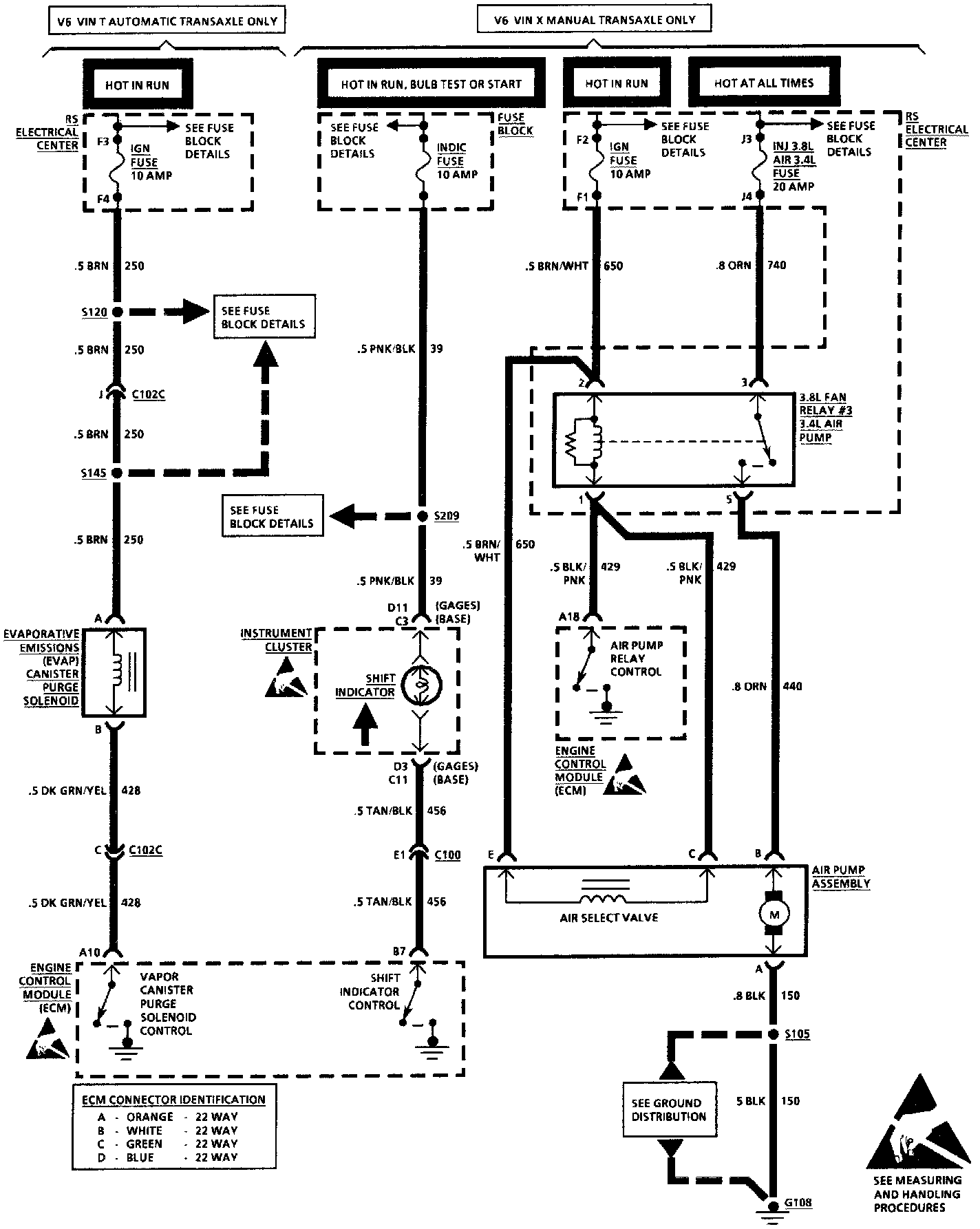

Multiport Fuel Injection: Vapor Canister Purge Solenoid, Air Pump Relay And Shift Indicator:

Multiport Fuel Injection: Idle Air Control:
