Home >> Chevrolet >> 1994 >> Lumina V6-191 3.1L VIN T MFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G111 and G113

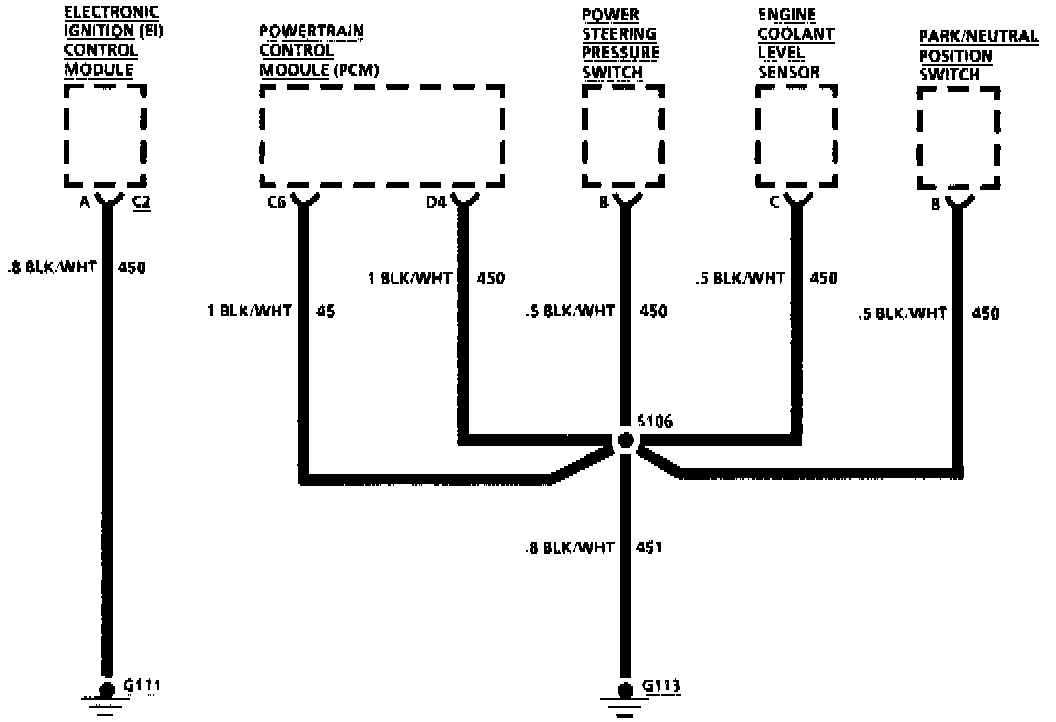

G111 and G113

Ground Distribution:
