Underhood Electrical Center # 1
Underhood Electrical Center # 1

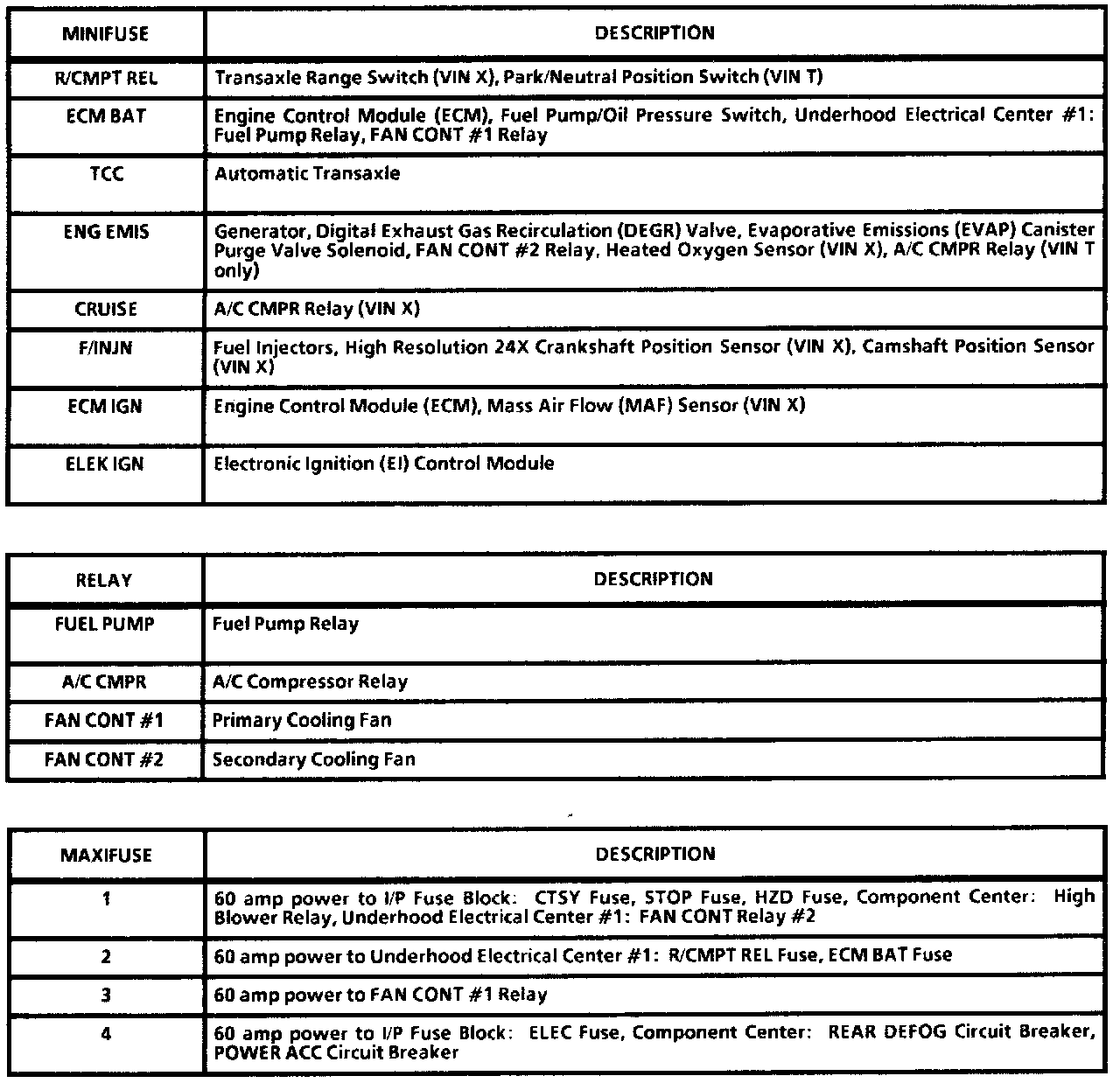

Underhood (U/H) Electrical Center # 1 - Part 1 Of 2:
Underhood (U/H) Electrical Center # 1 - Part 2 Of 2:
