Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1994 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> Door Latch Switch

Door Latch Switch

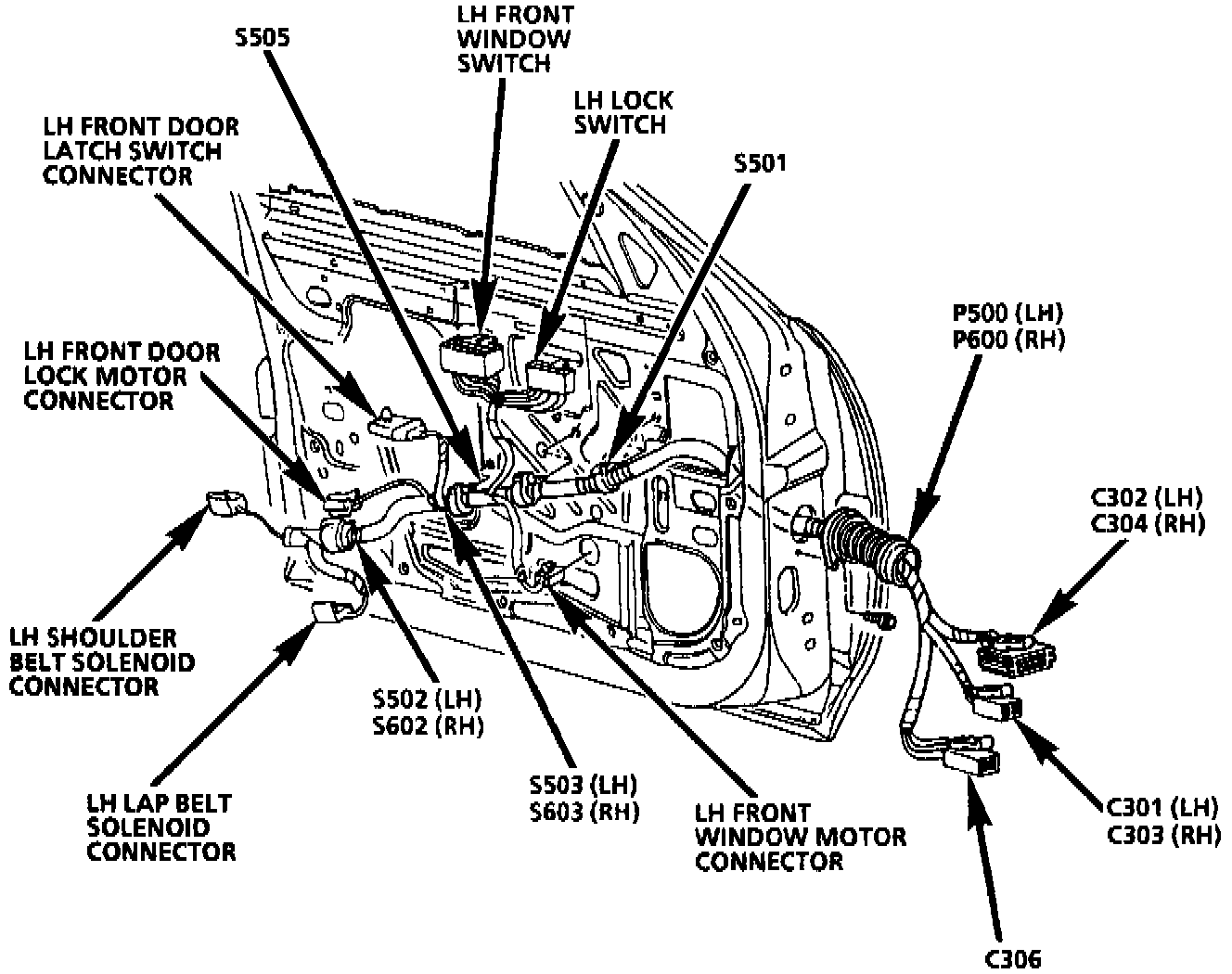

LH Front Door (RH Door Similar):
