Power Locks
Power Locks
Automatic Door Locks Circuit - Part 1 Of 3:

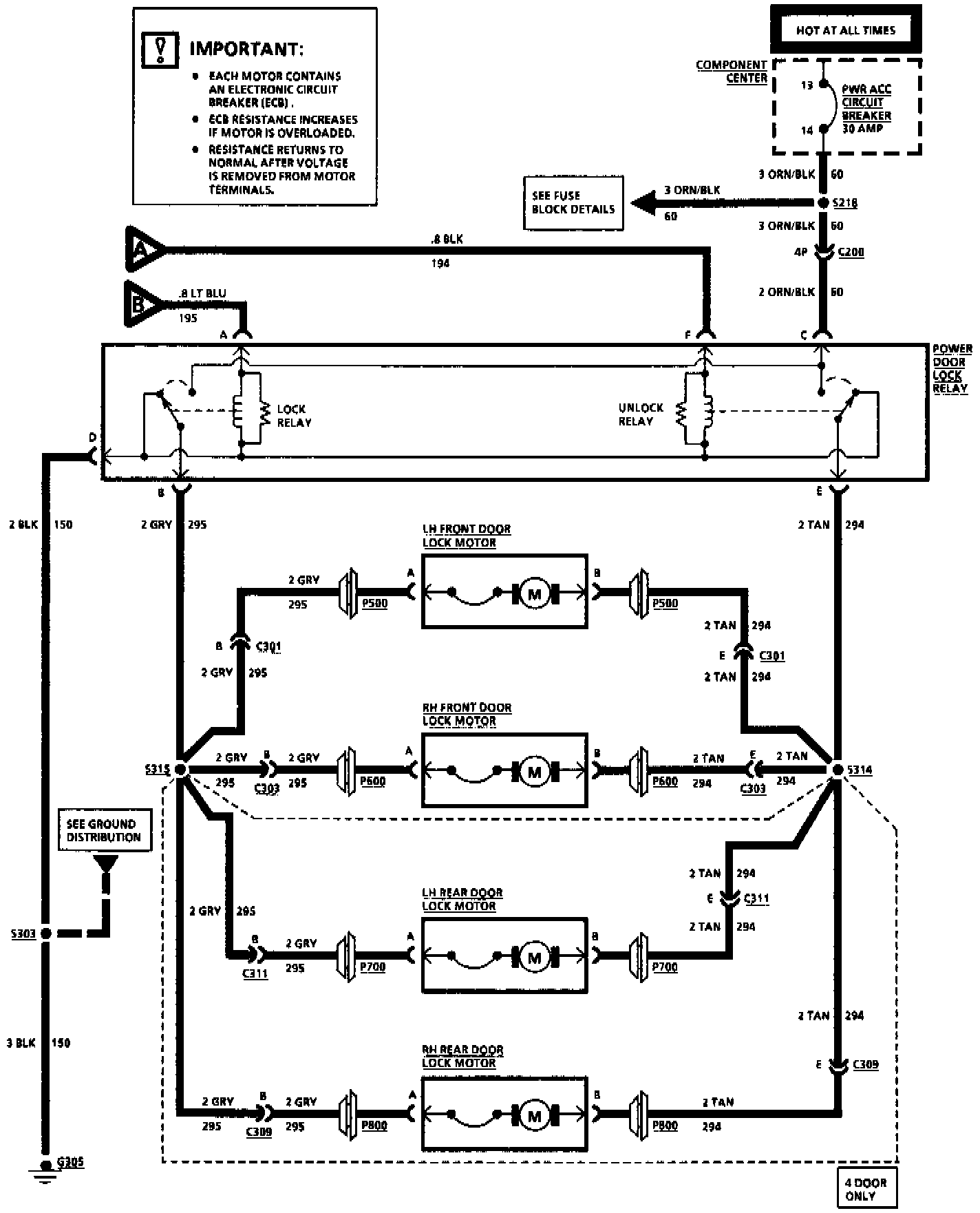

Automatic Door Locks Circuit - Part 2 Of 3:

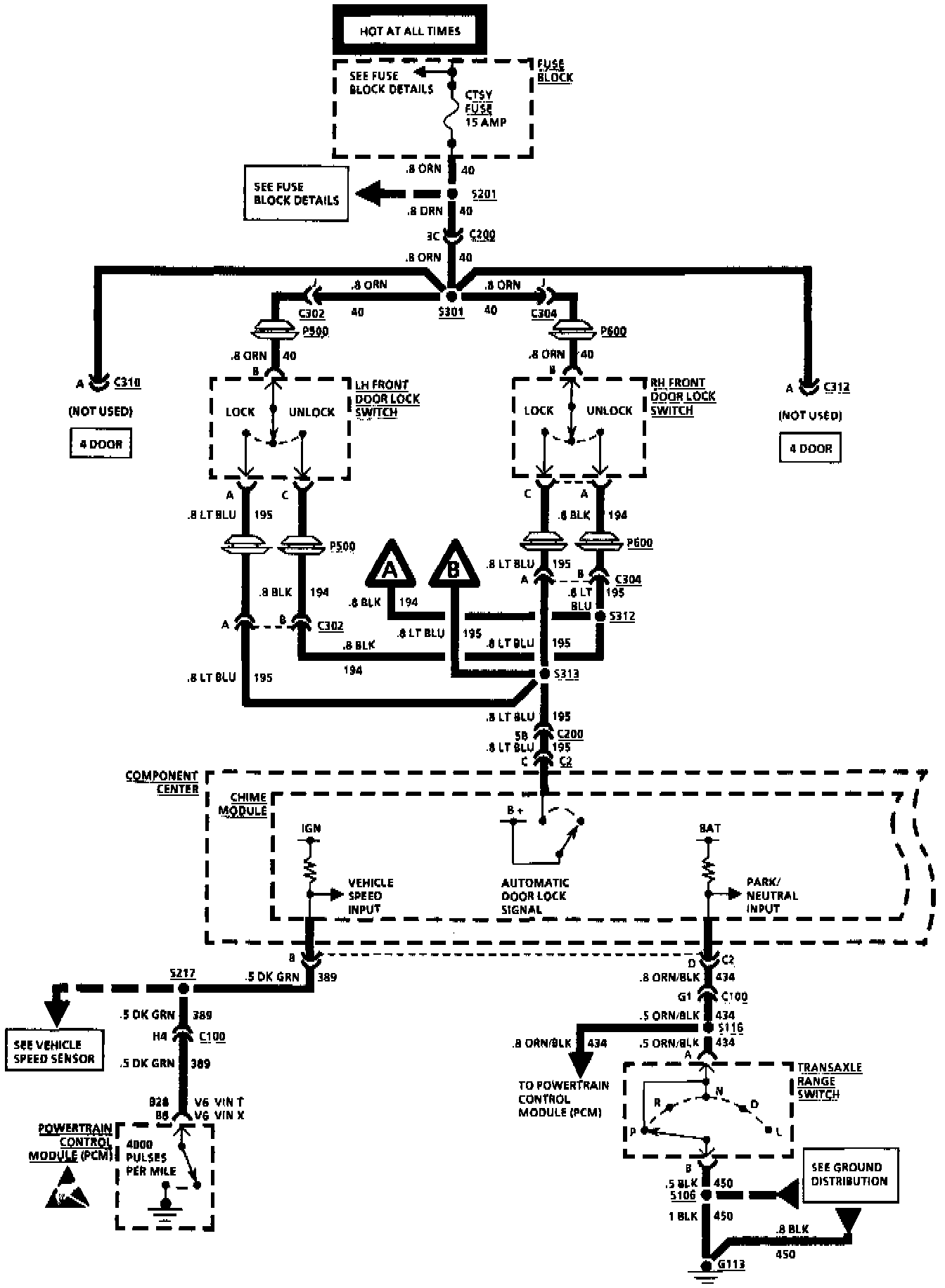

Automatic Door Locks Circuit - Part 3 Of 3:
