Air Delivery & Temperature Controls

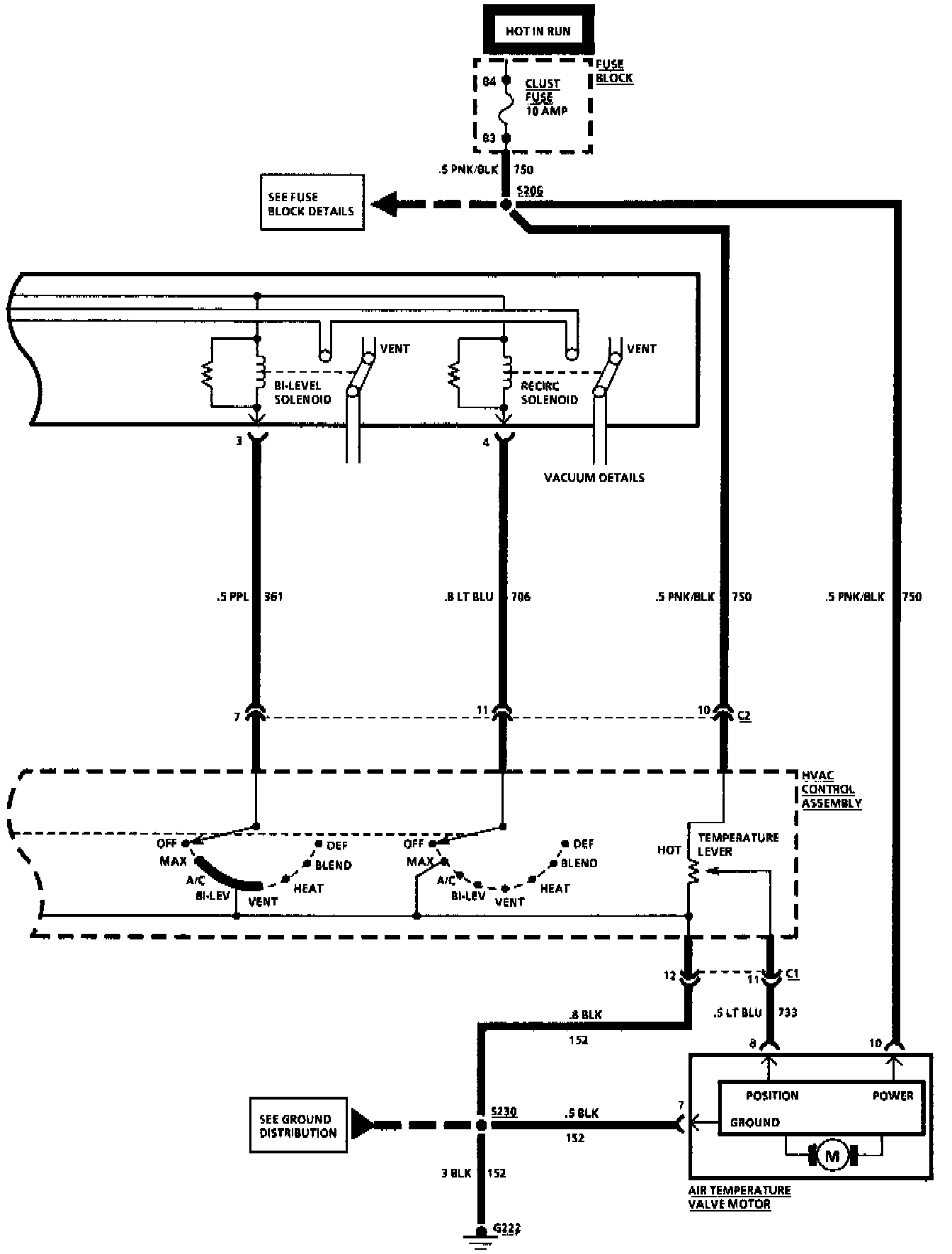

HVAC: Air Delivery And Temperature Control (Option C67) - Part 1 Of 2:



HVAC: Air Delivery And Temperature Control (Option C67) - Part 2 Of 2:
