Base Cluster
Base Cluster

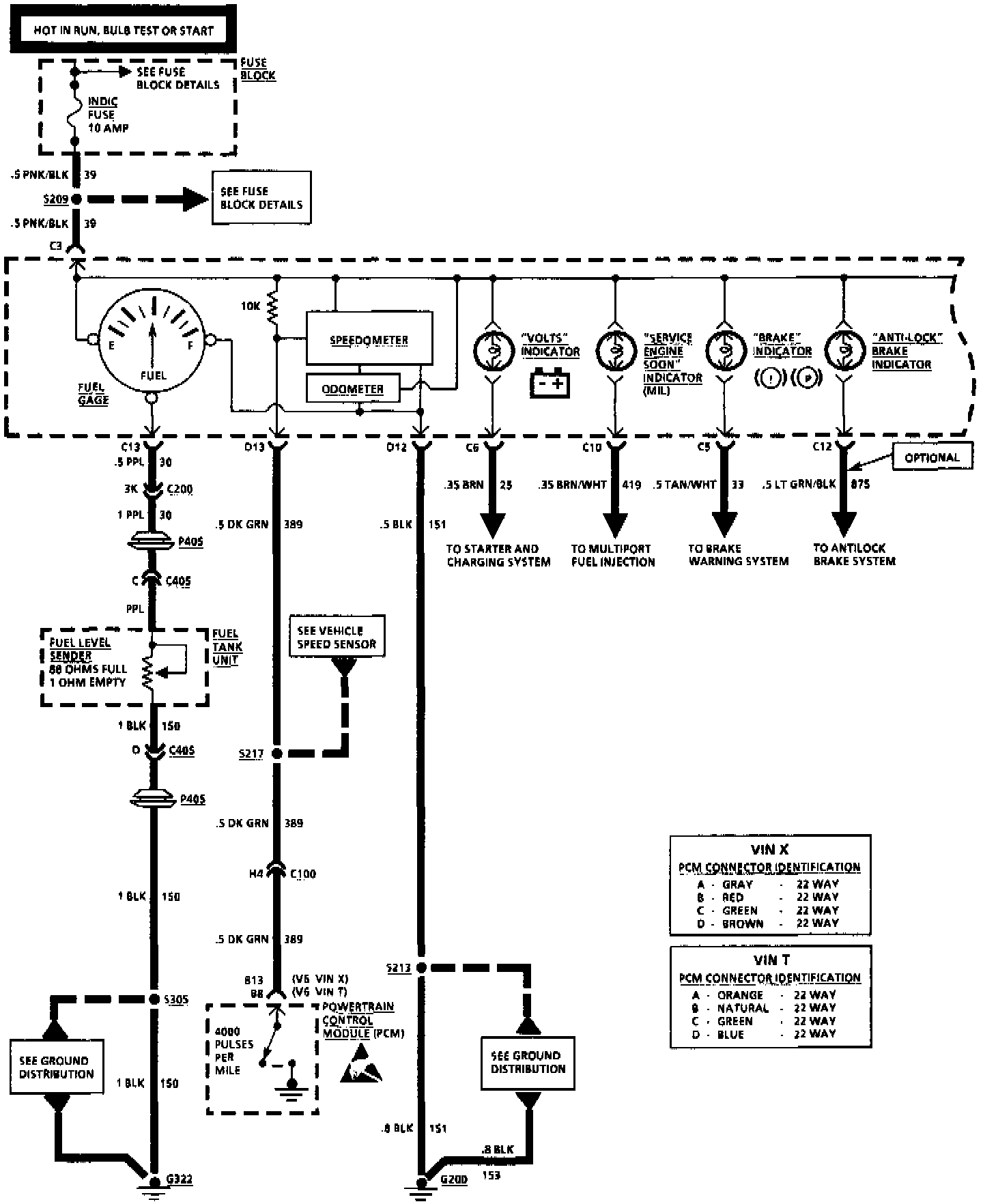

Instrument Cluster: Base - Part 1 Of 3:

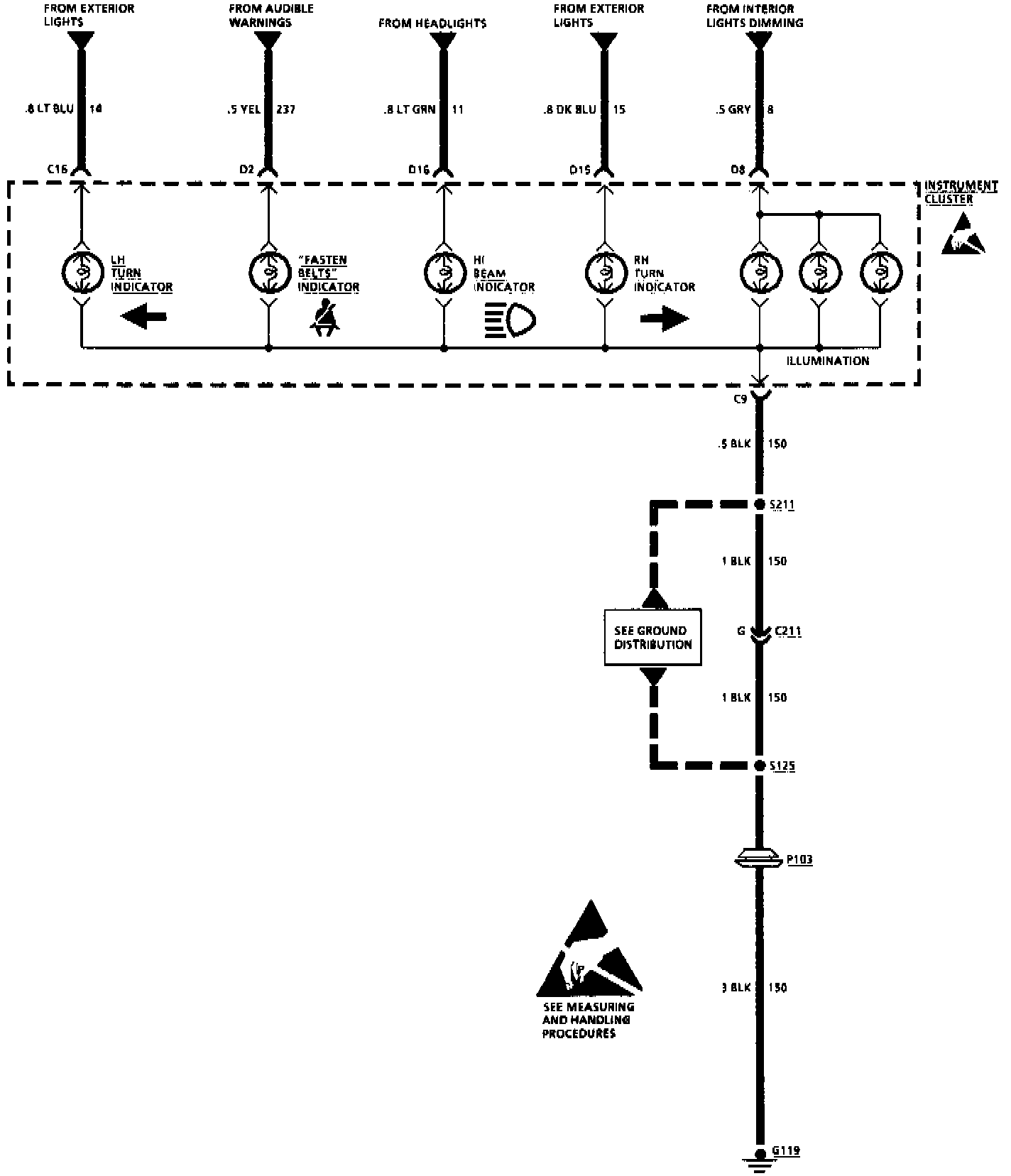

Instrument Cluster: Base - Part 2 Of 3:

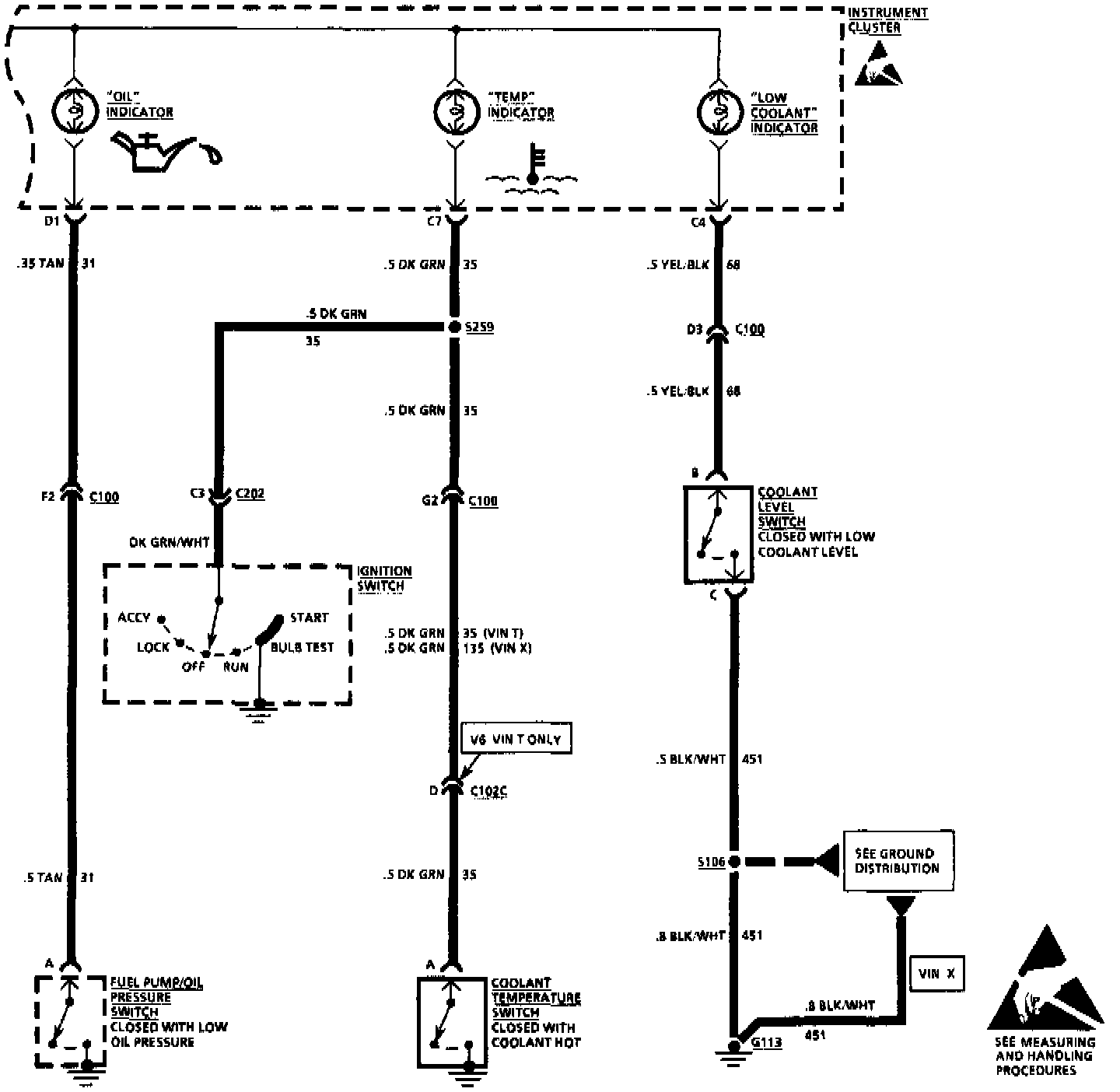

Instrument Cluster: Base - Part 3 Of 3:
