Power Distribution Diagrams

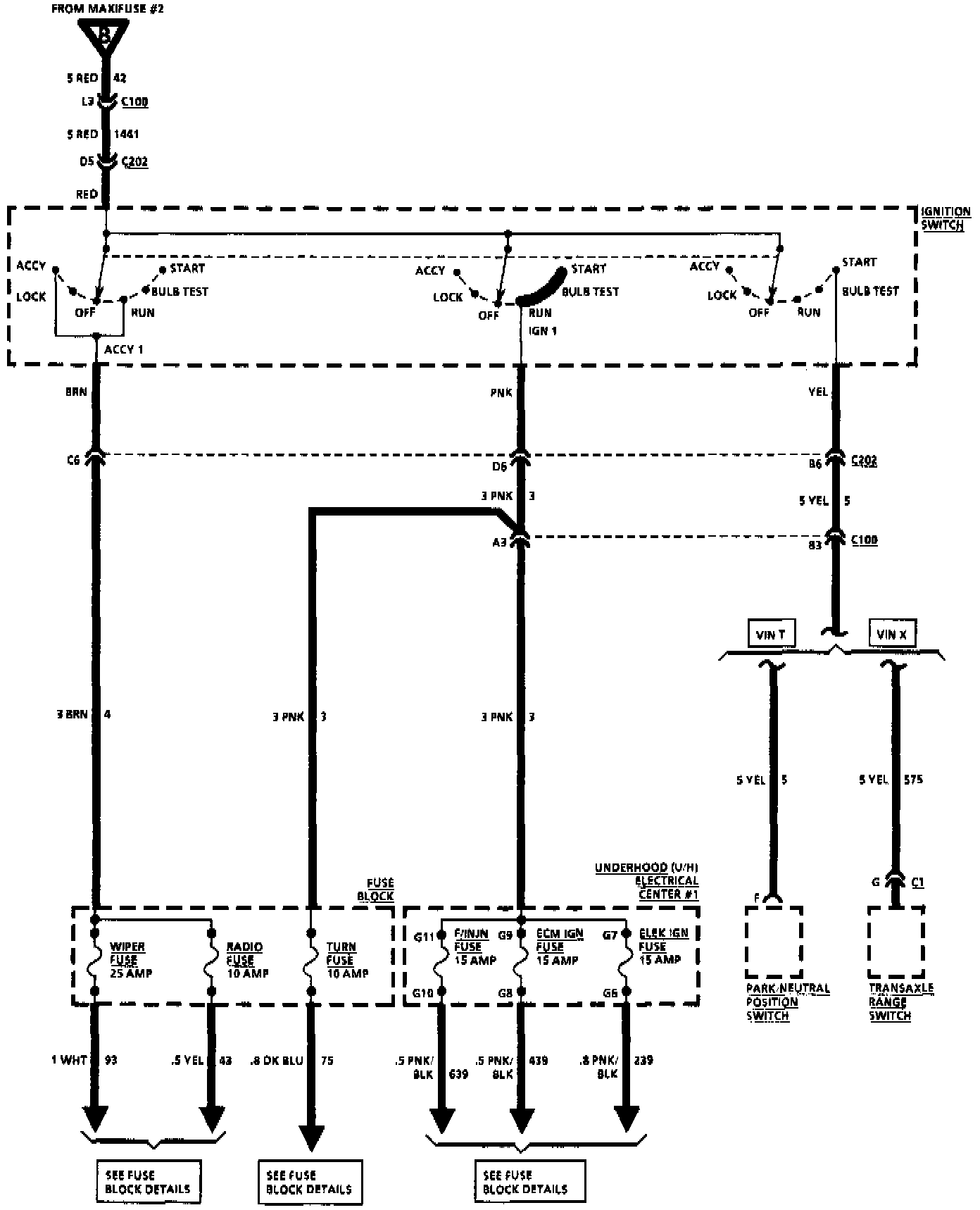

Power Distribution: Part 1 Of 4:

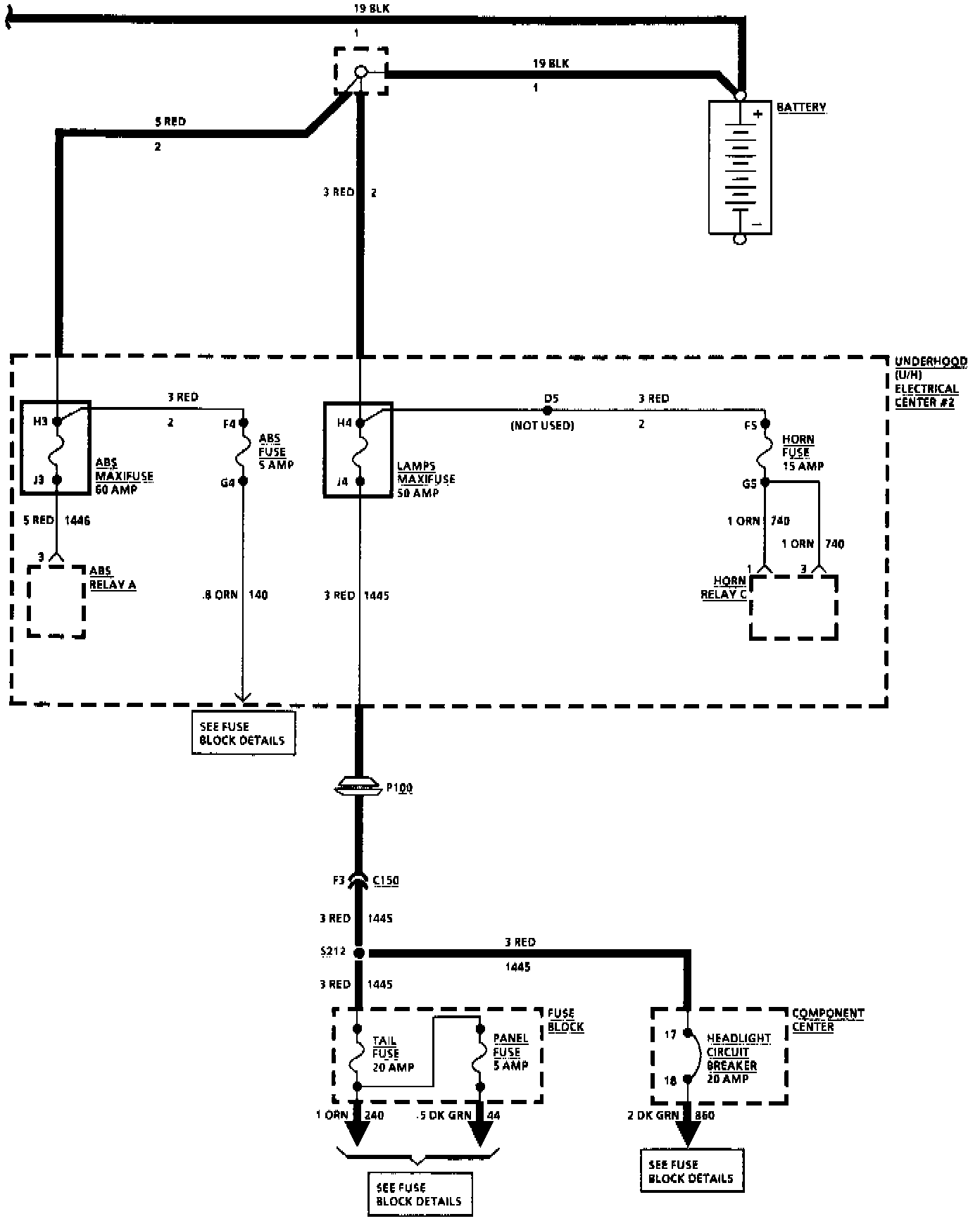

Power Distribution: Part 2 Of 4:

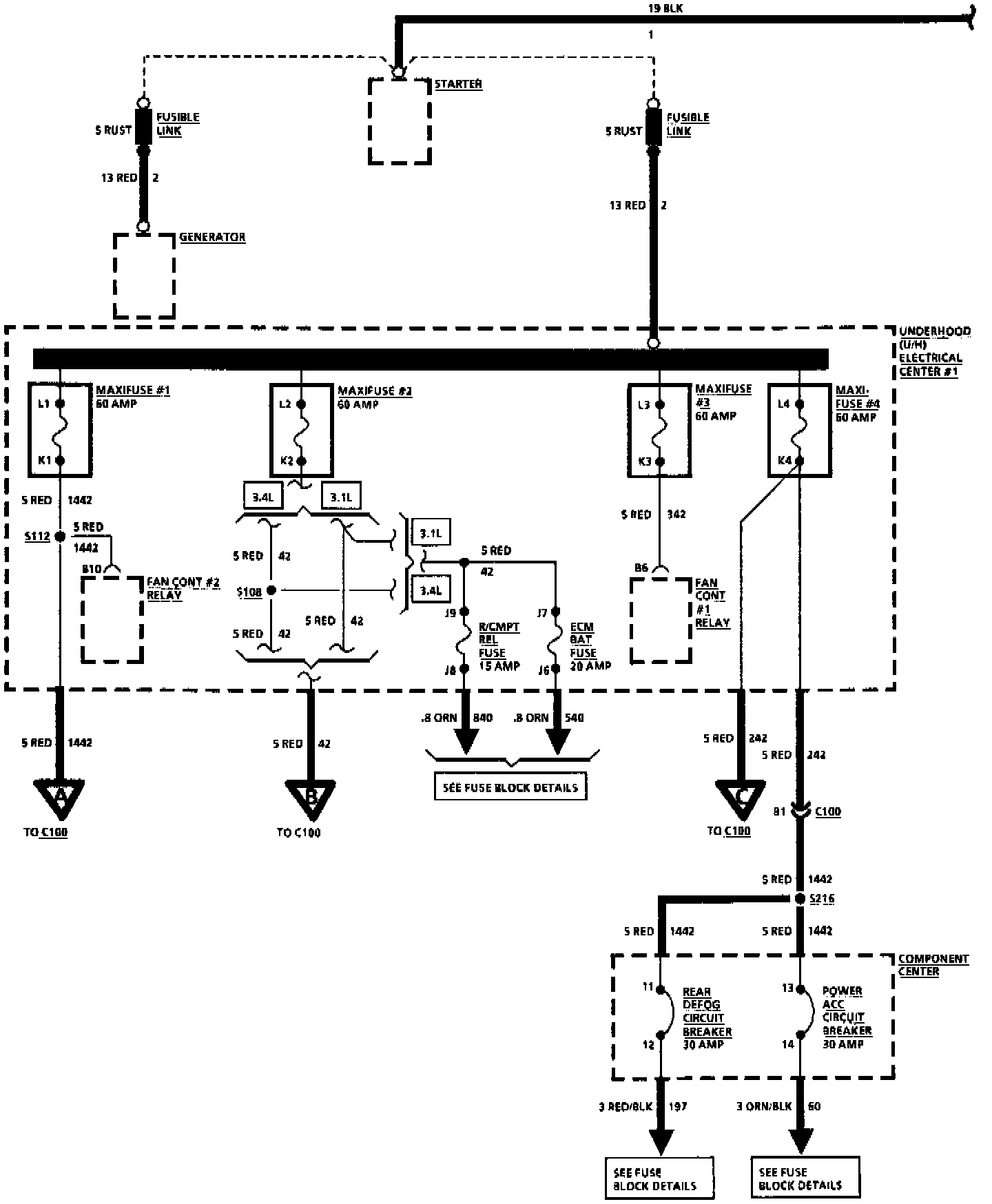

Power Distribution: Part 3 Of 4:

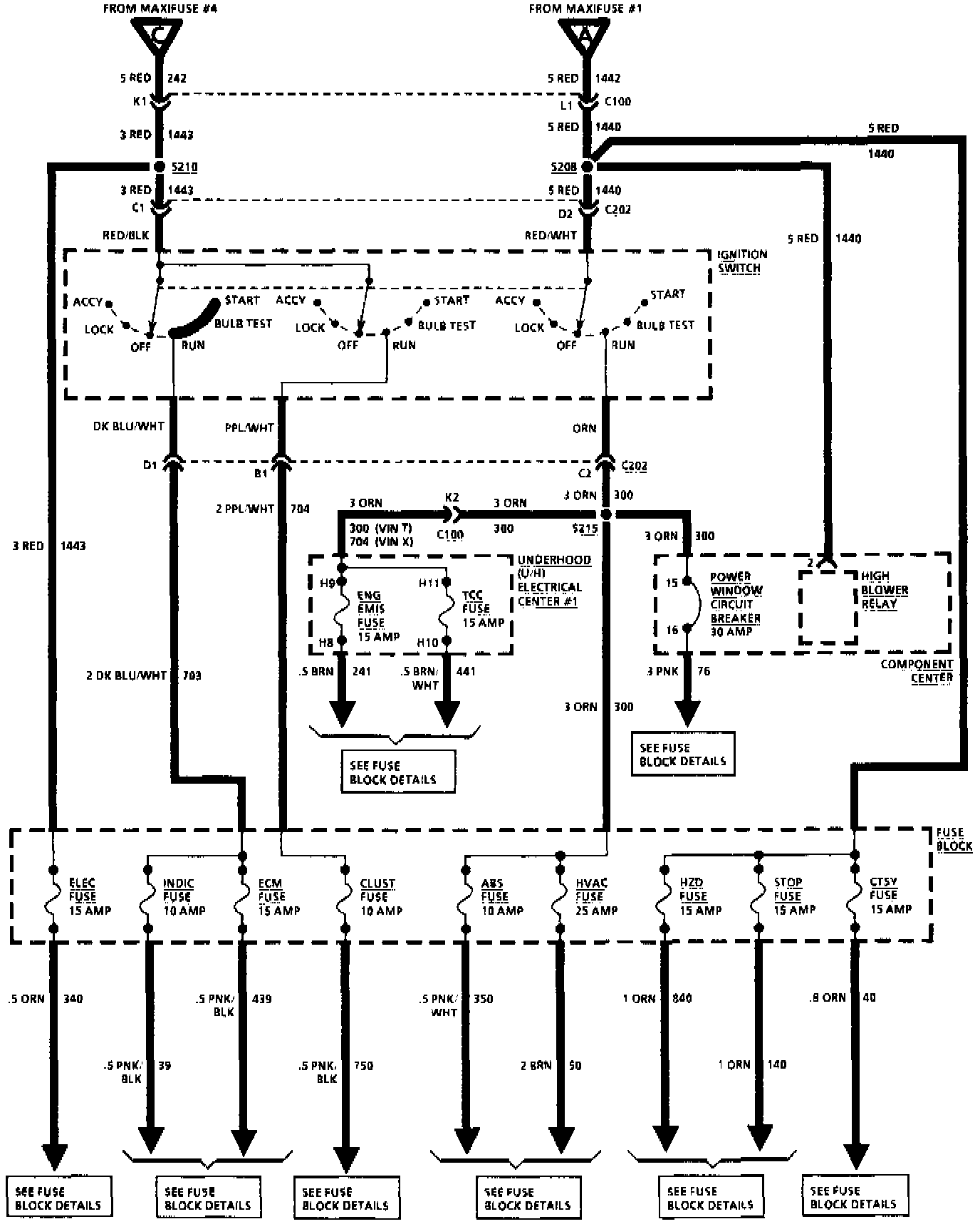

Power Distribution: Part 4 Of 4:
