Home
>>
Chevrolet
>>
1994
>>
Lumina V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

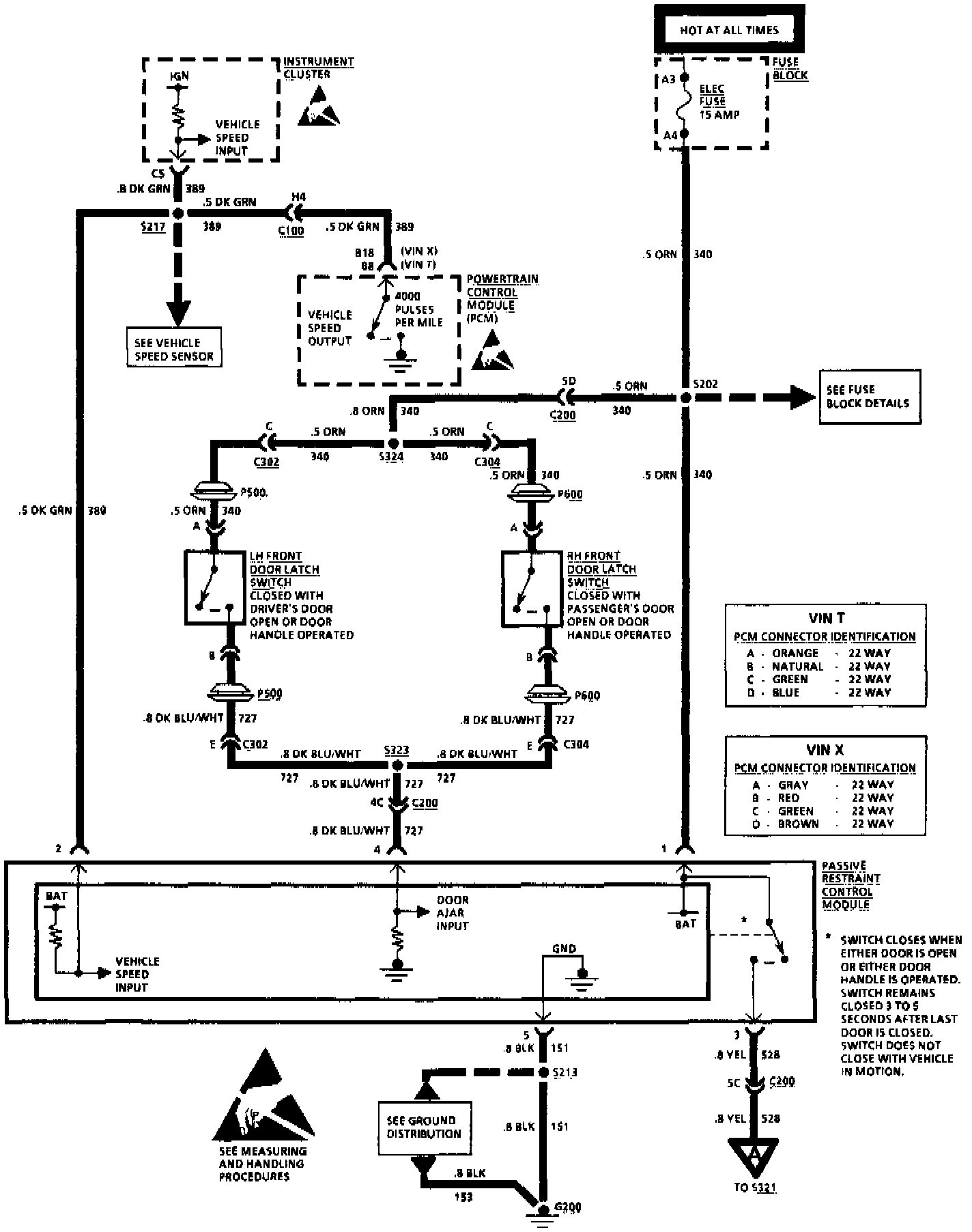

Automatic Seat Belts/Key Cylinder Light - Part 1 Of 2:

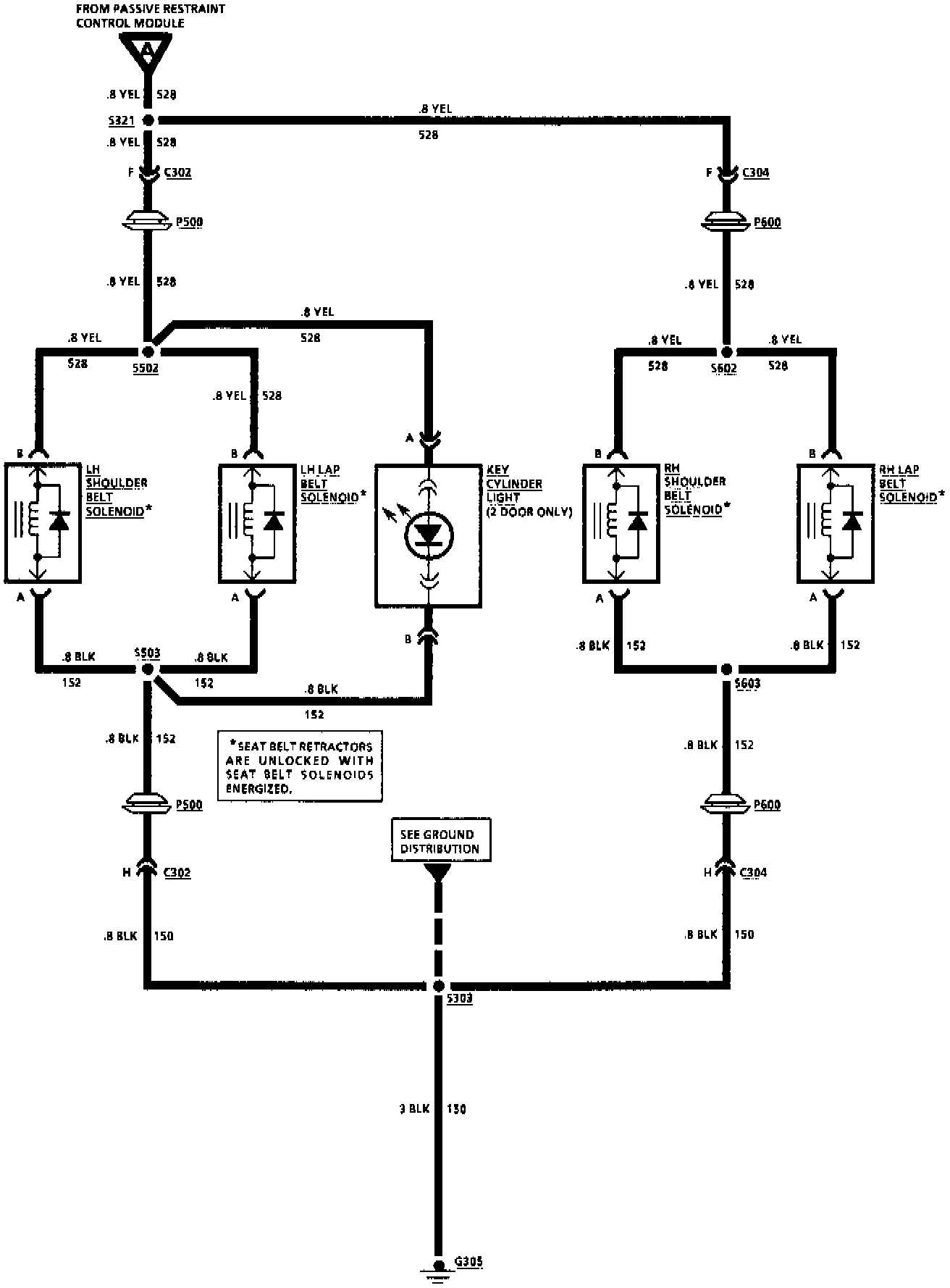

Automatic Seat Belts/Key Cylinder Light - Part 2 Of 2:
