Home >> Chevrolet >> 1995 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Mechanical Diagrams >> Power Steering Line/Hose

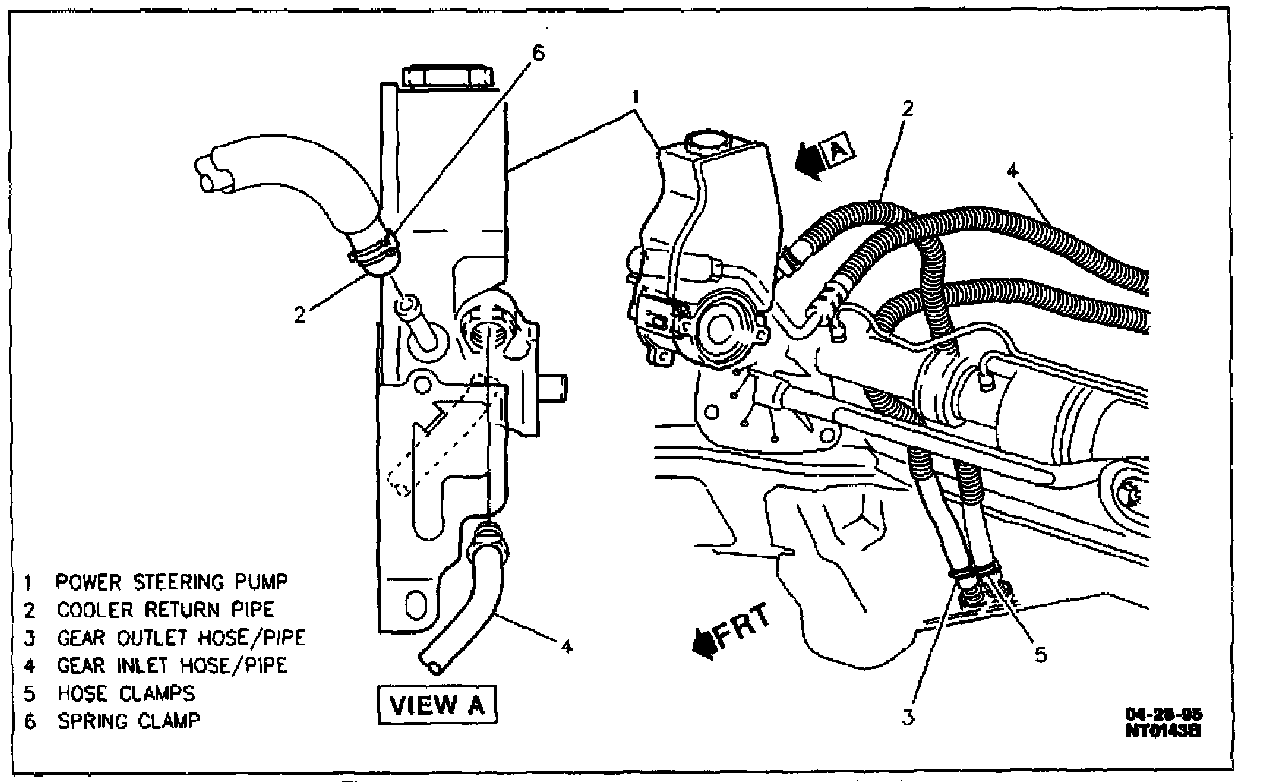

Power Steering Line/Hose
