System Diagram

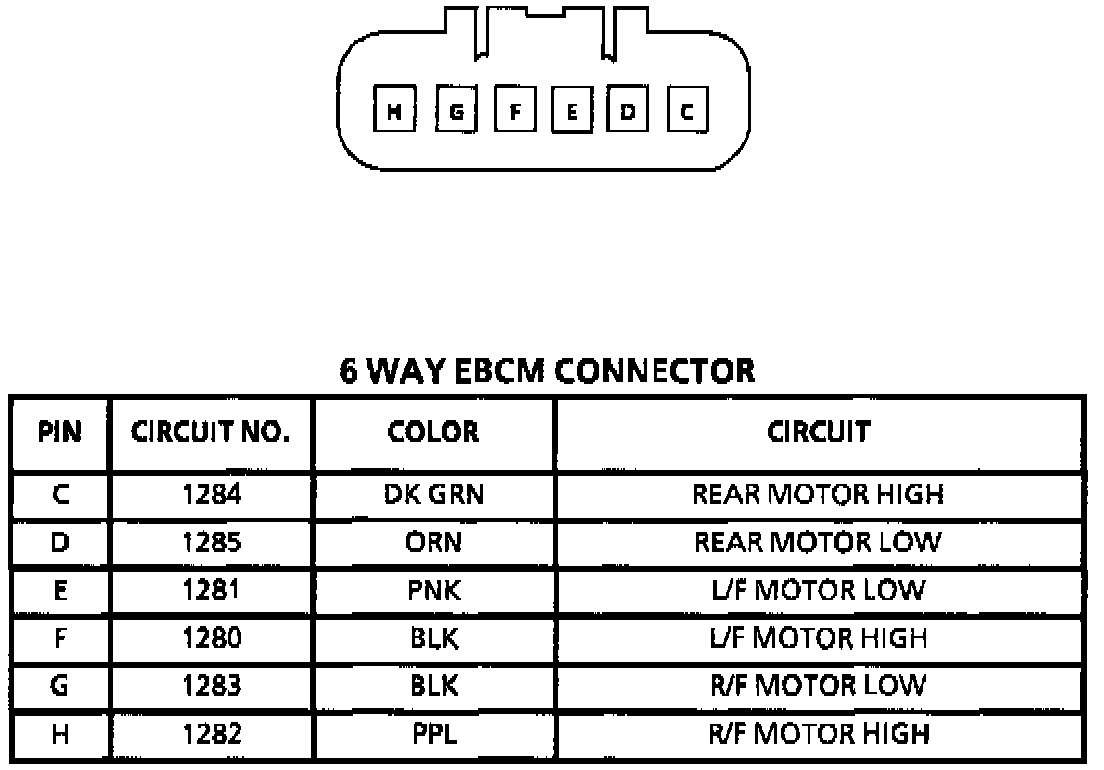

Fig. 32 EBCM Connector Face Views (Part 2 Of 3).:

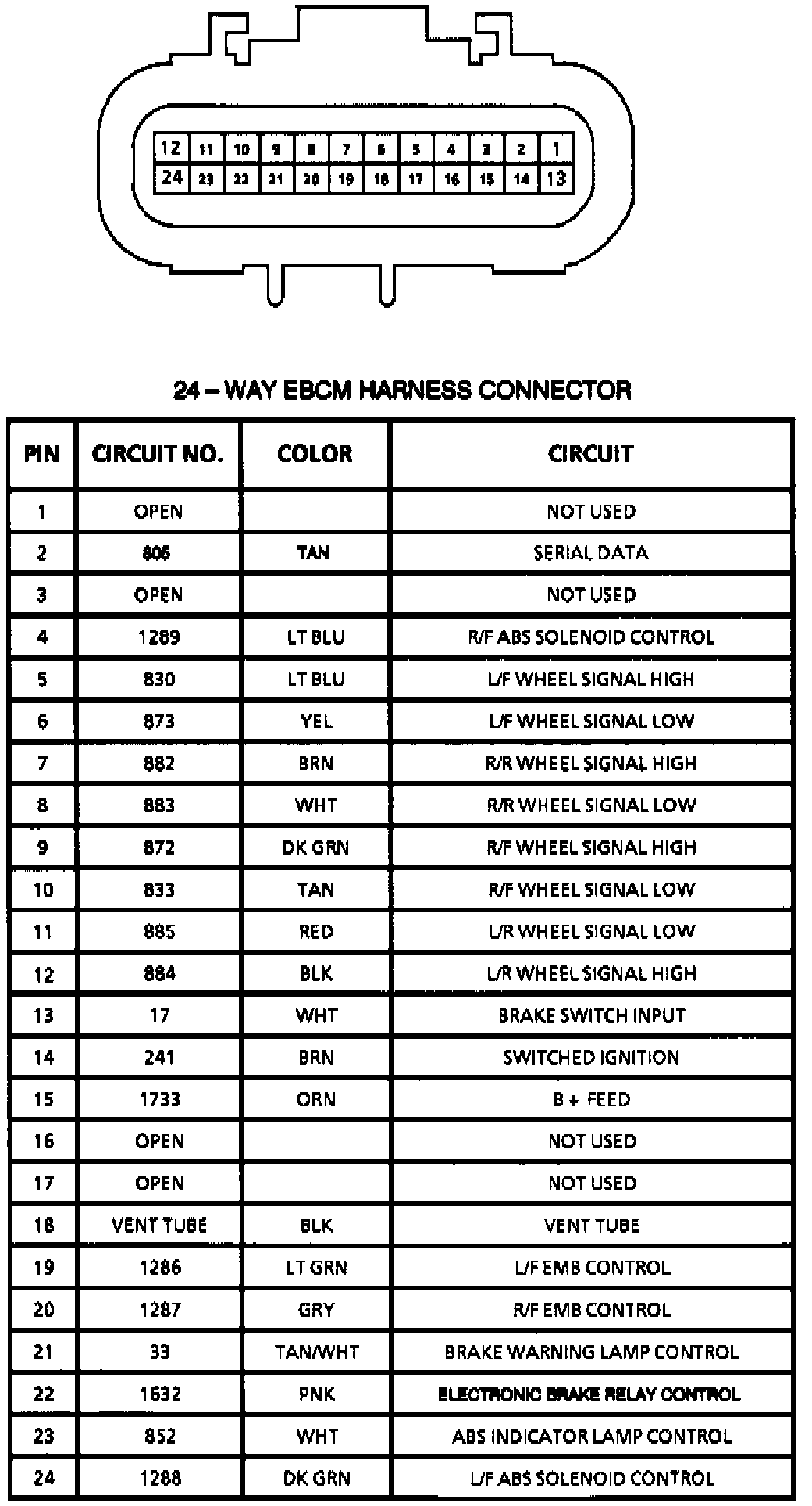

Fig. 32 EBCM Connector Face Views (Part 3 Of 3).:

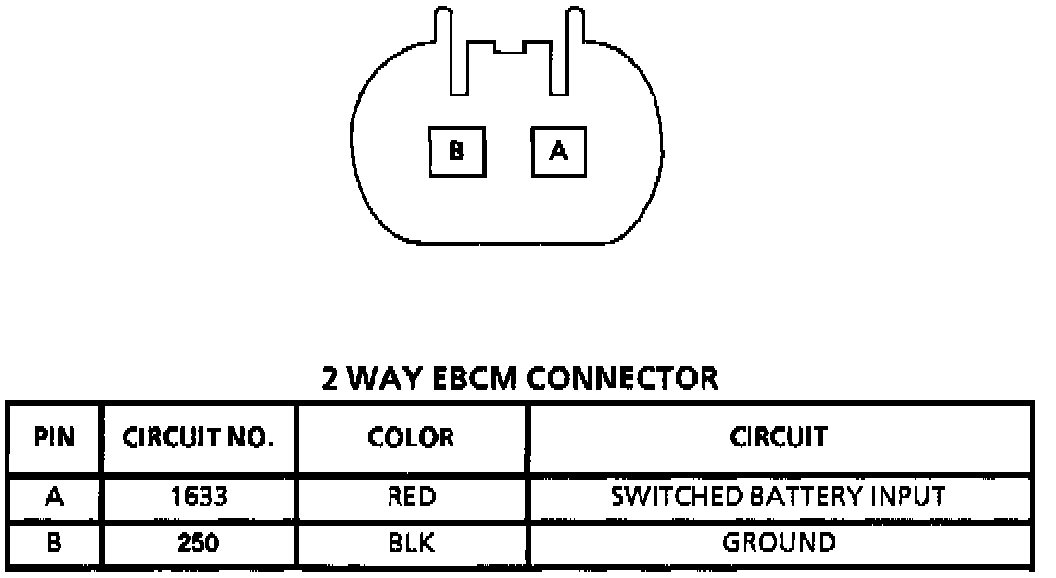

When performing diagnostic procedures refer to Fig. 32 for EBCM connector terminal identification.
