Daytime Running Lamp Control Unit

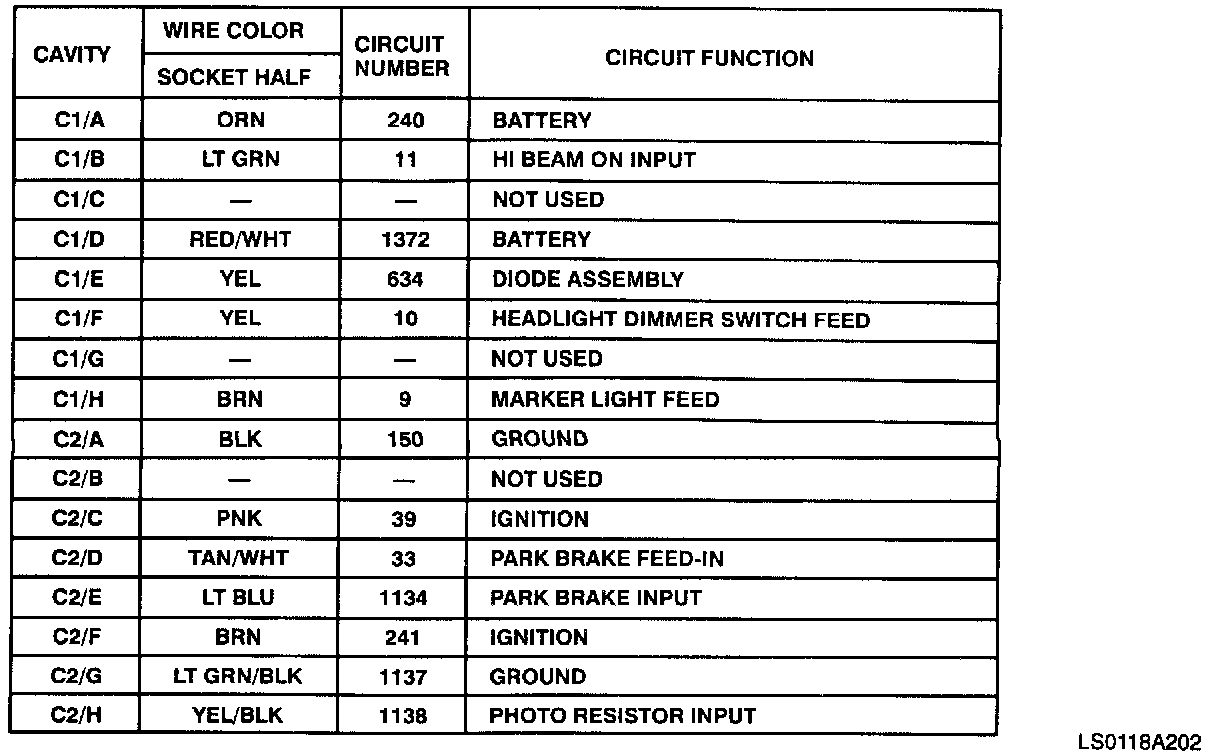

Daytime Running Lights (DRL) Module:



Daytime Running Light (DRL) Module:
