Chevrolet
>>
1995
>>
Beretta V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
>>

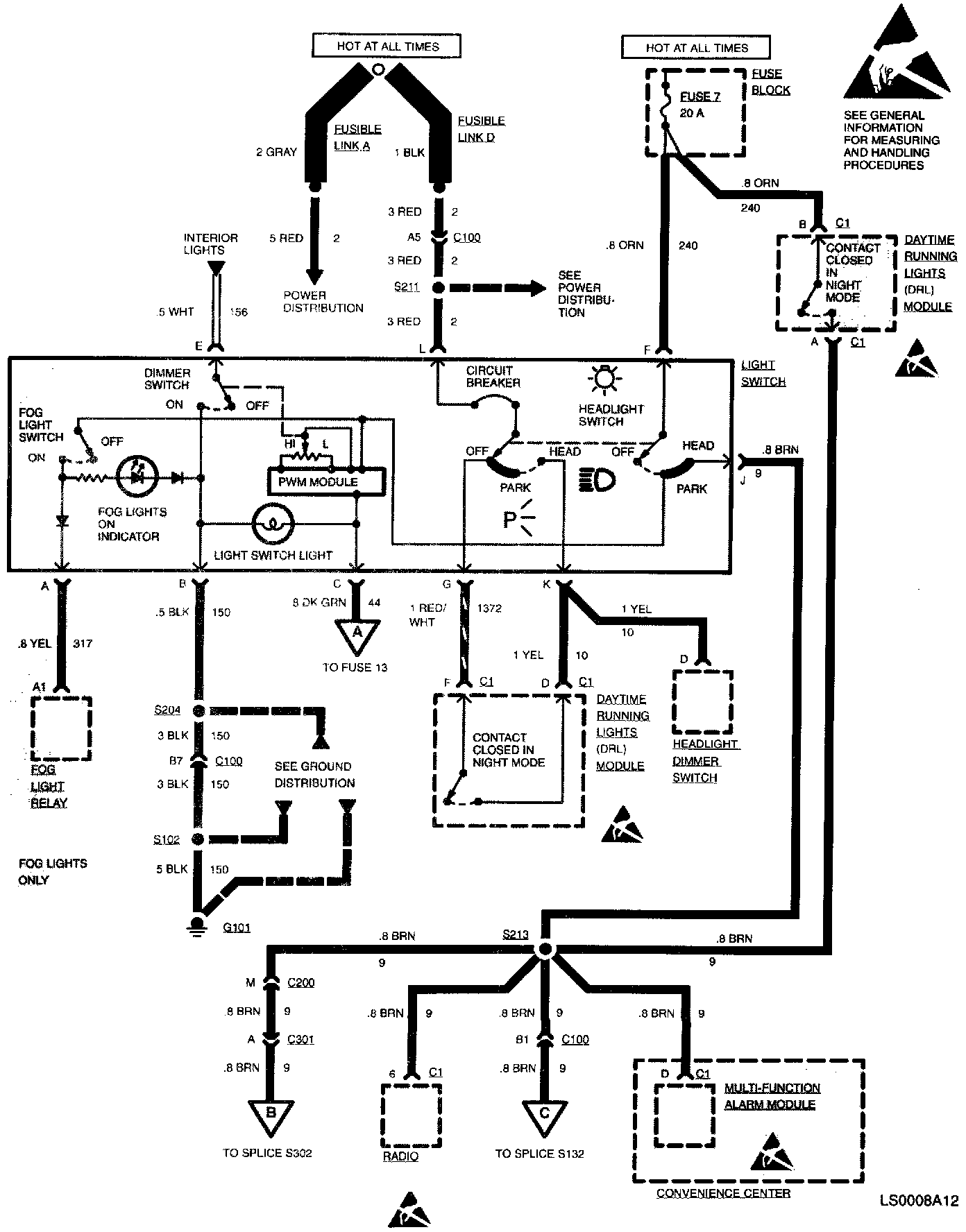

Headlamp Switch
>>
Coupe
Coupe

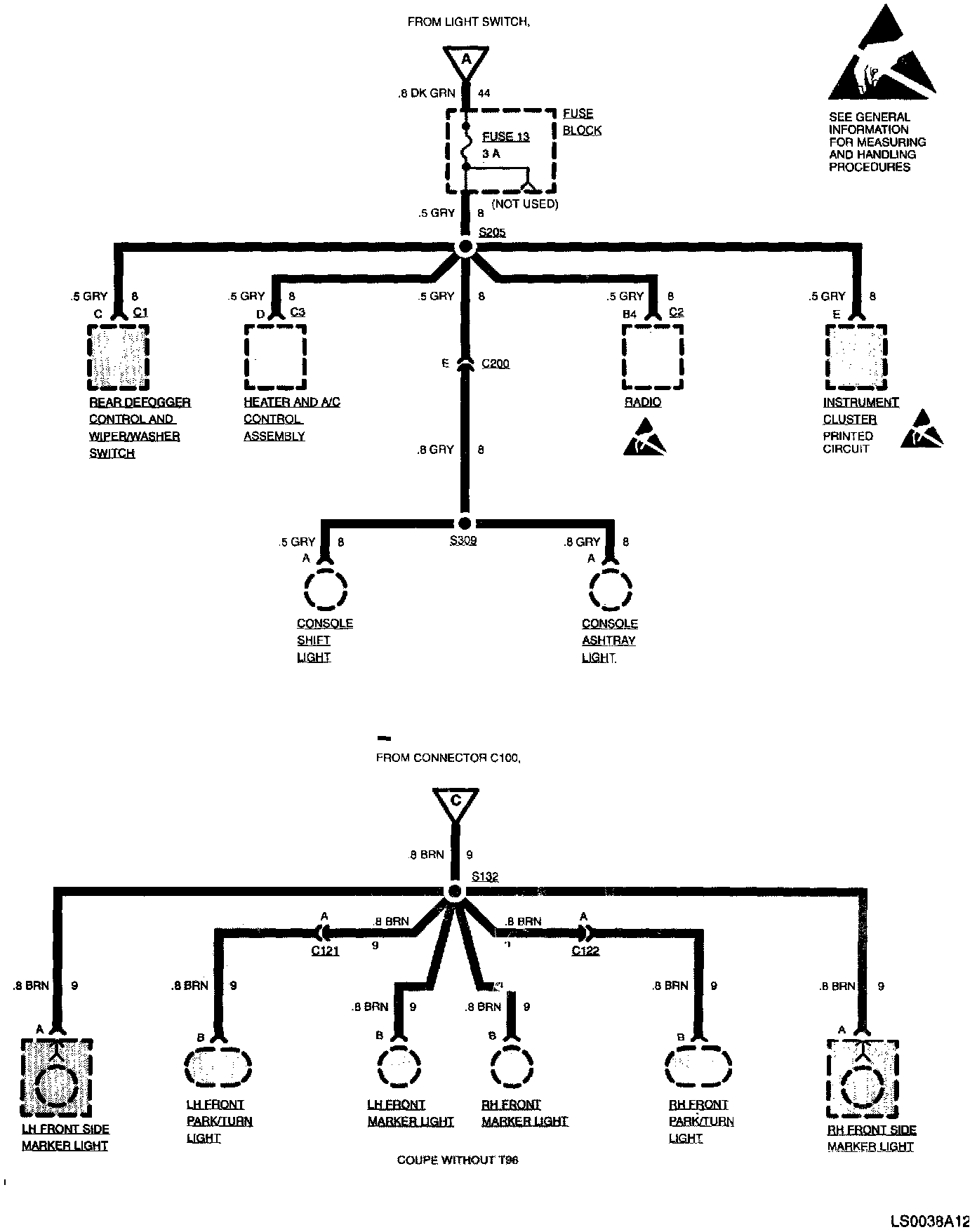

Light Switch Details:
Light Switch Details ( Sedan ):
Light Switch Details:
