Home >> Chevrolet >> 1995 >> Beretta V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram

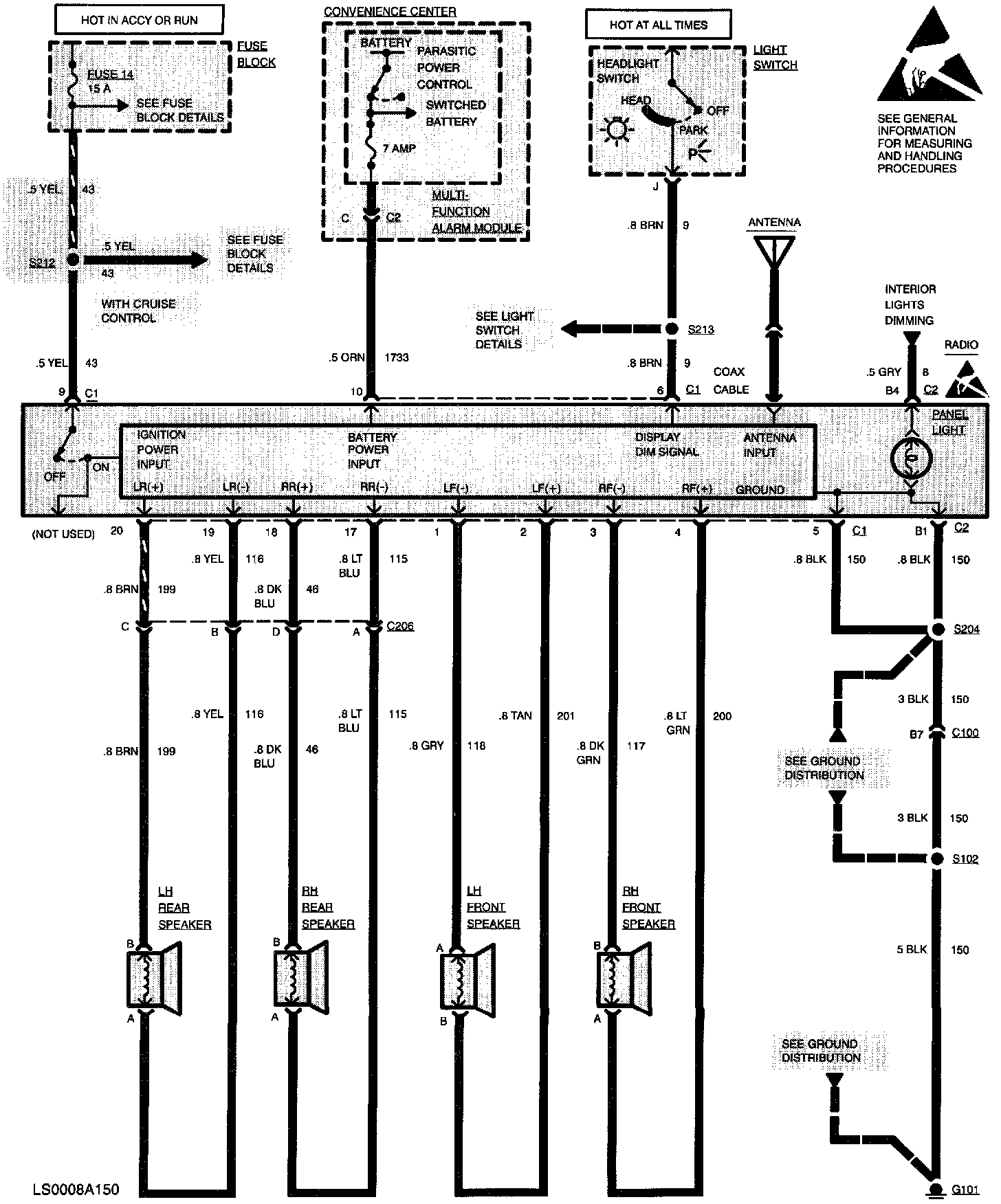

System Diagram

Radio / Audio Systems:
