Steering Column - Tilt Column

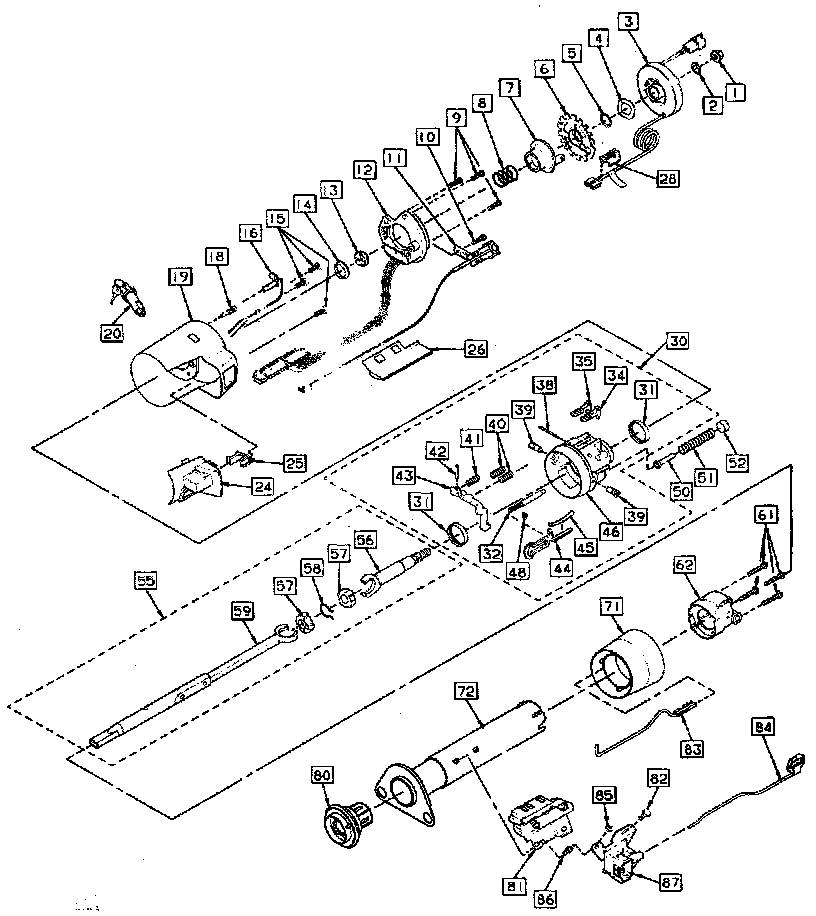

Exploded View Of Tilt Steering Column:

1-NUT, HEX LOOKING (M14x1.5)
2-RING, RETAINING
3-COIL ASM, INFL RESTRAINT
4-WASHER, WAVE
5-RING, RETAINING
6-LOCK, SHAFT
7-CAM ASM, TURN SIG CANCEL
8-SPRING, UPPER BEARING
9-SCREW, BNDG HD OR RECESS
10-SCREW, OVAL HD SOC TAP
11-PIVOT ASM, SWITCH ACTUATOR
12-SWITCH ASM, TURN SIGNAL
13-SEAT, UPPER BRG INNER RACE
14-RACE, INNER
15-SCREW, PAN HD SOC TAP
16-SWITCH ASM, BUZZER
18-SCREW, LOCK RETAINING
19-COVER ASM, LOCK HOUSING
20-LOCK CYLINDER SET, STRG COL
24-CAP, COL HSG COVER END
25-ACTUATOR, DIMMER SW ROD
26-PROTECTOR, WIRING
28-SHROUD, CONNECTOR
30-HOUSING ASM, STRG COLUMN
31-BEARING ASM
32-BOLT ASM, SPRING &
34-SHOE, STEERING WHEEL LOCK
35-SHOE, STEERING WHEEL LOCK
38-PIN, DOWEL
39-PIN, PIVOT
40-SPRING, SHOE
41-SPRING, RELEASE LEVER
42-PIN, RELEASE LEVER
43-LEVER, SHOE RELEASE
44-RACK, SWITCH ACTUATOR
45-SPRING, RACK PRELOAD
46-HOUSING, STRG COLUMN
48-WASHER, SPRING THRUST
50-GUIDE, SPRING
51-SPRING, WHEEL TILT
52-RETAINER, SPRING
55-SHAFT ASM, STEERING
56-SHAFT ASM, RACE & UPPER
57-SPHERE, CENTERING
58-SPRING, JOINT PRELOAD
59-SHAFT ASM, LOWER STEERING
61-SCREW, SUPPORT
62-SUPPORT ASM, STRG COL HSG
71-SHROUD, STRG COL HSG
72-JACKET ASM, STRG COL
80-BUSHING ASM, STRG COL JACKET
81-SWITCH ASM, COL LOCK & IGN
82-SCREW, WASH HD (#10-24X.25)
83-ACTUATOR ASM, IGNITION SWITCH
84-ROD, DIMMER SWITCH
85-NUT, HEXAGON (#10-24)
86-STUD, DIMR & IGNITION SW MTG
87-SWITCH ASM, DIMMER

SERVICE KITS
201-SPRING SERV KIT, TILT COLUMN -INCLUDES: 13,14,39,50,51,52
202-COIL SERV KIT, INFL RESTRAINT -INCLUDES: 3,28
203-SPHERE SERV KIT, TILT COLUMN -INCLUDES: 57,58
204-GREASE SERV KIT, (SYNTHETIC)
