Home >> Chevrolet >> 1995 >> Beretta V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Coolant Level Indicator Lamp >> Testing and Inspection

Coolant Level Indicator Lamp: Testing and Inspection

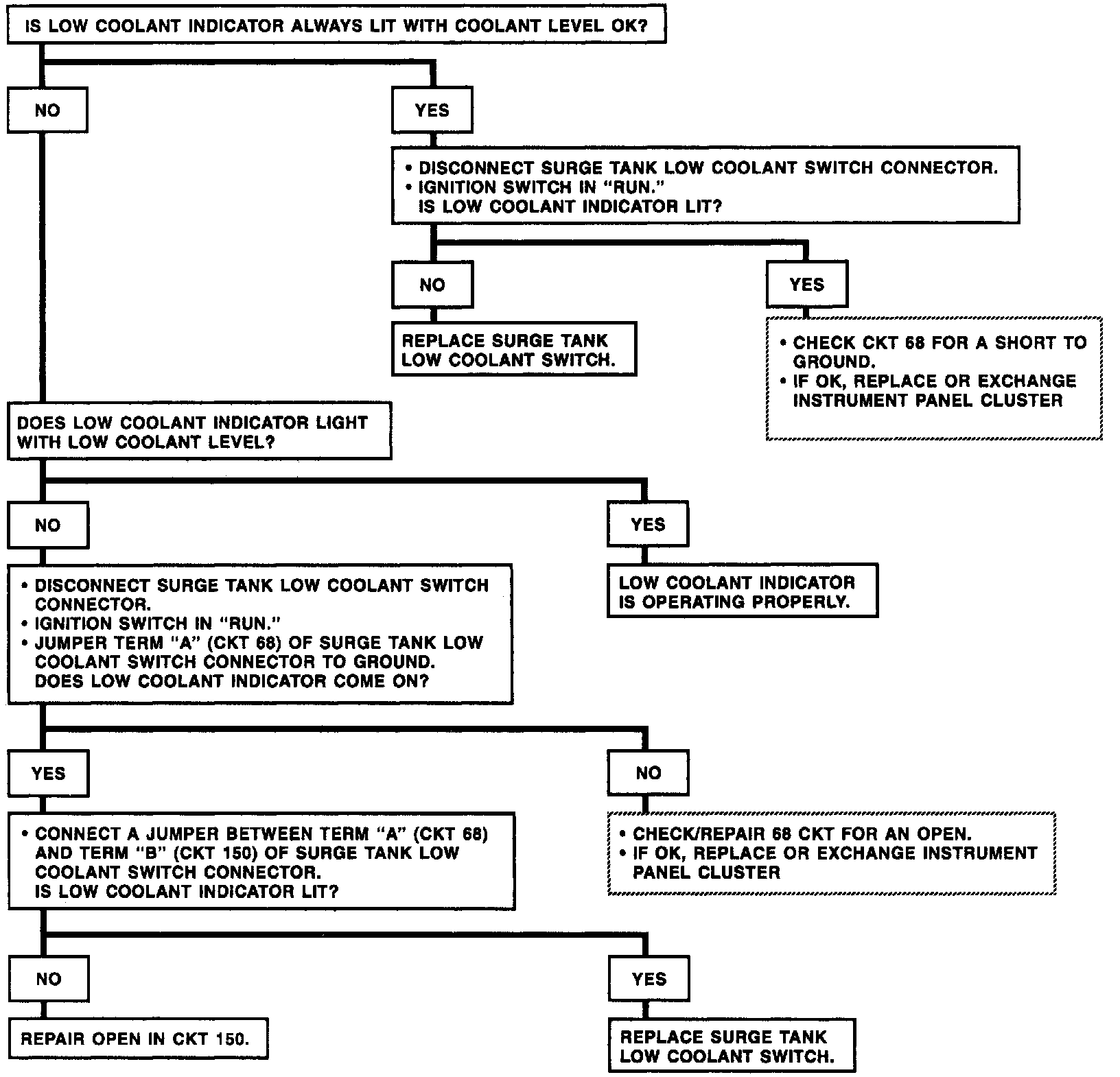

Fig. 39 Chart 3: Low Coolant Indicator Does Not Operate Properly:
