Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
Fuse Block: Application and ID
Front View Of Fuse Block:

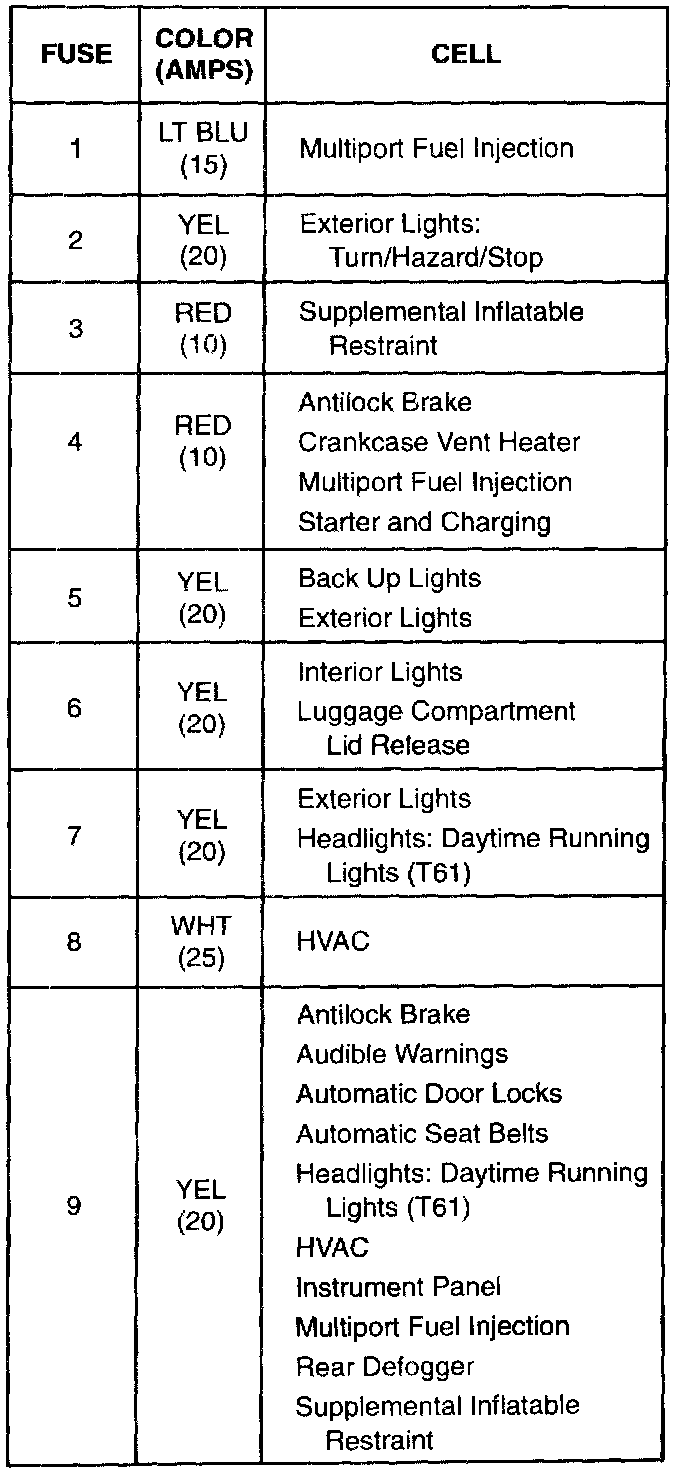

Fuse, Color, Rating And Cell Details:
Fuse, Color, Rating And Cell Details:
