Home >> Chevrolet >> 1995 >> Beretta V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Data Sensors

Data Sensors

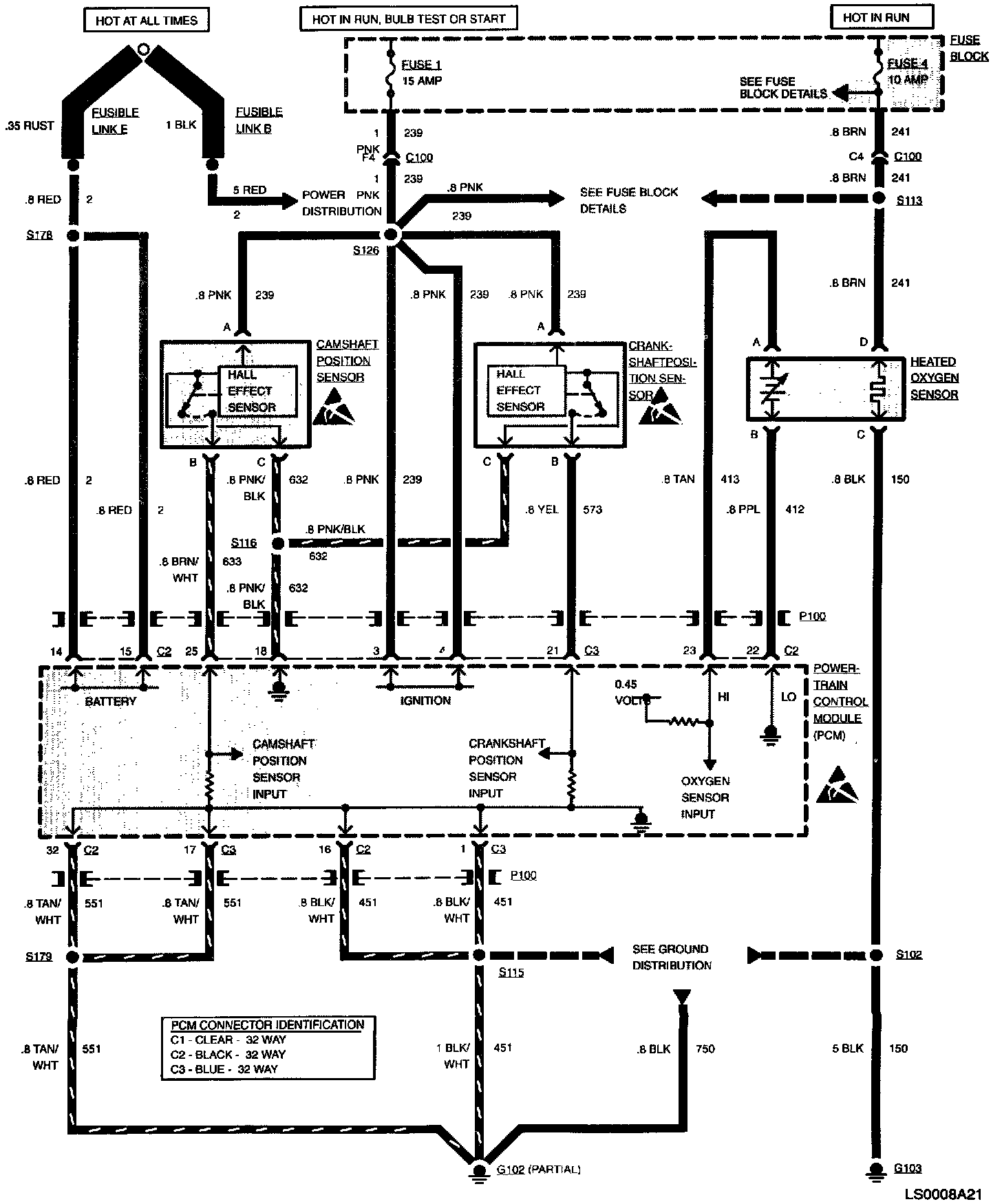

Power, Ground And Engine Data Sensors:



engine Data Sensors:
