Beretta V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
>>
Locations
Fuel Pump: Locations

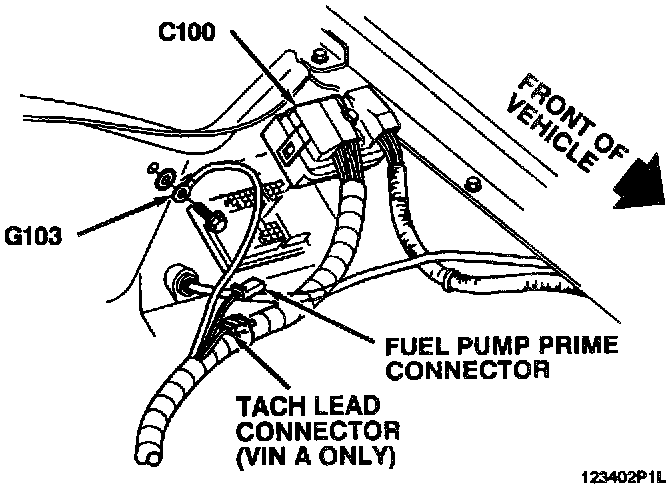

LH Rear Of Engine Compartment:
LH Rear Of Engine Compartment (VIN 4 shown, Others Similar):
