Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1995
>>
Beretta V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

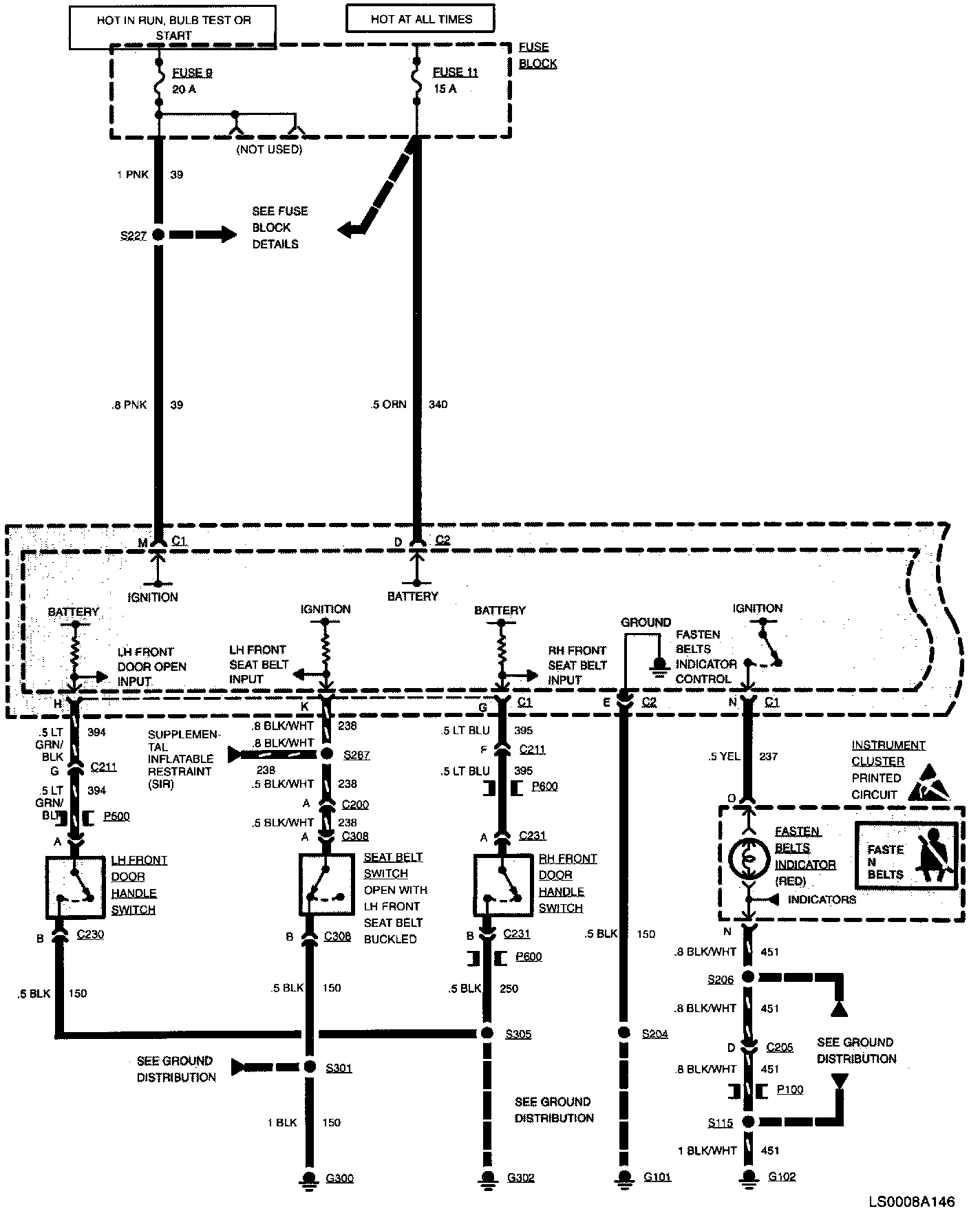

automatic Seat Belts (1 Of 2):
automatic Seat Belts (2 Of 2):
