Pulse Delay Operates Incorrectly or Not at All

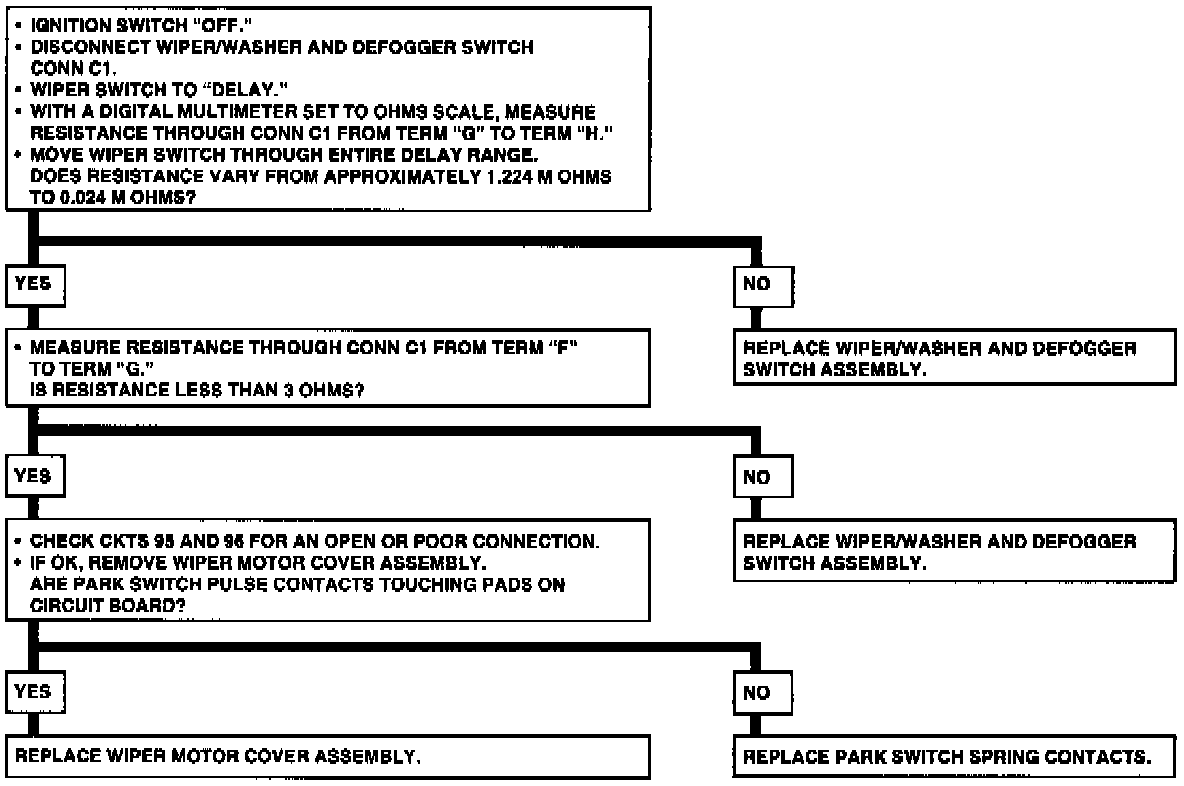

Fig. 47 Test 8: Pulse Delay Operates Incorrectly Or Not At All.:
