Home >> Chevrolet >> 1995 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lamps >> Coupe

Coupe

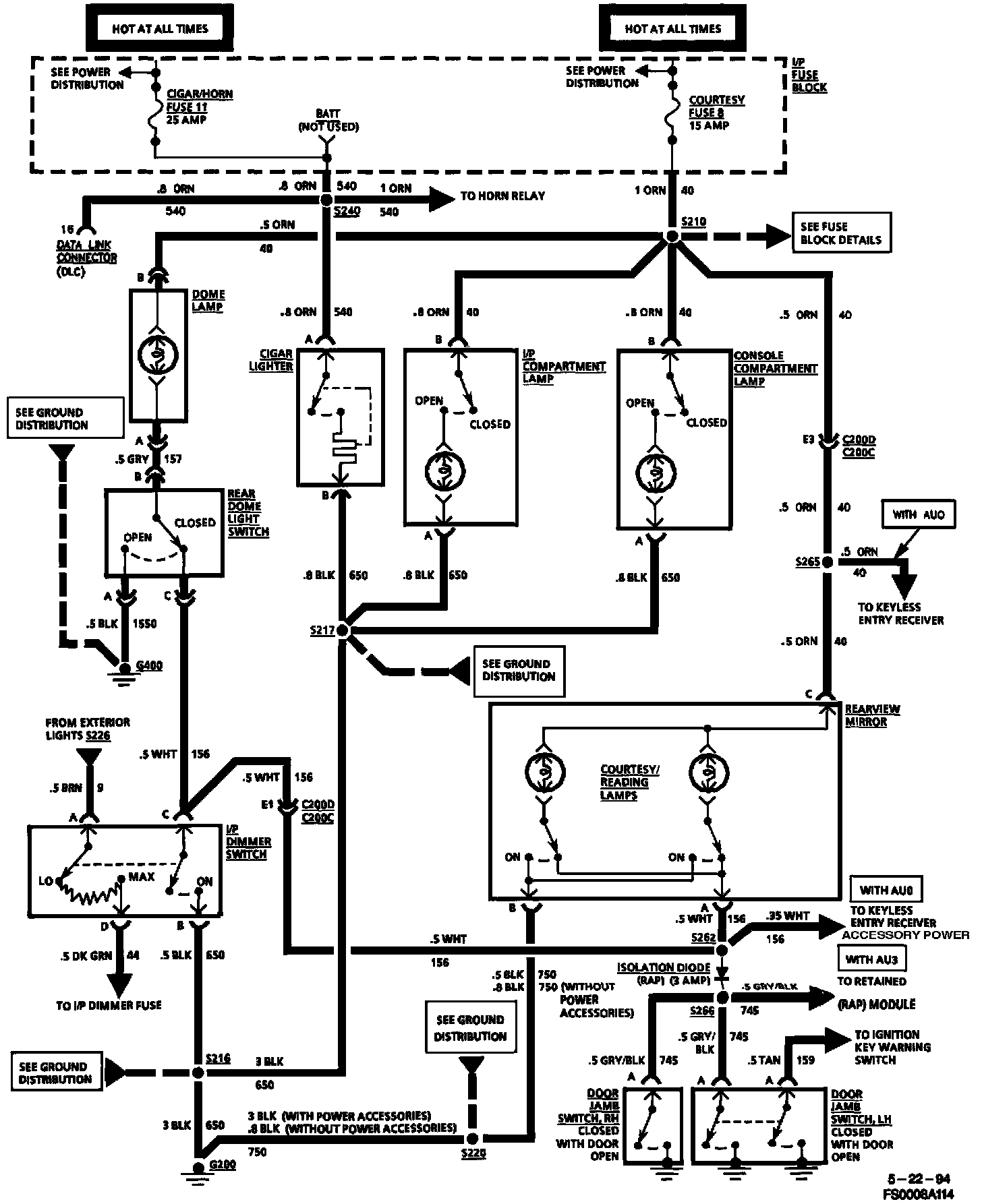

Interior Lights (Coupe):
