Home >> Chevrolet >> 1995 >> Caprice V8-265 4.3L VIN W MFI >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> Cellular Mobile Telephone Microphone Connector (UV8)

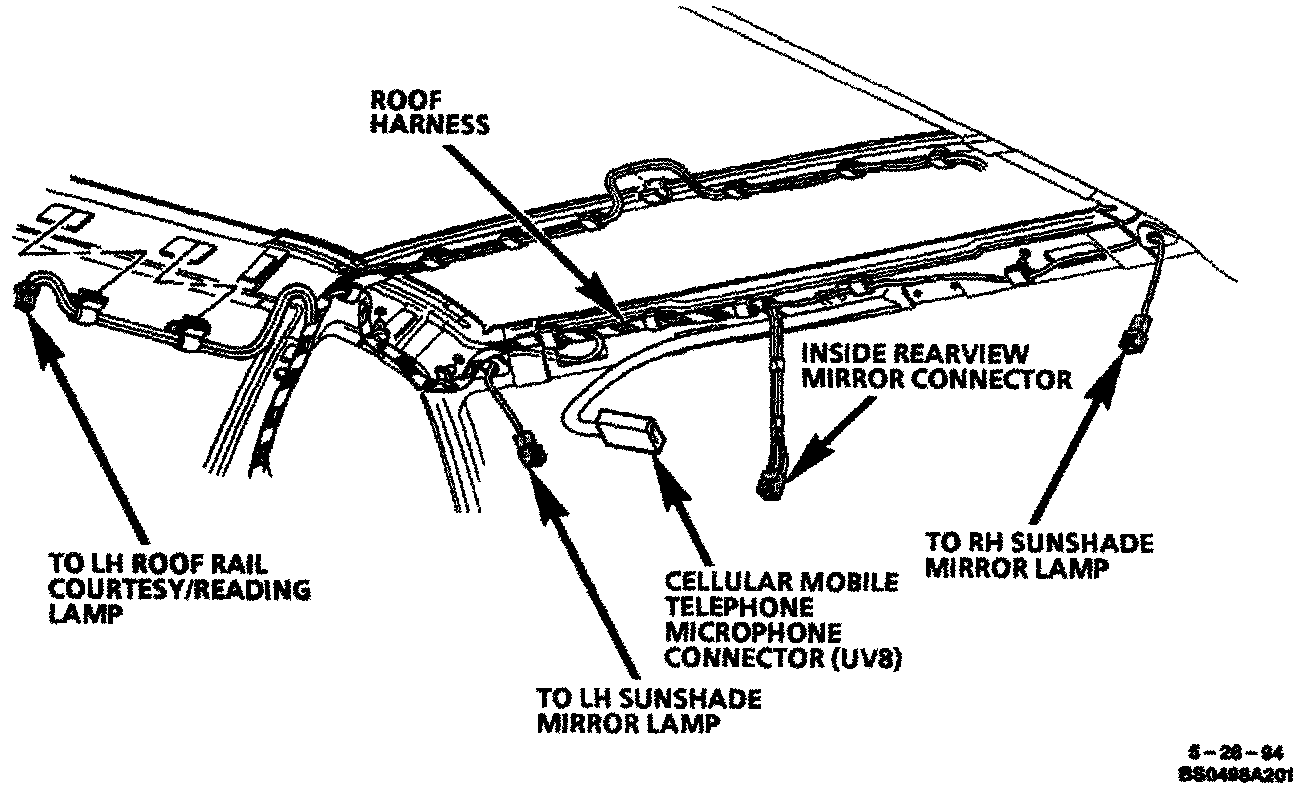

Cellular Mobile Telephone Microphone Connector (UV8)

Front Headliner:
