Home >> Chevrolet >> 1995 >> Caprice V8-265 4.3L VIN W MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Daytime Running Lamp

Daytime Running Lamp

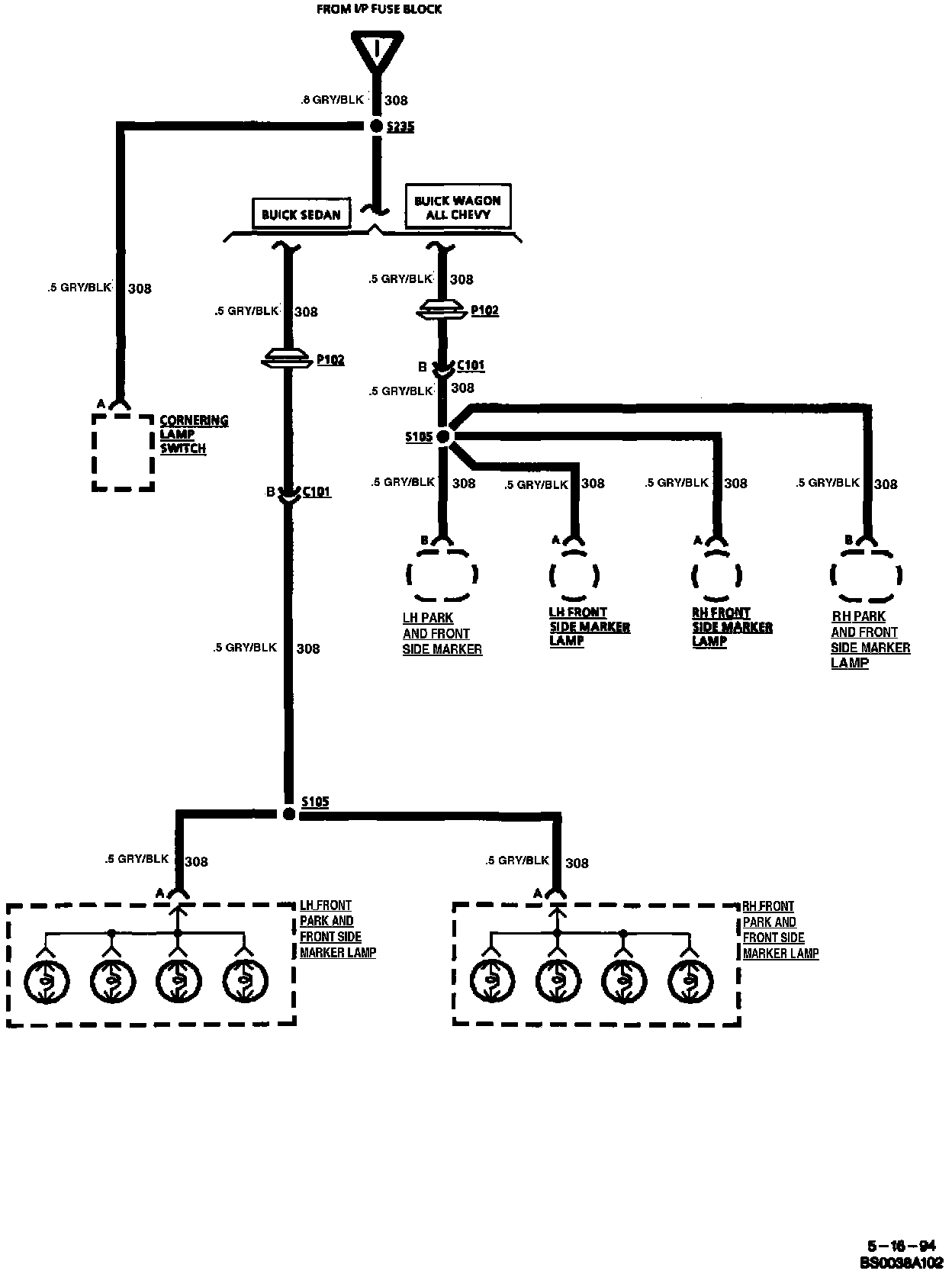

Headlights: Daytime Running Lights (T61) (Part 1 Of 4):

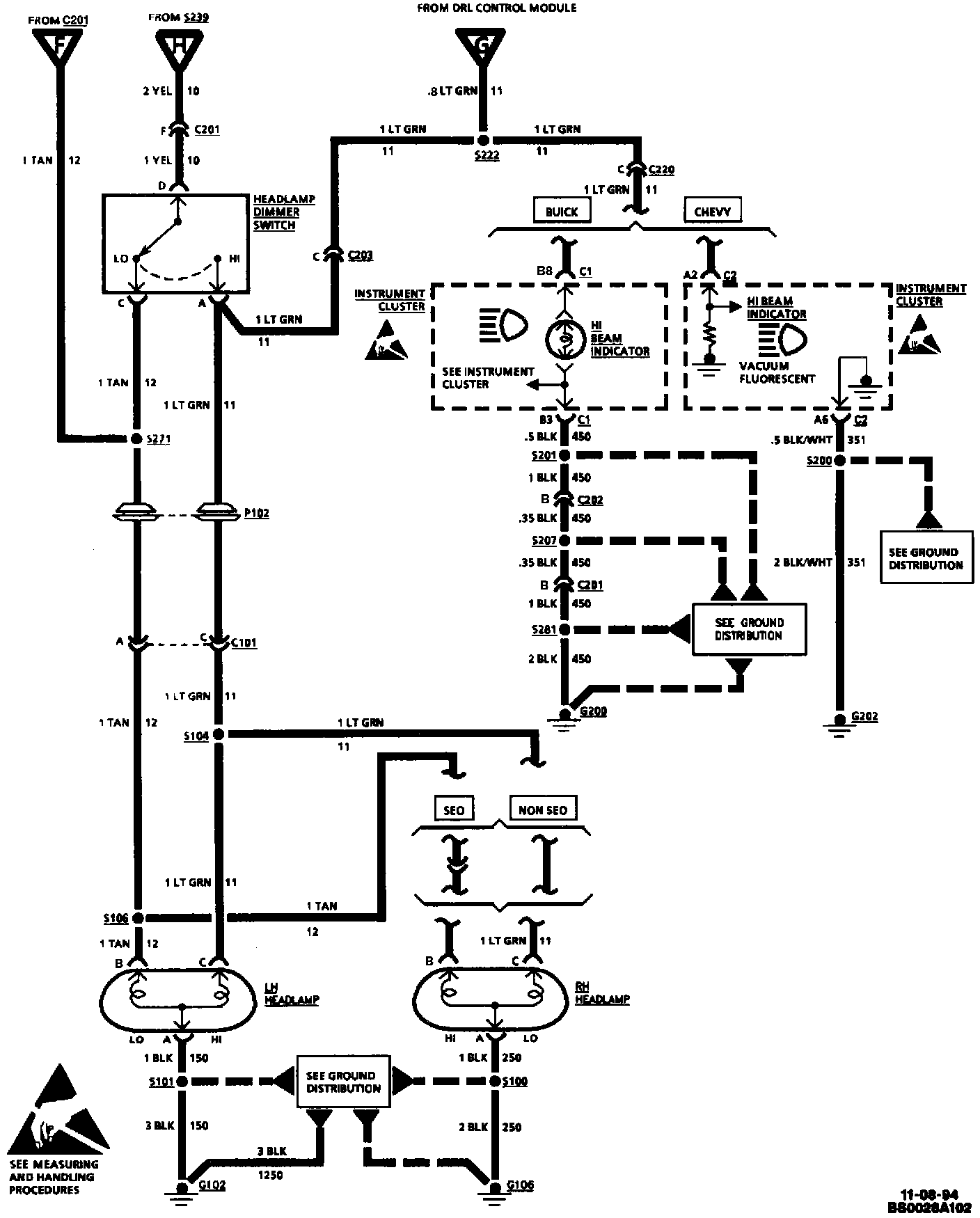

Headlights: Daytime Running Lights (T61) (Part 2 Of 4):

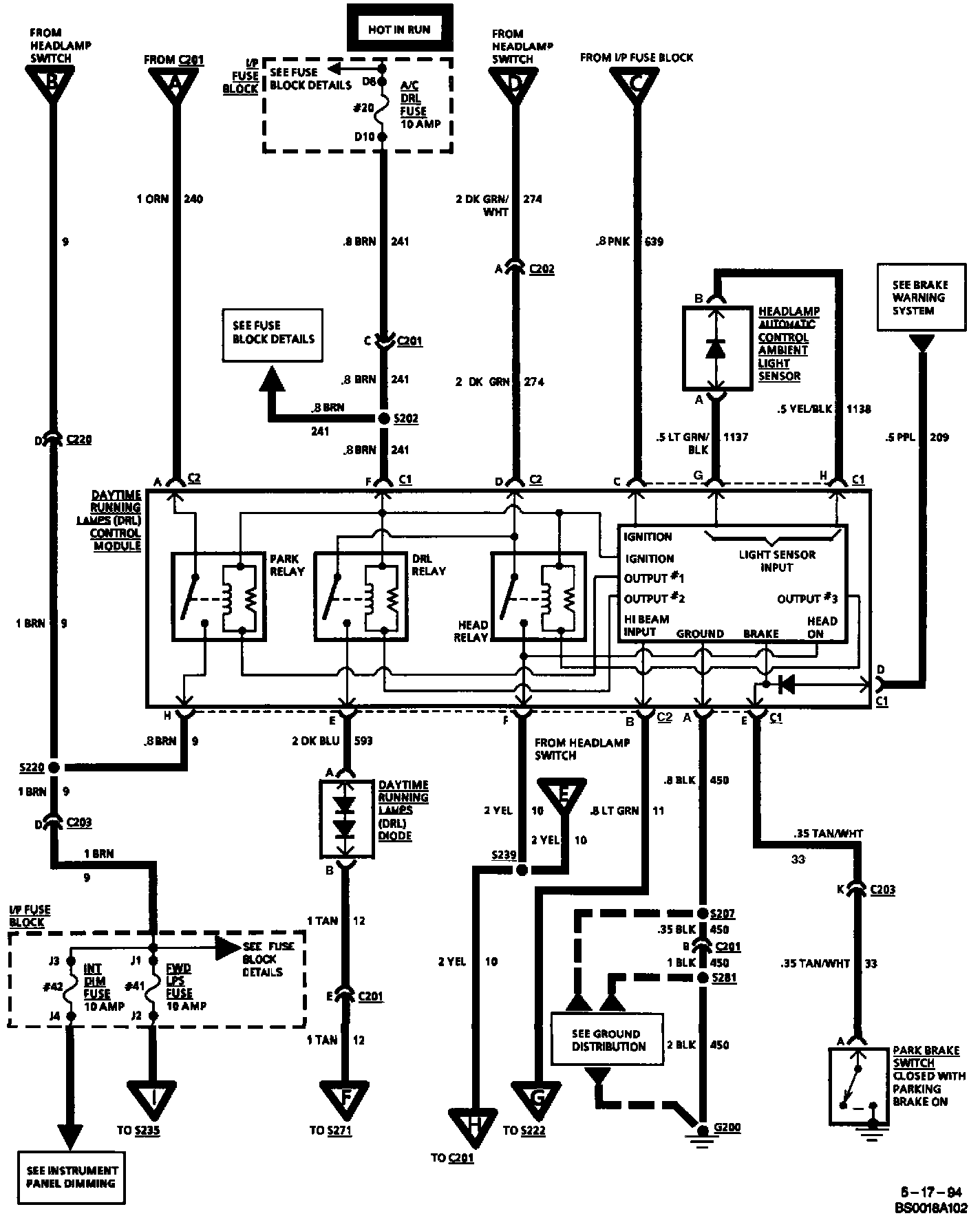

Headlights: Daytime Running Lights (T61) (Part 3 Of 4):

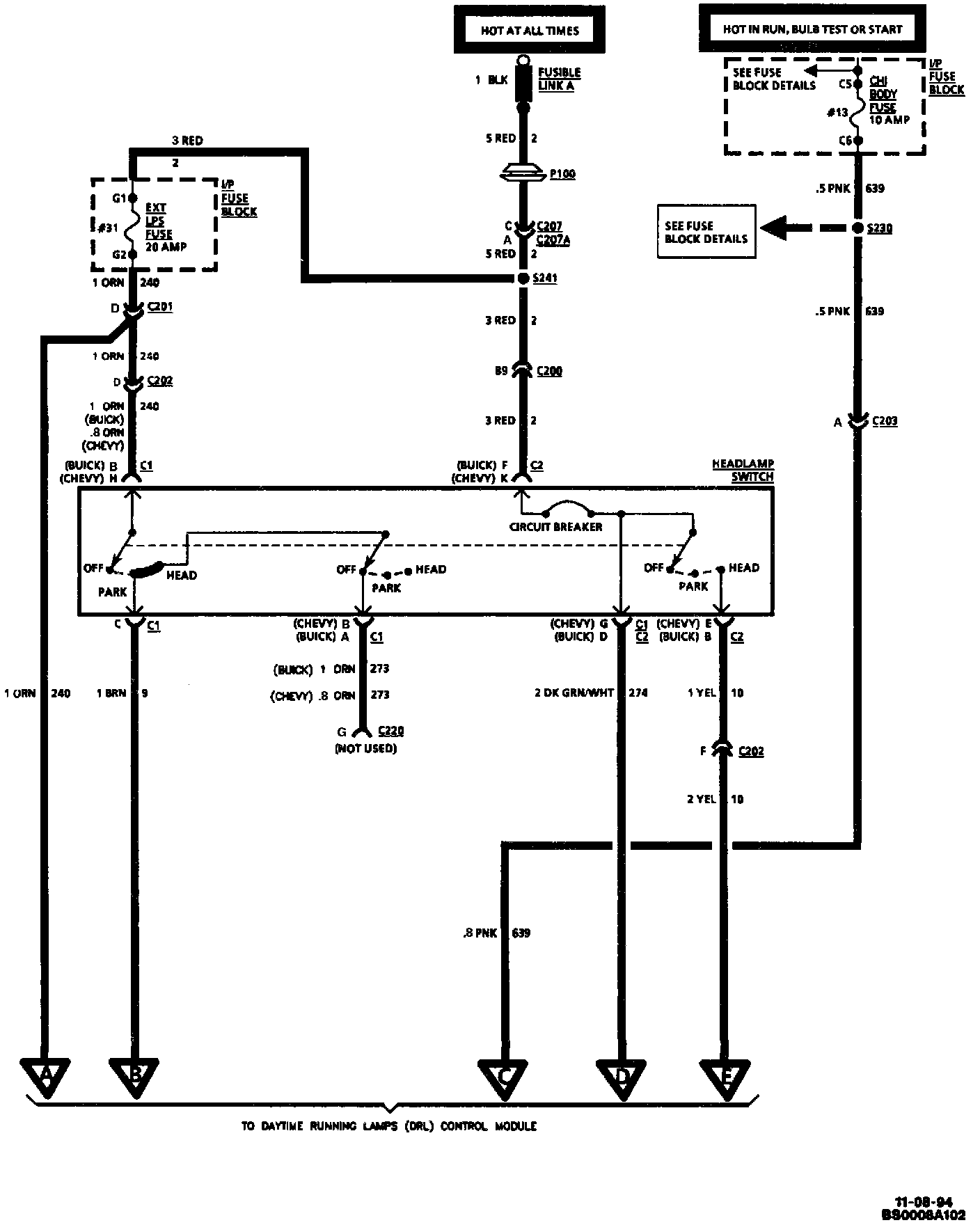

Headlights: Daytime Running Lights (T61) (Part 4 Of 4):
