Home >> Chevrolet >> 1995 >> Caprice V8-265 4.3L VIN W MFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> HVAC Controls

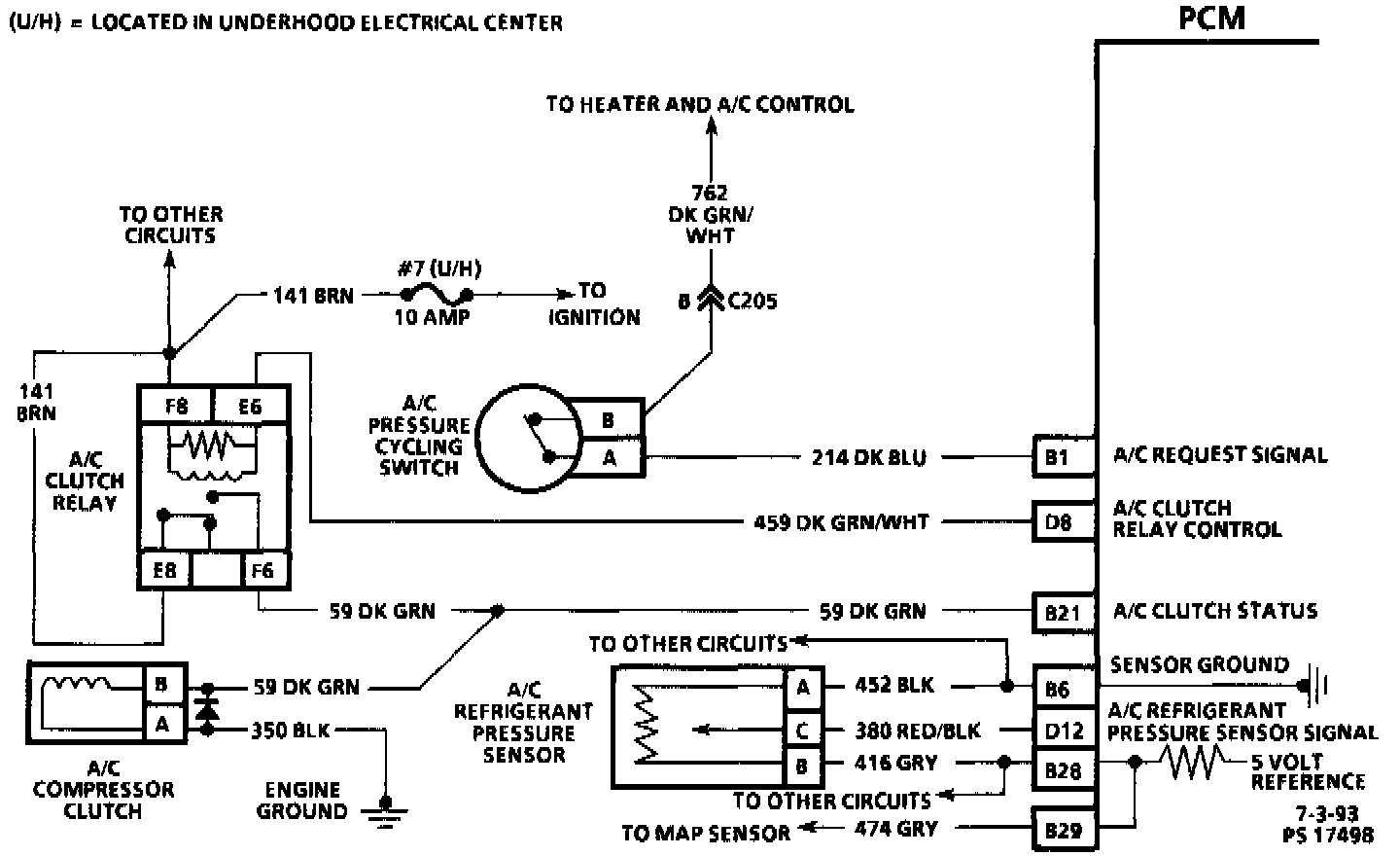

HVAC Controls

DTC 69.:
